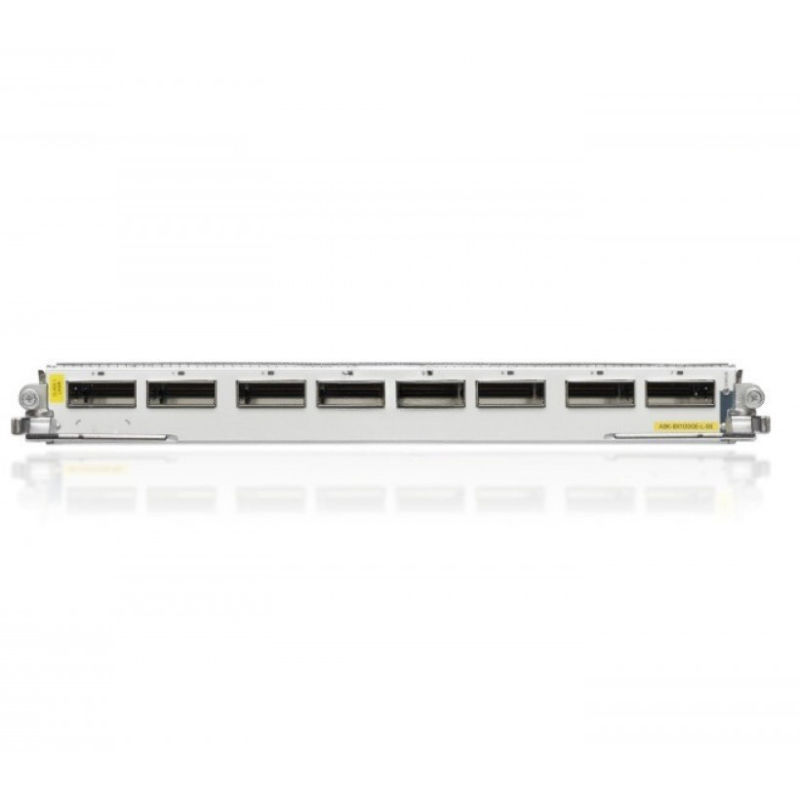

A9K-8X100GE-TR, Cisco ASR 9000 Series Line Card, 8x100GE QSFP28/Trident3 Chipset/No Fan & PSU
SKU: CIS:A9K-8X100GE-TR · MPN: CIS:A9K-8X100GE-TR · Category: Components
Specifications
| Safety | Cisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA: Code of Federal Regulations Laser Safety |
|---|---|
| Options | Each line card is available as either a service edge optimized (enhanced QoS) or packet transport optimized (basic QoS) line card |
| Ethernet | ● 100-Gbps IEEE 802.3ba compliant ● 100 Gigabit Ethernet PHY monitoring ● IEEE 802.x flow control ● Full-duplex operation ● Per-port byte and packet counters for policy drops; oversubscription drops; Cyclic Redundancy Check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets |
| Immunity | Cisco ASR 9000 Series Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations |
| Performance | ● 100-Gbps line-rate throughput per port |
| Port density | 4-ports and 8 ports of 100 Gigabit Ethernet per line card |
| EMC standards | Cisco ASR 9000 Series Routers are designed to meet: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker |
| ETSI standards | Cisco ASR 9000 Series Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard |
| Operating altitude | –60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) |
| Storage temperature | –40 to 158°F (–40 to 70°C) |
| Chassis compatibility | Compatible with the Cisco ASR 9006, ASR 9010, ASR 9904, ASR 9906, ASR 9912 and ASR 9922 chassis |
| Operating temperature | 41 to 104°F (5 to 40°C) |
| Storage (relative humidity) | 5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air |
| Reliability and availability | Line card Online Insertion and Removal (OIR) support without system impact |
| Physical dimensions (H x W x D); weight | 8-port 100 Gigabit Ethernet Line Card: 14.5 x 1.63 x 22.02 in.; 28 lb (est.) (368.3 mm x 41.4 mm x 559.3 mm; 12.7 kg) 4-port 100 Gigabit Ethernet Line Card: 14.5 x 1.63 x 22.02 in.; 28 lb (est.) (368.3 mm x 41.4 mm x 559.3 mm; 12.7 kg) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this A9K-8X100GE-TR, Cisco ASR 9000 Series Line Card, 8x100GE QSFP28/Trident3 Chipset/No Fan & PSU (CIS:A9K-8X100GE-TR) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This A9K-8X100GE-TR, Cisco ASR 9000 Series Line Card, 8x100GE QSFP28/Trident3 Chipset/No Fan & PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the A9K-8X100GE-TR, Cisco ASR 9000 Series Line Card, 8x100GE QSFP28/Trident3 Chipset/No Fan & PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CIS:A9K-8X100GE-TR.
