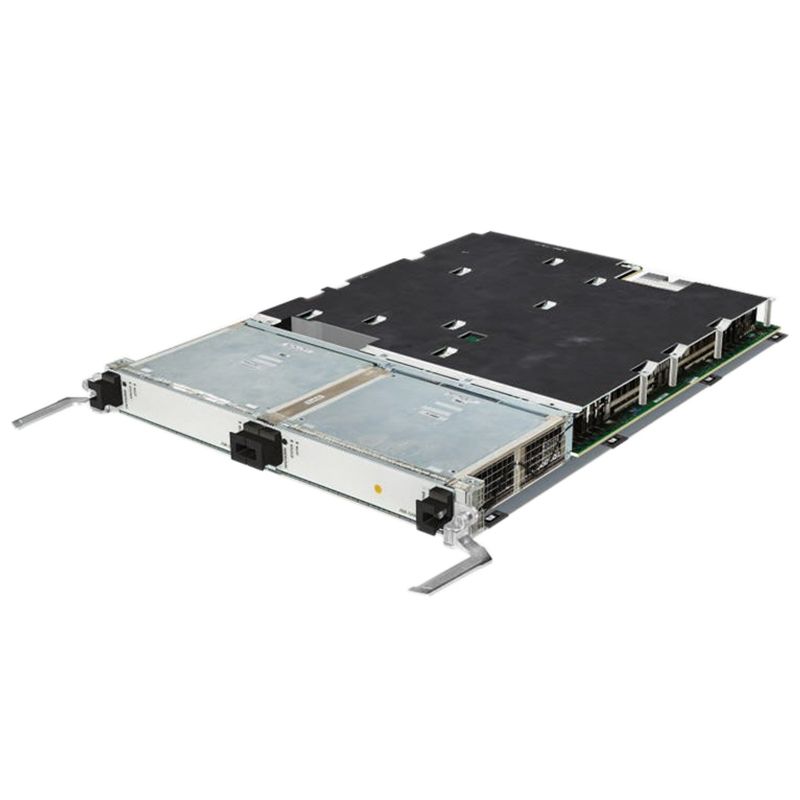

A9K-ISM-100, Cisco ASR 9000 Module, 40G throughput/AVSM ISM/Hot-swappable
Brand: Cisco · SKU: A9K-ISM-100 · MPN: A9K-ISM-100 · Category: Components
Cisco ASR 9000 Module A9K-ISM-100 ASR9000 AVSM ISM 40G
Specifications
| Type | Cisco ASR 9000 Module AVSM ISM 40G |
|---|---|
| Model | A9K-ISM-100 |
| Safety | Designed to meet UL/CSA/IEC/EN 60950-1; IEC/EN 60825 Laser Safety; ACA TS001; AS/NZS 60950; FDA Code of Federal Regulations Laser Safety |
| Weight | kg |
| Immunity | Designed to meet IEC/EN 61000-4-2 Electrostatic Discharge Immunity (8 kV contact, 15 kV air); IEC/EN 61000-4-3 Radiated Immunity (10 V/m); IEC/EN 61000-4-4 Electrical Fast Transient Immunity (2 kV power, 1 kV signal); IEC/EN 61000-4-5 Surge AC Port (4 kV CM, 2 kV DM); IEC/EN 61000-4-5 Signal Ports (1 kV); IEC/EN 61000-4-5 Surge DC Port (1 kV); IEC/EN 61000-4-6 Immunity to Conducted Disturbances (10 Vrms); IEC/EN 61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m); IEC/EN 61000-4-11 Voltage dips, short interruptions, and voltage variations |
| Redundancy | No single point of failure; Fabric redundancy; Power supply redundancy; ISM redundancy (through CDSM) |
| Power Input | Worldwide ranging AC: 200–240 V, 50–60 Hz, 16 A nominal; Worldwide ranging DC: -48 V to -60 V, -54 V, 50 A nominal |
| Product Type | Cisco ASR 9000 Module AVSM ISM 40G |
| EMC Standards | Designed to meet FCC Class A; ICES 003 Class A; AS/NZS 3548 Class A; CISPR 22 (EN 55022) Class A; VCCI Class A; BSMI Class A; IEC/EN 61000-3-2 (Power Line Harmonics); IEC/EN 61000-3-3 (Voltage Fluctuations and Flicker) |
| ETSI Standards | Designed to meet EN 300 386 (Telecommunications Network Equipment EMC); ETSI 300 019 Storage Class 1.1; ETSI 300 019 Transportation Class 2.3; ETSI 300 019 Stationary Use Class 3.1; EN 55022 (Information Technology Equipment Emissions); EN 55024 (Information Technology Equipment Immunity); EN 50082-1 / EN 61000-6-1 (Generic Immunity Standard) |
| NEBS Compliance | Designed to meet SR-3580 NEBS Criteria Levels (Level 3); GR-1089-CORE NEBS EMC and Safety; GR-63-CORE NEBS Physical Protection |
| Power Consumption | Typical: 330 W; Maximum: 450 W |
| Operating Altitude | -60 to 4000 m (up to 2000 m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Operating Humidity | Nominal relative humidity: 10 to 85%; Short-term relative humidity: 5 to 90% (not to exceed 0.024 kg water per kg dry air) |
| Storage Conditions | Storage temperature: -40 to 158°F (-40 to 70°C); Storage relative humidity: 5 to 95% (not to exceed 0.024 kg water per kg dry air) |
| Physical Specifications | Cisco ASR 9000 Series ISM (A9K-ISM-100) occupies one slot; can be inserted in any slot within the chassis. Height: 1.65 in (4.19 cm); Width: 15.86 in (40.28 cm); Depth: 23.91 in (60.73 cm); Weight: 18.35 lb |
| Environmental Conditions | Operating temperature: 32 to 104°F (0 to 40°C); Storage temperature: -40 to 167°F (-40 to 75°C); Relative humidity: 10 to 90%, noncondensing; Regulatory compliance |
| Environmental Specifications | Operating temperature (nominal): 41 to 104°F (5 to 40°C); Operating temperature (short-term): 23 to 131°F (-5 to 55°C). Short-term is not more than 96 consecutive hours and not more than 15 days (360 hours) in 1 year, with no more than 15 occurrences. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this A9K-ISM-100, Cisco ASR 9000 Module, 40G throughput/AVSM ISM/Hot-swappable (A9K-ISM-100) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This A9K-ISM-100, Cisco ASR 9000 Module, 40G throughput/AVSM ISM/Hot-swappable includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the A9K-ISM-100, Cisco ASR 9000 Module, 40G throughput/AVSM ISM/Hot-swappable compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the A9K-ISM-100.
