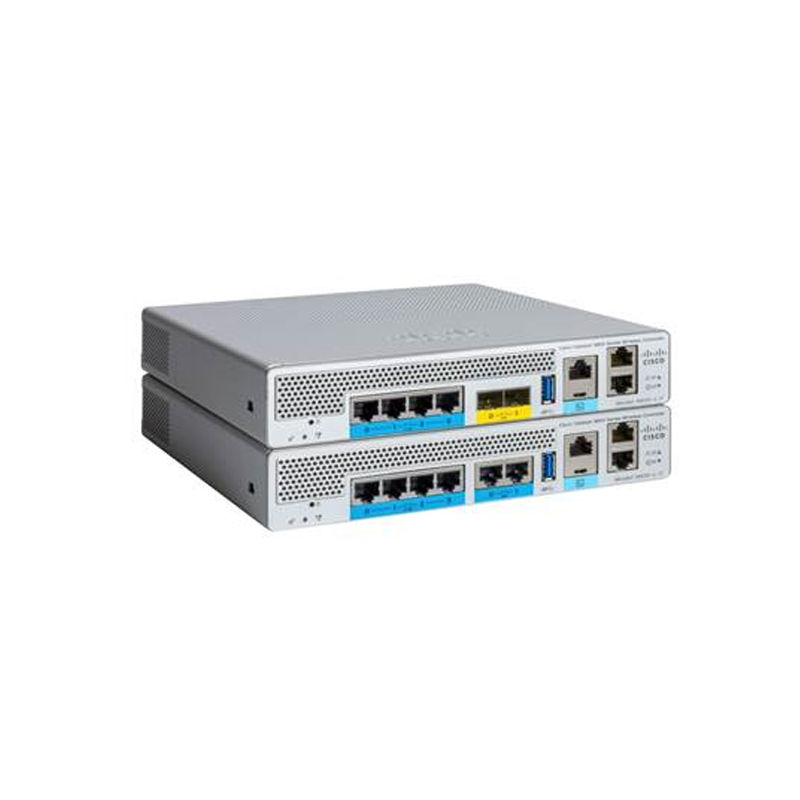

C9800-L-F-K9, Cisco Catalyst 9800-L Wireless Controller, 2xSFP uplink/Up to 250 APs/1 RU
SKU: C9800-L-F-K9 · MPN: C9800-L-F-K9 · Category: Networking
$5,072.88
In Stock • 10 units
Cisco Catalyst 9800-L (Fiber Uplink) Wireless Controller
Specifications
| License | Smart License enabled |
|---|---|
| Software | Cisco IOS XE |
| Wireless | IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave1 and Wave2, 802.11ax |
| Encryption | • Wired Equivalent Privacy (WEP) RC4 40, 104 and 128 bits (both static and shared keys) • Advanced Encryption Standard (AES): Cipher Block Chaining (CBC), Counter with CBC-MAC (CCM), Counter with Cipher Block Chaining Message Authentication Code Protocol (CCMP) • Data Encryption Standard (DES): DES-CBC, 3DES • Secure Sockets Layer (SSL) and Transport Layer Security (TLS): RC4 128-bit and RSA 1024- and 2048-bit • DTLS: AES-CBC • IPsec: DES-CBC, 3DES, AES-CBC • 802.1AE MACsec encryption |
| Management | • Simple Network Management Protocol (SNMP) v1, v2c, v3 • RFC 854 Telnet • RFC 1155 Management Information for TCP/IP-Based Internets • RFC 1156 MIB • RFC 1157 SNMP • RFC 1213 SNMP MIB II • RFC 1350 TFTP • RFC 1643 Ethernet MIB • RFC 2030 SNTP • RFC 2616 HTTP • RFC 2665 Ethernet-Like Interface Types MIB • RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions • RFC 2819 RMON MIB • RFC 2863 Interfaces Group MIB • RFC 3164 Syslog • RFC 3414 User-Based Security Model (USM) for SNMPv3 • RFC 3418 MIB for SNMP • RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs • RFC 4741 Base NETCONF protocol • RFC 4742 NETCONF over SSH • RFC 6241 Network Configuration Protocol (NETCONF) • RFC 6242 NETCONF over SSH • RFC 5277 NETCONF event notifications • RFC 5717 Partial Lock Remote Procedure Call • RFC 6243 With-Defaults capability for NETCONF • RFC 6020 YANG • Cisco private MIBs |
| Form factor | 1RU; half-width chassis allows side-by-side installation in standard 19-in. rack |
| Power supply | 110W, 12VDC, AC/DC adapter |
| Access points | Cisco Aironet® 802.11ac Wave 1 and Wave 2 access points, Cisco Catalyst 9100 802.11ax access points |
| Fixed uplinks | 2x 10G/Multigigabit copper or 2x 10G/Multigigabit fiber |
| Maximum VLANs | 4096 |
| Maximum WLANs | 4096 |
| Deployment modes | Centralized, Cisco FlexConnect ®, and fabric |
| Interoperability | AireOS-based controllers |
| Maximum throughput | 5 Gbps |
| Security standards | • Wi-Fi Protected Access (WPA) • IEEE 802.11i (WPA2, RSN) • RFC 1321 MD5 Message-Digest Algorithm • RFC 1851 ESP Triple DES Transform • RFC 2104 HMAC: Keyed-Hashing for Message Authentication • RFC 2246 TLS Protocol Version 1.0 • RFC 2401 Security Architecture for the Internet Protocol • RFC 2403 HMAC-MD5-96 within ESP and AH • RFC 2404 HMAC-SHA-1-96 within ESP and AH • RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV • RFC 2407 Interpretation for ISAKMP • RFC 2408 ISAKMP • RFC 2409 IKE • RFC 2451 ESP CBC-Mode Cipher Algorithms • RFC 3280 Internet X.509 PKI Certificate and CRL Profile • RFC 4347 Datagram Transport Layer Security • RFC 5246 TLS Protocol Version 1.2 |
| Management interfaces | • Web-based: HTTP/HTTPS • Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port • Cisco Prime Infrastructure |
| Regulatory compliance | Safety: • UL/CSA 60950-1 • IEC/EN 60950-1 • AS/NZS 60950.1 • CAN/CSA-C22.2 No. 60950-1 |
| Dimensions (H x W x D) | 1.58 in. (4.02 cm) x8.5 in. (21.59 cm)x9.06 in. (23.01 cm) |
| Maximum number of clients | 5000 |
| Maximum power consumption | 84.5W (assumes 2pc 2.5W SFP and with 4.5W USB load) |
| Wired, switching, and routing | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T, 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation |
| Maximum number of access points | 250 |
| Data Requests For Comments (RFCs) | • RFC 768 UDP • RFC 791 IP • RFC 2460 IPv6 • RFC 792 ICMP • RFC 793 TCP • RFC 826 ARP • RFC 1122 Requirements for Internet Hosts • RFC 1519 CIDR • RFC 1542 BOOTP • RFC 2131 DHCP • RFC 5415 CAPWAP Protocol Specification • RFC 5416 CAPWAP Binding for 802.11 |
| Environmental conditions supported | Operating temperature: • 32 ° to 104 ° F (0 ° to 40 ° C) Note: The maximum temperature is derated by 1.0 ° C for every 1000 ft (305 m) of altitude above sea level. Nonoperating temperature: • – 13 ° to 158 ° F ( – 25 ° to 70 ° C) Operating humidity: • 10% to 95% noncondensing Nonoperating humidity: • 0% to 95% noncondensing Altitude: • Operating altitude: 0 to 3000 m (0 to 10,000 ft) • Nonoperating altitude: 0 to 12,192 m (0 to 40,000 ft.) Electrical input: • AC input frequency range: 47 to 63 Hz • AC input range: 90 to 264 VAC Maximum power: • 9800-L-C max measured power = 86.9W (with 4.5W USB load) • 9800-L-F max measured power = 84.5W (assumes 2pc 2.5W SFP and with 4.5W USB load) Maximum heat dissipation: • 9800-L-C: 296.4 Btu/hr (with 4.5W USB load) • 9800-L-F: 288.2 Btu/hr (assumes 2pc 2.5W SFP and with 4.5W USB load) Sound power level measure: • Normal: 40 dBA at 25C • Maximum: 42.9 dBA at 40C Power adapter: • Input power: 100 to 240 VAC; 50/60 Hz |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C9800-L-F-K9, Cisco Catalyst 9800-L Wireless Controller, 2xSFP uplink/Up to 250 APs/1 RU (C9800-L-F-K9) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C9800-L-F-K9, Cisco Catalyst 9800-L Wireless Controller, 2xSFP uplink/Up to 250 APs/1 RU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C9800-L-F-K9, Cisco Catalyst 9800-L Wireless Controller, 2xSFP uplink/Up to 250 APs/1 RU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9800-L-F-K9.
