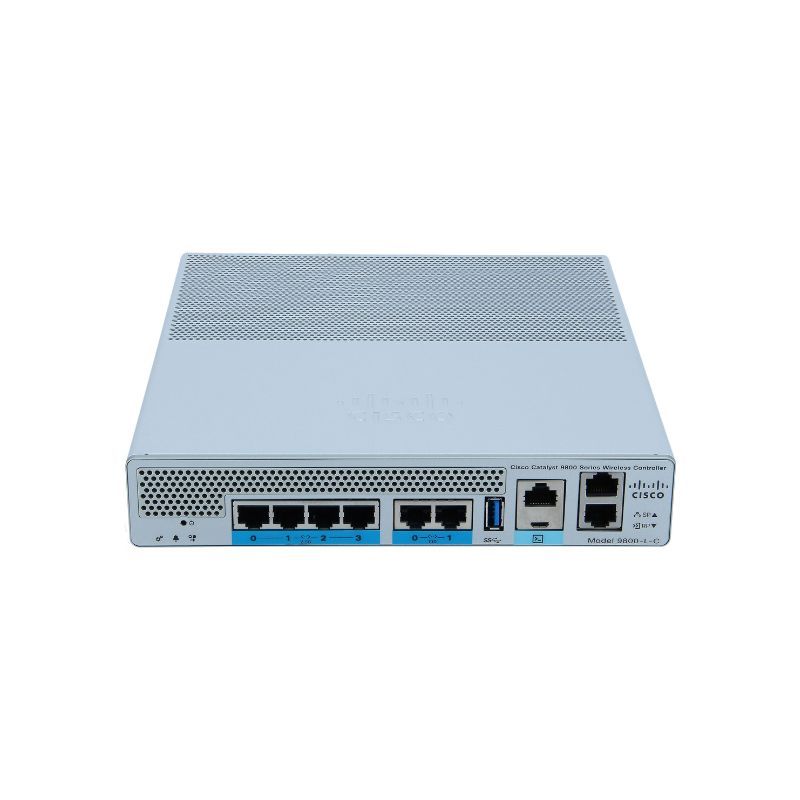

C9800-L-C-K9, Cisco Catalyst 9800-L Wireless Controller, 2x1GE/4x1GE/Up to 250 APs
SKU: C9800-L-C-K9 · MPN: C9800-L-C-K9 · Category: Networking
$5,200.76
In Stock • 10 units
Cisco Catalyst 9800-L wireless controller with copper uplinks, designed for secure, scalable, and resilient enterprise wireless networking.
Specifications
| Wireless | IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave1 and Wave2, 802.11ax |
|---|---|
| Encryption | ● Wired Equivalent Privacy (WEP) RC4 40, 104 and 128 bits (both static and shared keys) ● Advanced Encryption Standard (AES): Cipher Block Chaining (CBC), Counter with CBC-MAC (CCM), Counter with Cipher Block Chaining Message Authentication Code Protocol (CCMP) ● Data Encryption Standard (DES): DES-CBC, 3DES ● Secure Sockets Layer (SSL) and Transport Layer Security (TLS): RC4 128-bit and RSA 1024- and 2048-bit ● DTLS: AES-CBC ● IPsec: DES-CBC, 3DES, AES-CBC ● 802.1AE MACsec encryption |
| Management | ● Simple Network Management Protocol (SNMP) v1, v2c, v3 ● RFC 854 Telnet ● RFC 1155 Management Information for TCP/IP-Based Internets ● RFC 1156 MIB ● RFC 1157 SNMP ● RFC 1213 SNMP MIB II ● RFC 1350 TFTP ● RFC 1643 Ethernet MIB ● RFC 2030 SNTP ● RFC 2616 HTTP ● RFC 2665 Ethernet-Like Interface Types MIB ● RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions ● RFC 2819 RMON MIB ● RFC 2863 Interfaces Group MIB ● RFC 3164 Syslog ● RFC 3414 User-Based Security Model (USM) for SNMPv3 ● RFC 3418 MIB for SNMP ● RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs ● RFC 4741 Base NETCONF protocol ● RFC 4742 NETCONF over SSH ● RFC 6241 Network Configuration Protocol (NETCONF) ● RFC 6242 NETCONF over SSH ● RFC 5277 NETCONF event notifications ● RFC 5717 Partial Lock Remote Procedure Call ● RFC 6243 With-Defaults capability for NETCONF ● RFC 6020 YANG ● Cisco private MIBs |
| Security standards | ● Wi-Fi Protected Access (WPA) ● IEEE 802.11i (WPA2, RSN) ● Wi-Fi Protected Access 3 (WPA3) ● RFC 1321 MD5 Message-Digest Algorithm ● RFC 1851 ESP Triple DES Transform ● RFC 2104 HMAC: Keyed-Hashing for Message Authentication ● RFC 2246 TLS Protocol Version 1.0 ● RFC 2401 Security Architecture for the Internet Protocol ● RFC 2403 HMAC-MD5-96 within ESP and AH ● RFC 2404 HMAC-SHA-1-96 within ESP and AH ● RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV ● RFC 2407 Interpretation for ISAKMP ● RFC 2408 ISAKMP ● RFC 2409 IKE ● RFC 2451 ESP CBC-Mode Cipher Algorithms ● RFC 3280 Internet X.509 PKI Certificate and CRL Profile ● RFC 4347 Datagram Transport Layer Security ● RFC 5246 TLS Protocol Version 1.2 |
| Management interfaces | ● Web-based: HTTP/HTTPS ● Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port ● Cisco Prime Infrastructure |
| Regulatory compliance | Safety: ● UL/CSA 60950-1 ● IEC/EN 60950-1 ● AS/NZS 60950.1 ● CAN/CSA-C22.2 No. 60950-1 |
| Wired, switching, and routing | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T, 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation |
| Data Requests For Comments (RFCs) | ● RFC 768 UDP ● RFC 791 IP ● RFC 2460 IPv6 ● RFC 792 ICMP ● RFC 793 TCP ● RFC 826 ARP ● RFC 1122 Requirements for Internet Hosts ● RFC 1519 CIDR ● RFC 1542 BOOTP ● RFC 2131 DHCP ● RFC 5415 CAPWAP Protocol Specification ● RFC 5416 CAPWAP Binding for 802.11 |
| Environmental conditions supported | Operating temperature: ● 32° to 104°F (0° to 40°C) Note: The maximum temperature is derated by 1.0°C for every 1000 ft (305 m) of altitude above sea level. Nonoperating temperature: ● –13° to 158°F (–25° to 70°C) Operating humidity: ● 5% to 95% noncondensing Nonoperating humidity: ● 0% to 95% noncondensing Altitude: ● Operating altitude: 0 to 3000 m (0 to 10,000 ft) ● Nonoperating altitude: 0 to 12,192 m (0 to 40,000 ft.) Electrical input: ● AC input frequency range: 47 to 63 Hz ● AC input range: 90 to 264 VAC Maximum power: ● 9800-L-C max measured power = 86.9W (with 4.5W USB load) ● 9800-L-F max measured power = 84.5W (assumes 2pc 2.5W SFP and with 4.5W USB load) Maximum heat dissipation: ● 9800-L-C: 296.4 Btu/hr (with 4.5W USB load) ● 9800-L-F: 288.2 Btu/hr (assumes 2pc 2.5W SFP and with 4.5W USB load) Sound power level measure: ● Normal: 40 dBA at 25C ● Maximum: 42.9 dBA at 40C Power adapter: ● Input power: 100 to 240 VAC; 50/60 Hz |
| Authentication, Authorization, and Accounting (AAA) | ● IEEE 802.1X ● RFC 2548 Microsoft Vendor-Specific RADIUS Attributes ● RFC 2716 PPP EAP-TLS ● RFC 2865 RADIUS Authentication ● RFC 2866 RADIUS Accounting ● RFC 2867 RADIUS Tunnel Accounting ● RFC 2869 RADIUS Extensions ● RFC 3576 Dynamic Authorization Extensions to RADIUS ● RFC 5176 Dynamic Authorization Extensions to RADIUS ● RFC 3579 RADIUS Support for EAP ● RFC 3580 IEEE 802.1X RADIUS Guidelines ● RFC 3748 Extensible Authentication Protocol (EAP) ● Web-based authentication ● TACACS support for management users |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this C9800-L-C-K9, Cisco Catalyst 9800-L Wireless Controller, 2x1GE/4x1GE/Up to 250 APs (C9800-L-C-K9) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This C9800-L-C-K9, Cisco Catalyst 9800-L Wireless Controller, 2x1GE/4x1GE/Up to 250 APs includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the C9800-L-C-K9, Cisco Catalyst 9800-L Wireless Controller, 2x1GE/4x1GE/Up to 250 APs compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9800-L-C-K9.
