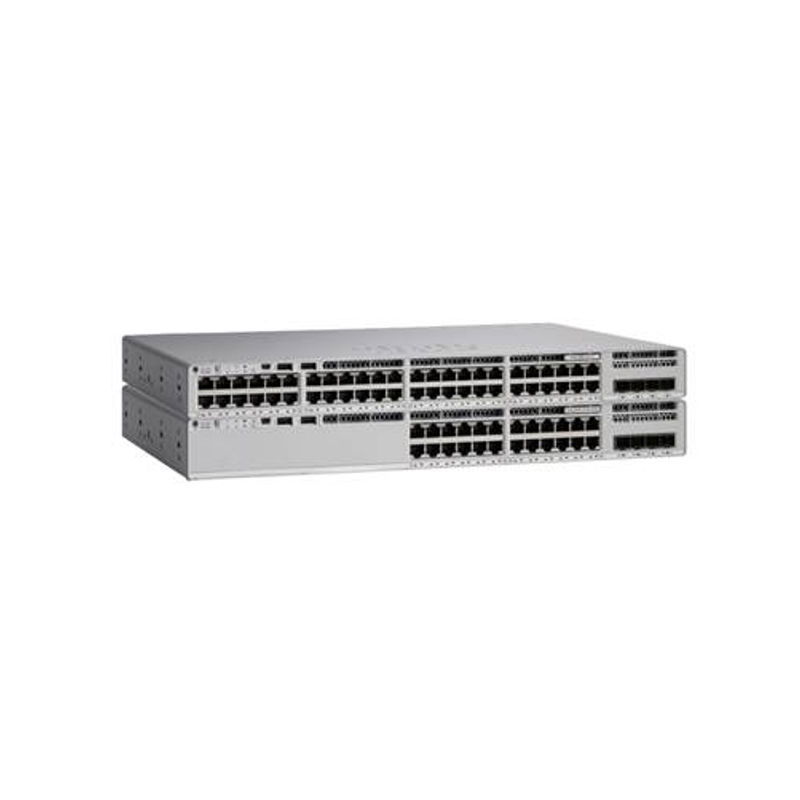

Cisco Catalyst 9200L-24T-4X-A Switch
Brand: Cisco · SKU: C9200L-24T-4X-A · MPN: C9200L-24T-4X-A · Category: Networking
The Cisco C9200L-24T-4X-A is an enterprise-class switch from the Catalyst 9200L Series, designed for secure, scalable, and highly resilient network access deployments in branch offices and mid-sized businesses. It features 24 Gigabit Ethernet data ports (RJ45) and four fixed 10GB SFP+ uplink ports. This model comes with the Network Advantage software license, enabling full Layer 3 routing capabilities. Key performance specifications include a switching capacity of up to 128 Gbps and a forwarding rate of 190.4 Mpps. It supports StackWise-80 technology for stacking up to 80 Gbps bandwidth, includes fixed redundant fans, and ships with one PWR-C5-125WAC primary AC power supply (with slots for a second redundant PSU). The switch has 2 GB DRAM and 4 GB Flash memory, a MAC address table size of 16,000 entries, and supports up to 1024 VLAN IDs. It is a rack-mountable device with dimensions of 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.8 cm).
Specifications
| DRAM | 2 GB |
|---|---|
| Fans | Fixed redundant |
| Flash Memory | 4 GB |
| Uplink Ports | 4 x 10G SFP+ fixed uplinks |
| Downlink Ports | 24 x 10/100/1000 Mbps data ports (RJ45) |
| Switch Version | Network Advantage |
| Forwarding Rate | 190.4 Mpps |
| Stacking Bandwidth | 80 Gbps (StackWise-80) |
| Switching Capacity | 128 Gbps |
| VLAN IDs Supported | 1024 |
| Power Supply Included | 1x PWR-C5-125WAC (Dual Redundant Capable) |
| MAC Address Table Size | 16,000 entries |
| Warranty | Limited Lifetime Warranty - advance parts replacement - lifetime - response time: next business day. |
| Weight | 11.02 lbs |
| Dimensions | 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.8 cm) |
Key Features
The Cisco Catalyst 9200L-24T-4X-A is a fixed-configuration, enterprise-class switch designed for secure and scalable network access. It provides 24 Gigabit Ethernet access ports and four 10G SFP+ uplinks, suitable for branch offices and campus networks. With the Network Advantage license, it offers comprehensive Layer 3 routing capabilities, and it supports features like enhanced security, automation, and policy enforcement.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco Catalyst 9200L-24T-4X-A Switch (C9200L-24T-4X-A) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco Catalyst 9200L-24T-4X-A Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco Catalyst 9200L-24T-4X-A Switch compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9200L-24T-4X-A.
