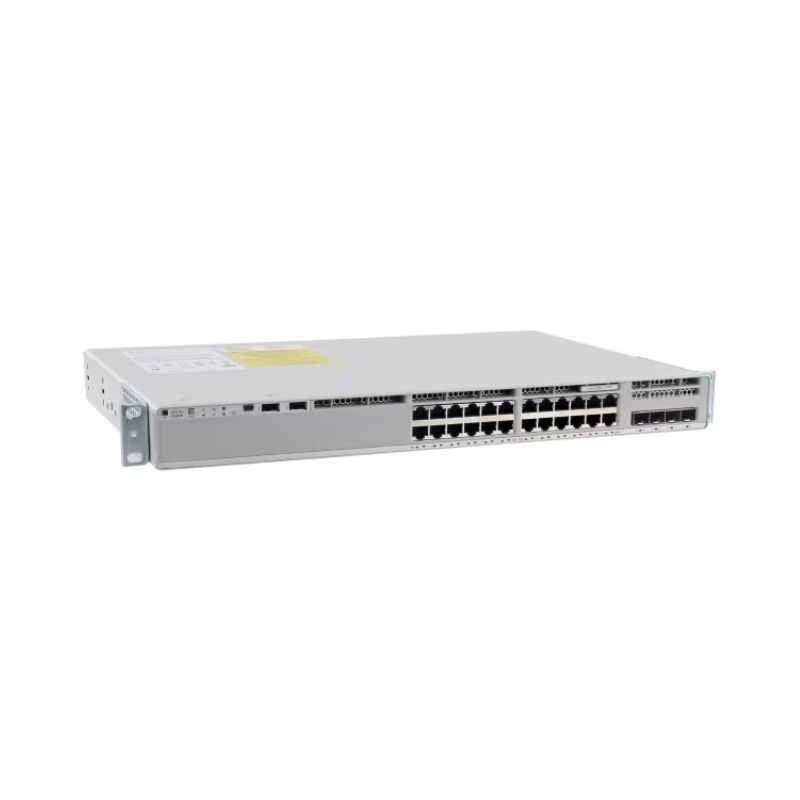

Cisco Catalyst 9200L 24-port Data 4x1G Uplink Switch with Network Essentials
Brand: Cisco · SKU: C9200L-24T-4G-E · MPN: C9200L-24T-4G-E · Category: Networking
The Cisco C9200L-24T-4G-E is a Catalyst 9200L Series Switch featuring 24 data ports (10/100/1000 RJ45) and 4 fixed 1G SFP uplink ports. It runs on Network Essentials software and is designed for enterprise access and distribution layers, offering robust connectivity, security features, and scalability for modern IT needs. It supports Layer 3 capabilities like static routing, RIP, OSPF, and EIGRP. The switch has a switching capacity of 56 Gbps and a forwarding rate of 83.33 Mpps or 41.66 Mpps (depending on the source/configuration). It includes 2 GB DRAM and 4 GB Flash memory and supports stacking via StackWise-80 (80 Gbps bandwidth) or StackWise-160 (up to 160 Gbps bandwidth, though 80Gbps is mentioned with StackWise-80). It ships with one PWR-C5-125WAC power supply and has fixed redundant fans. This is a non-PoE model.
Specifications
| DRAM | 2 GB |
|---|---|
| Software | Network Essentials |
| Flash Memory | 4 GB |
| Model Number | C9200L-24T-4G-E |
| Uplink Ports | 4 x 1G SFP fixed uplinks |
| Layer Support | Layer 3 (Static, RIP, OSPF, EIGRP for routed access) |
| Downlink Ports | 24 x 10/100/1000 RJ45 (Data Only, Non-PoE) |
| Forwarding Rate | 83.33 Mpps or 41.66 Mpps |
| Stacking Bandwidth | 80 Gbps (StackWise-80 mentioned) or up to 160 Gbps (StackWise-160 mentioned) |
| Switching Capacity | 56 Gbps |
| Power Supply Included | 1x PWR-C5-125WAC (2 Slots Total) |
| Warranty | Limited Lifetime Warranty (as per one source) |
| Weight | 15.07 Kg or 7.27 lbs (3.3 kg) |
| Dimensions | 1.73 x 17.5 x 11.3 in (44 x 445 x 288 mm) |
Key Features
The Cisco C9200L-24T-4G-E Catalyst 9200L Switch is a high-performing, enterprise-class network device offering 24 Gigabit Ethernet data ports and 4 fixed 1G SFP uplinks. Running the Network Essentials software, it provides essential features for efficient data transmission, including Layer 3 routing capabilities, enhanced security, and resilience features like fixed redundant fans and support for redundant power supplies. It is designed to simplify complexity, optimize IT, and reduce operational costs through automation capabilities compatible with Cisco DNA Center.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco Catalyst 9200L 24-port Data 4x1G Uplink Switch with Network Essentials (C9200L-24T-4G-E) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco Catalyst 9200L 24-port Data 4x1G Uplink Switch with Network Essentials includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco Catalyst 9200L 24-port Data 4x1G Uplink Switch with Network Essentials compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9200L-24T-4G-E.
