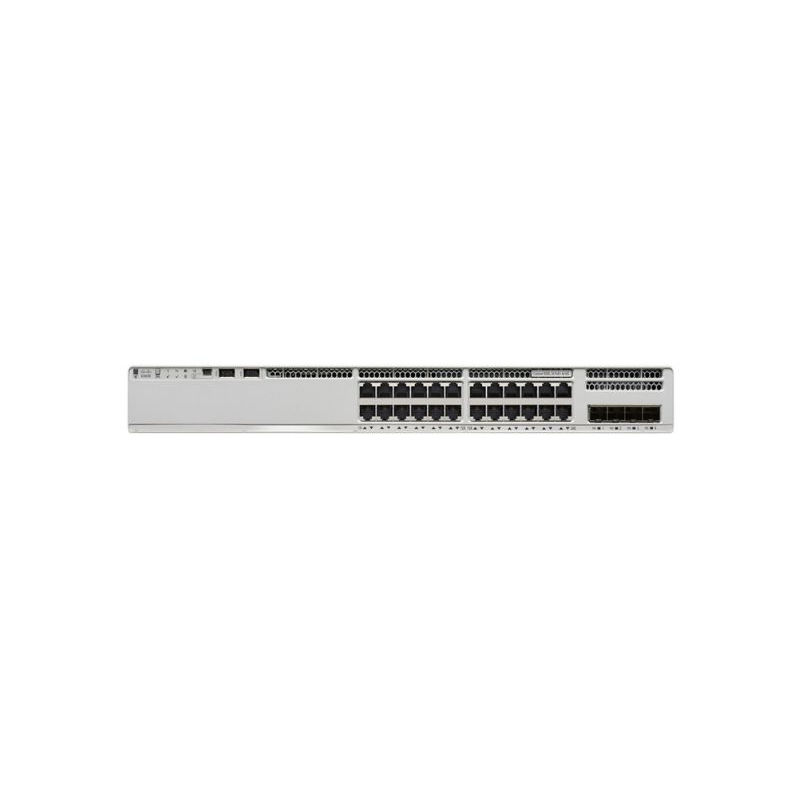

Cisco Catalyst 9200 24-port Data Switch, Network Advantage
Brand: Cisco · SKU: C9200-24T-A · MPN: C9200-24T-A · Category: Networking
The Cisco Catalyst C9200-24T-A is a versatile modular access switch for enterprise campus and branch environments. It is equipped with 24 Gigabit Ethernet (10/100/1000 Mbps RJ-45) data ports and supports modular uplink modules (optional, not included) for 1G, 10G, 25G, or 40G aggregation. This model includes the Network Advantage ("A") license, enabling advanced Layer 3 routing protocols (OSPF, EIGRP, BGP, VXLAN), multicast routing, and high-scale QoS. It features 160 Gbps StackWise-160 technology for stacking up to eight units and delivers 128 Gbps switching capacity and a 95.23 Mpps forwarding rate (or 190.4 Mpps without stacking). The switch includes 4 GB DRAM, 4 GB Flash, a 6 MB packet buffer, and supports 32,000 MAC addresses, 4096 VLANs, and 4 Virtual Networks. It is designed for high resiliency with field-replaceable fan modules (2 included) and supports redundant power supplies (one PWR-C6-125WAC included, second slot optional). It supports Cisco SD-Access and is Plug and Play
Specifications
| DRAM | 4 GB |
|---|---|
| Port Type | 10/100/1000 Base-T RJ-45 (Data only, no PoE) |
| Port Count | 24 |
| Flash Memory | 4 GB |
| Switch Version | Network Advantage |
| Forwarding Rate | 95.23 Mpps (190.4 Mpps with Stacking) |
| Management Ports | 1x RJ45 Console, 1x Gigabit Management, 2x USB, 1x Mini USB |
| Airflow Direction | Front-to-Back Airflow (Standard) |
| Packet Buffer Size | 6 MB |
| Stacking Bandwidth | 160 Gbps (StackWise-160) |
| Switching Capacity | 128 Gbps (288 Gbps with Stacking) |
| Uplink Module Slots | 1 Expansion Module Slot (Module not included) |
| Power Supply Included | 1x PWR-C6-125WAC (2 slots total) |
| MAC Address Table Size | 32,000 entries |
| Warranty | Varies by seller/condition; typically includes manufacturer's warranty information, which should be verified. |
| Weight | 11.02 lbs |
| Dimensions | 1.7 inch (H) x 17.5 inch (W) x 13.8 inch (D) |
Key Features
The Cisco Catalyst 9200-24T-A is a 24-port, managed, rack-mountable switch from the Catalyst 9200 Series, featuring the Network Advantage software license for advanced Layer 3 features. It provides high performance, enhanced security, and features for simplified operations, including support for Cisco SD-Access and StackWise-160 stacking technology. It is designed for enterprise campus and branch deployments requiring robust, scalable access switching.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco Catalyst 9200 24-port Data Switch, Network Advantage (C9200-24T-A) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco Catalyst 9200 24-port Data Switch, Network Advantage includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco Catalyst 9200 24-port Data Switch, Network Advantage compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9200-24T-A.
