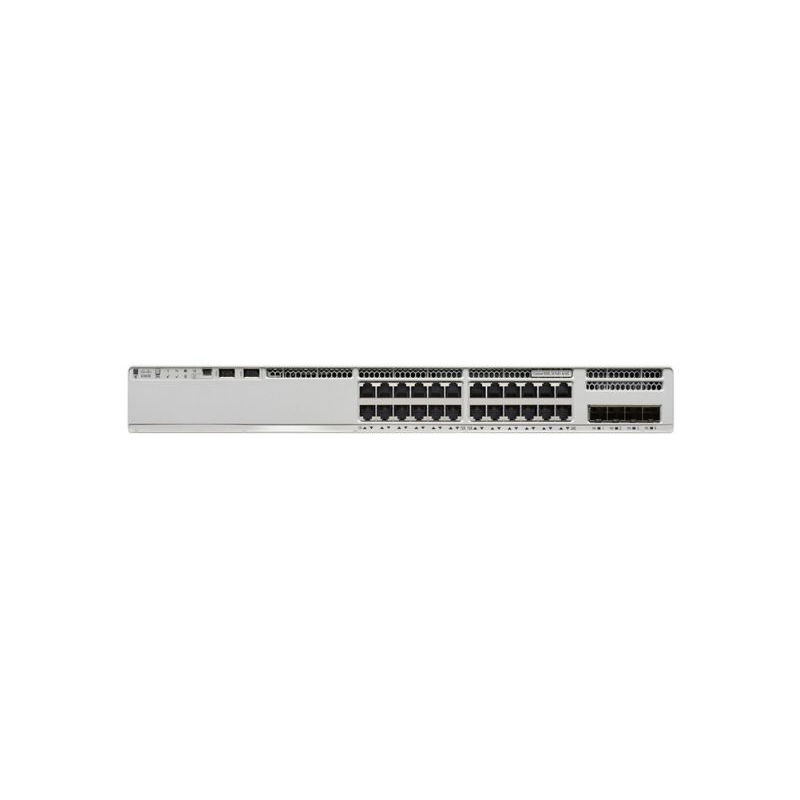

Cisco Catalyst 9200 24-Port PoE+ Switch, Network Advantage
Brand: Cisco · SKU: C9200-24P-A · MPN: C9200-24P-A · Category: Networking
The Cisco Catalyst C9200-24P-A is a robust, modular access switch engineered for enterprise campus and branch networks, running Network Advantage software. It features 24 × 10/100/1000BASE-T PoE+ ports and modular uplink options, typically shipping with 4 x 1G SFP fixed uplinks by default or supporting migration to 10G/25G/40G via C9200-NM modules. It supports StackWise-160 for stacking up to eight switches into a single logical chassis with up to 160 Gbps stacking bandwidth. Key features include high PoE+ support delivering up to 740W total power (with dual power supplies), redundant power supplies and fans for resiliency, Layer 3 capabilities (including OSPF, EIGRP, HSRP, VRRP), and advanced security features like AES-128 MACsec encryption. It is designed for simplified IT management via CLI, Cisco Catalyst Center, or Meraki cloud dashboard, supporting intent-based networking and Cisco SD-Access.
Specifications
| DRAM | 4 GB |
|---|---|
| Routing | Layer 3 |
| VLAN IDs | 4,096 active |
| Form Factor | 1RU Fixed Switch |
| PoE Support | IEEE 802.3at (PoE+); up to 30W per port |
| Flash Memory | 4 GB |
| Jumbo Frames | 9198 bytes |
| Downlink Ports | 24 × 10/100/1000BASE-T PoE+ (RJ45) |
| Forwarding Rate | 95.23 Mpps (or 130 Mpps mentioned in some sources) |
| PoE Budget (Max) | Up to 740W total (with optional second power supply) |
| Software License | Network Advantage |
| Stacking Bandwidth | 160 Gbps (StackWise-160) |
| Switching Capacity | 128 Gbps (or 176 Gbps mentioned in some sources) |
| Uplink Configuration | Modular uplink options (Default with 4 x 1G SFP) |
| MAC Address Table Size | 32,000 entries |
| Warranty | Full Cisco Warranty (when new) |
| Weight | 5.5 kg |
| Dimensions | 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm) - Chassis Dimensions |
Key Features
The Cisco Catalyst 9200-24P-A is a next-generation, modular access switch designed for enterprise networks, supporting intent-based networking. It offers 24 full PoE+ ports, modular uplink flexibility, high resiliency through redundant fans and optional power supplies, and advanced Layer 3 features. Its StackWise-160 capability allows for scalable, unified management.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco Catalyst 9200 24-Port PoE+ Switch, Network Advantage (C9200-24P-A) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco Catalyst 9200 24-Port PoE+ Switch, Network Advantage includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco Catalyst 9200 24-Port PoE+ Switch, Network Advantage compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9200-24P-A.
