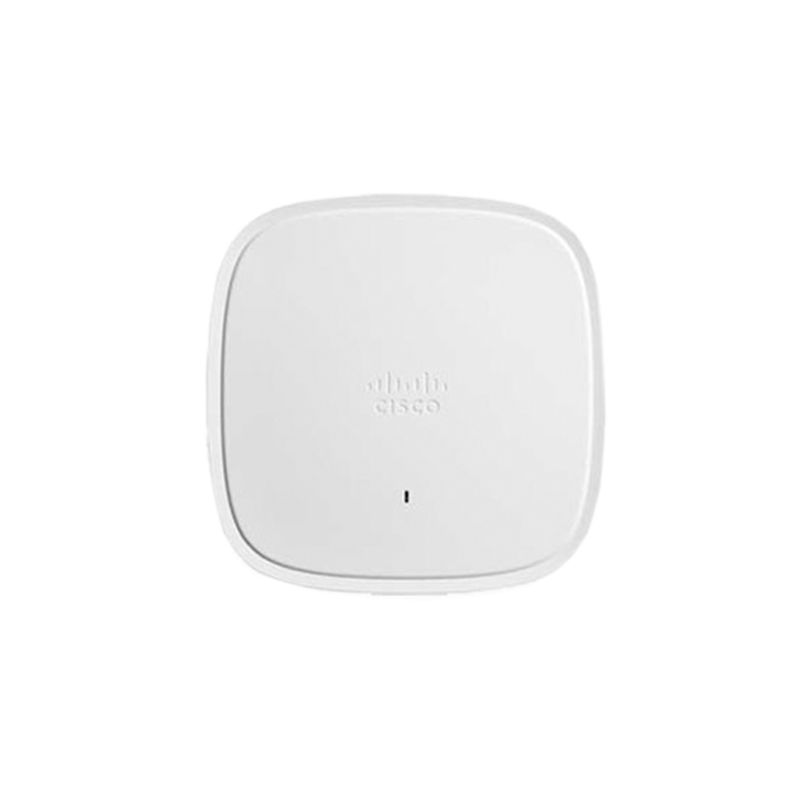

C9120AXI-Z, Cisco Catalyst 9120AX Access Point, Wi-Fi 6/4x4:4 MIMO/Internal antennas

SKU: C9120AXI-Z · MPN: C9120AXI-Z · Category: Networking

C9120AXI-Z, Cisco Catalyst 9120AX Access Point, Wi-Fi 6/4x4:4 MIMO/Internal antennas
$1,265.00
In Stock • 10 units

Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, Z Domain

View Networking Products

Specifications

802.11ac● 4x4 downlink MU-MIMO with four spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support
802.11ax● 4x4 downlink MU-MIMO with four spatial streams ● Uplink/downlink OFDMA ● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support
Software● Cisco Unified Wireless Network Software Release 8.9.x or later ● Cisco IOS ® XE Software Release 16.11 with AP Device Pack, or later
Indicators● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Interfaces● 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ● Management console port (RJ-45) ● USB 2.0 @ 3.75W (enabled via future software)
EnvironmentalCisco Catalyst 9120AXI ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 122°F (0° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft.
System memory● 2048 MB DRAM ● 1024 MB flash
Integrated antennaFlexible radio (either on 2.4GHz or on 5GHz) ● 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth Dedicated 5GHz radio ● 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
Dimensions (W x L x H)● Access point (without mounting brackets): C9120I: 8.5 x 8.5 x 1.7” (21.6 x 21.6 x 4.3 cm)
Smart Antenna Connector● Available on the 9120E and on the 9120P only ● Compact multi RF connector with DART interface ● Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector ● Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio
Input power requirements● 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®) ● Cisco power injector, AIR-PWRINJ6= ● 802.3af PoE ● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)
Available transmit power settings2.4 GHz ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1dBm (0.79mW) ● -4dBm(0.39mW) 5 GHz ● 26 dBm (400 mW) ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1dBm (0.79mW)
External antenna (sold separately)● Cisco Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna ● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios ● Supports Self-Identifiable Antennas (SIA) on one RP-TNC port
Supported wireless LAN controllers● Cisco Catalyst 9800 Series Wireless Controllers ● Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
Frequency band and 20-MHz operating channelsZ (Z regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
802.11n version 2.0 (and related) capabilities● 4x4 MIMO with four spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this C9120AXI-Z, Cisco Catalyst 9120AX Access Point, Wi-Fi 6/4x4:4 MIMO/Internal antennas (C9120AXI-Z) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This C9120AXI-Z, Cisco Catalyst 9120AX Access Point, Wi-Fi 6/4x4:4 MIMO/Internal antennas includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the C9120AXI-Z, Cisco Catalyst 9120AX Access Point, Wi-Fi 6/4x4:4 MIMO/Internal antennas compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the C9120AXI-Z.
