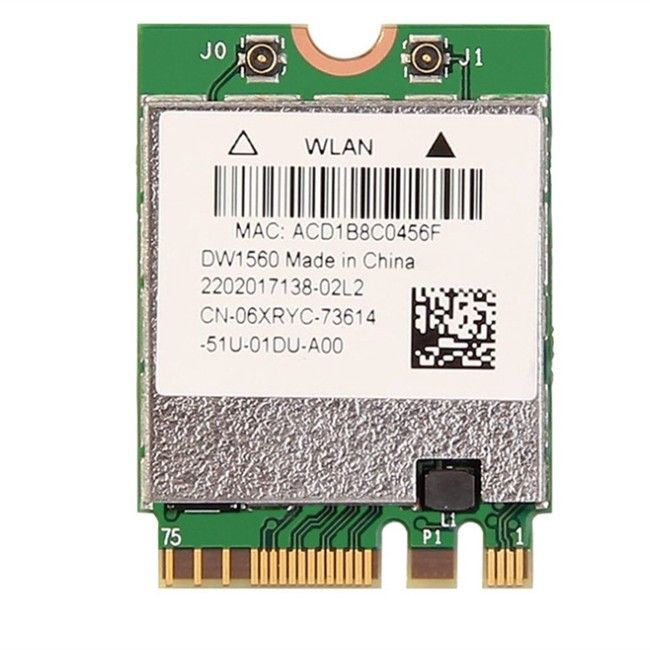

Broadcom BCM94352Z DW1560 M.2 WiFi Card
Brand: Broadcom · SKU: BCM94352Z · MPN: BCM94352Z · Category: Components
The Broadcom BCM94352Z, also known as the DW1560, is a dual-band wireless network card featuring 802.11ac Wi-Fi technology and integrated Bluetooth 4.0. It typically offers speeds up to 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band, totaling up to 1200Mbps aggregate throughput. It uses an NGFF (M.2) Key E interface and is commonly sought after for Hackintosh builds due to its compatibility with macOS and features like Handoff and AirDrop support (though Bluetooth driver injection may be required). It is generally compatible with various laptops from brands like Asus, Dell, Acer, Samsung, Toshiba, and Sony, but some sellers explicitly state it may *not* be compatible with specific IBM/Thinkpad/Lenovo or HP versions. The form factor is often referenced as PC Card Type IV or M.2 2230.
Specifications
| Chipset | Broadcom BCM4352 |
|---|---|
| Bluetooth | BT 4.0 |
| Model/Part No | BCM94352Z / BCM94360NG / DW1560 |
| Frequency Band | Dual Band (2.4GHz/5GHz) |
| Wireless Protocol | 802.11ac/a/b/g/n |
| Interface/Socket Type | NGFF (M.2) Key E / PCIe interface (Type IV form factor) |
| Max. Downstream Data Rate | 1200 Mbps (867Mbps on 5GHz + 300Mbps on 2.4GHz) |
| Warranty | Varies by Seller (e.g., 01 Month/30 days mentioned in some listings) |
| Weight | Approx. 50 grams (0.1 lbs) |
| Dimensions | 22x30mm (M.2 Card Size) |
Key Features
A high-speed, dual-band M.2 WiFi card with integrated Bluetooth 4.0, primarily used for upgrading laptop wireless connectivity, especially popular in Hackintosh systems for its macOS compatibility features.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Broadcom BCM94352Z DW1560 M.2 WiFi Card (BCM94352Z) is 100% genuine Broadcom hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Broadcom BCM94352Z DW1560 M.2 WiFi Card includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Broadcom BCM94352Z DW1560 M.2 WiFi Card compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the BCM94352Z.
