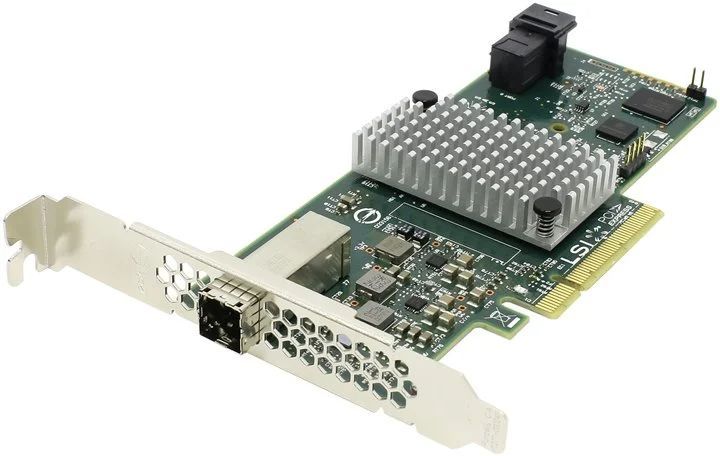

Broadcom 9300-4i4e Single SAS 4 Port 12Gb/s PCI-Express 3.0 x8 SAS Host Bus Adapter
Brand: Broadcom (LSI) · SKU: 9300-4I4E · MPN: 9300-4I4E · Category: Components
The Broadcom 9300-4i4e is a robust Single SAS Host Bus Adapter (HBA) designed for high-speed, efficient connectivity with SAS/SATA devices, featuring four internal and four external 12Gb/s SAS ports. It supports PCIe 3.0 and utilizes the LSI SAS3008 IO controller. It offers exceptional data transfer rates, making it ideal for demanding data center applications. It supports a total of 1024 non-RAID SAS/SATA devices. It comes in a low-profile physical dimension (2.6” X 6.0”) and includes both full-height and low-profile mounting brackets for universal fit. The card has onboard Flash memory for firmware and BIOS. It supports passive copper and active optical (external only) cable support. Some listings indicate it may be a Dell OEM version or sold refurbished with a 90-day warranty, while others suggest a new condition with a 3-year warranty.
Specifications
| MTBF | > 2,800,000 Hours |
|---|---|
| PCI Power | 14.2W (Nominal) |
| Host Bus Type | X8 Lane PCI Express 3.0 |
| IO Controller | LSI SAS3008 |
| Devices Supported | 1024 Non-raid SAS/SATA Devices |
| Operating Voltage | +12V +/-8%, 3.3V +/-9% |
| Fusion MPT Support | Fusion MPT 2.5 |
| Data Transfer Rates | 12Gb/s SAS-3 Compliant |
| External Connectors | 1 x Mini-SAS HD SFF-8644 (4 External Ports) |
| Internal Connectors | 1 x Mini-SAS HD SFF-8643 (4 Internal Ports) |
| Operating Temperature | 0°C To 55°C |
| Warranty | Varies (e.g., 90 Days Refurbished, 3 Years New) |
| Weight | N/A |
| Dimensions | Low Profile (2.6” X 6.0") |
Key Features
The Broadcom 9300-4i4e is a 12Gb/s SAS Host Bus Adapter featuring four internal and four external ports, connected via an 8-lane PCI Express 3.0 interface. It is based on the SAS 3008 controller, providing high-performance connectivity for SAS/SATA drives and tape libraries in enterprise storage environments. It supports a wide range of operating systems, including Microsoft Windows, Linux (SuSE, Red Hat), Solaris, VMware, and FreeBSD.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Broadcom 9300-4i4e Single SAS 4 Port 12Gb/s PCI-Express 3.0 x8 SAS Host Bus Adapter (9300-4I4E) is 100% genuine Broadcom (LSI) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Broadcom 9300-4i4e Single SAS 4 Port 12Gb/s PCI-Express 3.0 x8 SAS Host Bus Adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Broadcom 9300-4i4e Single SAS 4 Port 12Gb/s PCI-Express 3.0 x8 SAS Host Bus Adapter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 9300-4I4E.
