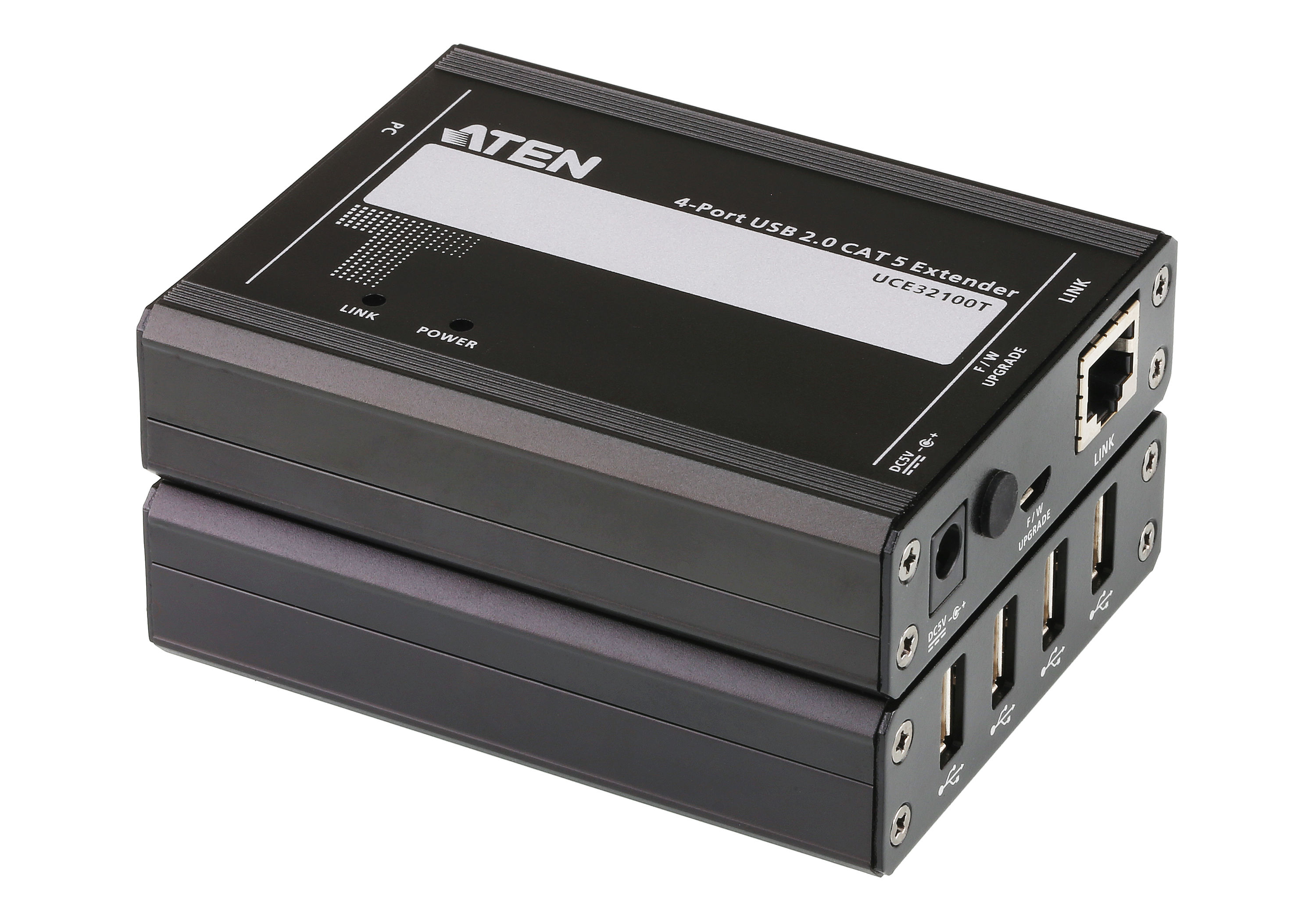

ATEN UCE32100 console extender Console transmitter & receiver 25 Mbit/s
Brand: ATEN · SKU: ATN-UCE32100 · MPN: UCE32100 · Category: Components
ATEN UCE32100, 79 mm, 101.5 mm, 24.4 mm, 210 g, 0 - 50 °C, -20 - 70 °C
Specifications
| Type | Console transmitter & receiver |
|---|---|
| Depth | 101.5 mm |
| Width | 79 mm |
| Height | 24.4 mm |
| Manual | Yes |
| Weight | 210 g |
| Ethernet LAN | Yes |
| Mounting kit | Yes |
| Input voltage | 5 V |
| LED indicators | Yes |
| Product colour | Black |
| Cables included | AC, USB |
| Housing material | Metal |
| Power source type | DC |
| Data transfer rate | 25 Mbit/s |
| AC adapter included | Yes |
| RJ-45 ports quantity | 1 |
| Cable types supported | Cat5 |
| Maximum transfer distance | 100 m |
| Storage temperature (T-T) | -20 - 70 °C |
| Harmonized System (HS) code | 84733020 |
| Operating temperature (T-T) | 0 - 50 °C |
| USB 2.0 Type-A ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Weight | 210 g |
| Dimensions | 79 mm x 101.5 mm x 24.4 mm |
Product Description
The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication. The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc. A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.
Key Features
ATEN UCE32100. Width: 79 mm, Depth: 101.5 mm, Height: 24.4 mm. Cables included: AC, USB. Power source type: DC, Input voltage: 5 V
Technical Deployment Advisory
Target Personnel
Systems Maintenance Techs
Infrastructure Fit
Mid-Lifecycle Capacity Expansion
"The ATN-UCE32100 is the primary choice for Systems Maintenance Techs performing critical Mid-Lifecycle Capacity Expansion tasks. It meets all OEM performance specifications for ATEN systems."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ATEN UCE32100 console extender Console transmitter & receiver 25 Mbit/s (ATN-UCE32100) is 100% genuine ATEN hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ATEN UCE32100 console extender Console transmitter & receiver 25 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ATEN UCE32100 console extender Console transmitter & receiver 25 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ATN-UCE32100.
