Allied Telesis AT-CM3K0S network media converter 1000 Mbit/s
Brand: Allied Telesis · SKU: AT-CM3K0S · MPN: AT-CM3K0S · Category: Components
Allied Telesis AT-CM3K0S, 1000 Mbit/s, 10/100/1000T, 1530000 h, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ah, Wired, 6 W
Specifications
| Safety | UL 60950-1 (cULUS), EN-60950-1 (TUV), EN-60825 |
|---|---|
| Weight | 113 g |
| Full duplex | Yes |
| Certification | FCC, EN-55022, VCCI, C-Tick, CE. |
| MAC address table | 1000 entries |
| Cabling technology | 10/100/1000T |
| Dimensions (WxDxH) | 22 x 73 x 130 mm |
| Operating altitude | 0 - 3048 m |
| Packet transfer speed | 14880, 148800, 1488000 pps |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 1000 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 6 W |
| Compliance industry standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ah |
| Storage relative humidity (H-H) | 5 - 95% |
| Mean time between failures (MTBF) | 1530000 h |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 113 g |
Product Description

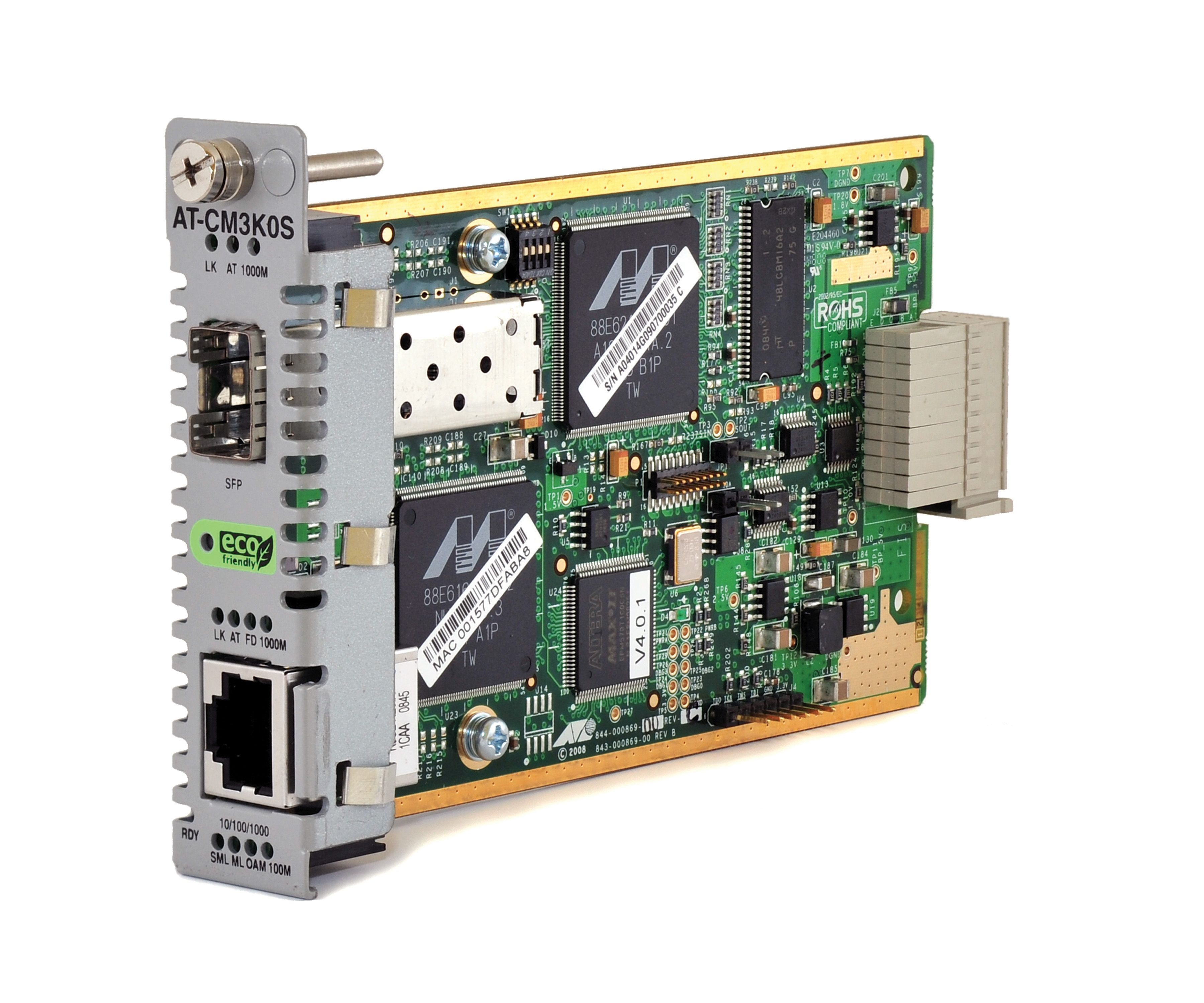

This media and rate converter line card features a 10/100/1000T twisted pair port and an optical SFP port. The twisted pair has an RJ-45 connector and a maximum operating distance of 100 meters (328 feet) when connected to an Ethernet or Fast Ethernet or Gigabit Ethernet device. They operate in full or half-duplex mode, and allow you to build an affordable network, avoiding the cost of terminatiang fiber cables. The AT-CM3K0S has a SFP port supporting both Fast Ethernet and Gigabit operation, allowing a choice of multi/single mode, dual/single fiber SFP modules. - Converts speed as well as media type - Extends Ethernet and Fast Ethernet and Gigabit Ethernet networks - Supports IEEE 802.3ah ‘Ethernet in the First Mile’ - Support MissingLink™ and Smart MissingLink™ - Transparent to IEEE 802.1Q VLAN packets - Jumbo Frame Support - Rate Limiting - Low Power Mode - Supports Dying Gasp - Automatic address learning and aging - Managed, or Unmanaged operation - Auto MDI/MDI-X - Auto-Negotiation (IEEE 802.3u-compliant) - Store and forward data packet handling - Supports 100 and 1000Mbps SFPs - System and port LEDs - Line card for all Converteon™ series chassis - Limited lifetime warranty
Key Features
Allied Telesis AT-CM3K0S. Maximum data transfer rate: 1000 Mbit/s, Cabling technology: 10/100/1000T. Mean time between failures (MTBF): 1530000 h. Compliance industry standards: IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ah. Connectivity technology: Wired. Power consumption (typical): 6 W
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis AT-CM3K0S network media converter 1000 Mbit/s (AT-CM3K0S) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis AT-CM3K0S network media converter 1000 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis AT-CM3K0S network media converter 1000 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AT-CM3K0S.
