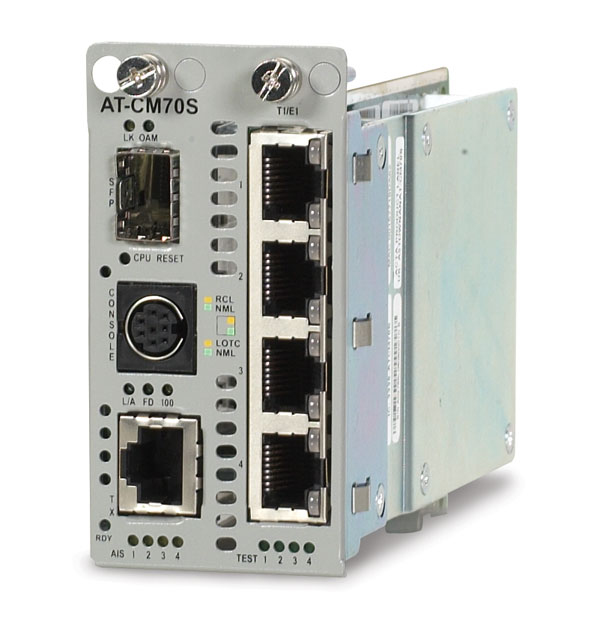

Allied Telesis AT-CM70S network media converter 100 Mbit/s
Brand: Allied Telesis · SKU: 990-002344-00 · MPN: 990-002344-00 · Category: Components
Allied Telesis AT-CM70S, 100 Mbit/s, 670000 h, Wired, 8.5 W, 540 g, 0 - 40 °C
Specifications
| Weight | 540 g |
|---|---|
| Interface | RJ-45 |
| Certification | EN55024, FCC class A, EN55022 class A, VCCI class A, C-Tick, CE, UL60950-1 (cULUS), EN60950-1 (TUV) |
| Dimensions (WxDxH) | 44 x 73 x 130 mm |
| Operating altitude | 0 - 3000 m |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 100 Mbit/s |
| Operating temperature (T-T) | 32 - 104 °F |
| Power consumption (typical) | 8.5 W |
| Storage relative humidity (H-H) | 5 - 95% |
| Mean time between failures (MTBF) | 670000 h |
| Operating relative humidity (H-H) | 5 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 540 g |
Product Description
Overview The AT-CM70S T1/E1 media converter line card is designed to increase the capacity of an existing point-to-point fiber network, by multiplexing up to four T1/E1 TDM channels and one Fast Ethernet channel over a single fiber interface. By the use of a modular fiber SFP (mini-GBIC) uplink, installers can easily deploy the AT-CM70S over a wide range of fiber optics, including multi-mode, single-mode and bi-directional fiber at distances up to 40km. Expanding the Bandwidth Each AT-CM70S media converter card features four T1/E1 twisted pair interfaces, and one 10/100TX copper twisted pair interface. All five data paths are multiplexed onto a single SFPbased fiber interface, for transportation up to 40km.A second AT-CM70S blade at the remote site de-multiplexes the single, and provides the five separate data streams. Deploying the AT-CM70S allows existing installed fiber cables, carrying only a single T1 or E1 channel, to be upgraded to carry more than four times the amount of traffic, without having to install any new fiber cable. All the T1/E1 channels are fully independent, allowing a service provider to expand the capabilitities of an existing fiber, whilst providing WAN services to different customers. Each T1 copper port has a maximum bit rate of 1.544Mbps, and a maximum line length of 6000ft over 100 Ohm balanced cable. Each E1 copper port has a maximum bit rate of 2.048Mbps, and a maximum line length of 2.5km over 120 Ohm balanced twisted pair cable. The 10/100TX Ethernet twisted pair port has an RJ-45 connector and a maximum operating distance of 100 meters (328 feet).
Key Features
Allied Telesis AT-CM70S. Maximum data transfer rate: 100 Mbit/s. Mean time between failures (MTBF): 670000 h. Connectivity technology: Wired. Power consumption (typical): 8.5 W. Weight: 540 g
