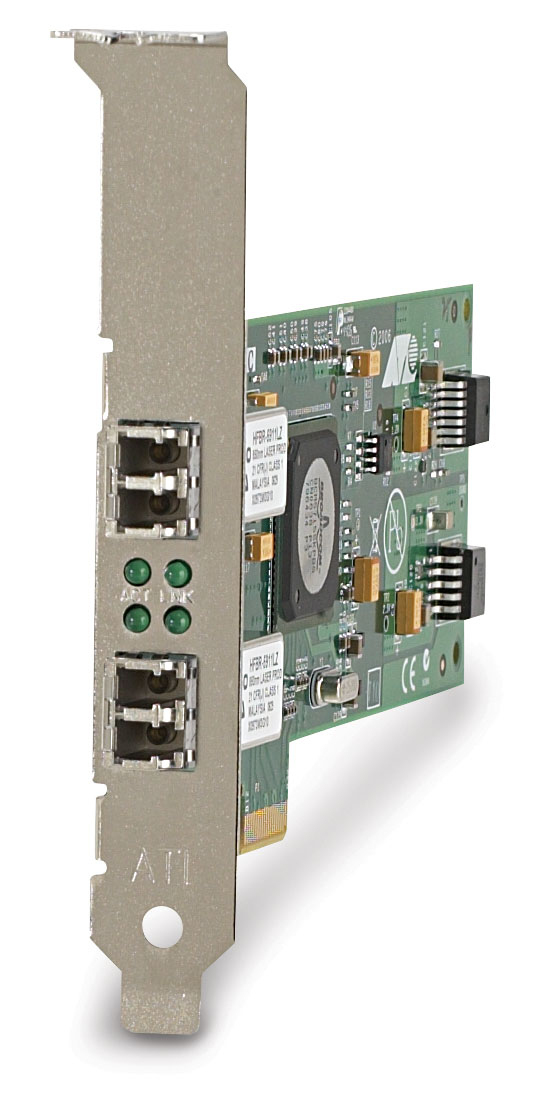

Allied Telesis AT-2972SX/2 1000 Mbit/s
Brand: Allied Telesis · SKU: AT-2972SX/2-901 · MPN: AT-2972SX/2-901 · Category: Components
Allied Telesis AT-2972SX/2, Wired, PCI Express, 1000 Mbit/s
Specifications
| Depth | 168 mm |
|---|---|
| Width | 68 mm |
| Weight | 700 g |
| Link/Act LED | Yes |
| Certification | Microsoft RoHS UL, FCC/EN55022 Class B, TUV, EN55024, CE, C-TICK, VCCI |
| Host interface | PCI Express |
| Power requirements | 3.3V |
| Jumbo frames support | Yes |
| Management protocols | WMI, ACPI 1.1, PXE 2.1 Boot ROM, SNMP |
| Connectivity technology | Wired |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 9.9 W |
| Compatible operating systems | Vista Vista 64-bit Windows XP Windows XP 64-bit Windows 2003 Windows 2003 64-bit Windows 2000 NDIS2 NetWare 6.x Linux 2.4 Linux 2.6 Windows NT 4 Solaris x86 Solaris Sparc 32-bit Solaris Sparc 64-bit NetWare 5.x |
| Compliance industry standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad |
| Operating relative humidity (H-H) | 5 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 700 g |
| Dimensions | 68 mm x 168 mm |
Product Description
More Bandwidth with PCI-Express Interface The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency. Other benefits are capability and low power consumption. High Reliability The AT-2972SX/2 Gigabit interface card comes with a comprehensive Microsoft Windows utility that performs detailed tests, diagnostics and analysis. Advanced Manageability The priority queuing offered by AT-2972SX/2 can help you set-up your network based on your own needs.The comprehensive diagnostics and configuration software suite provides system adminstrators and engineers with a profound tool to analyze the interface card to check specific data. Dual Port Fiber Interfaces Two fiber port interfaces (LC connectors) give you maximum protection against failure. If one link goes down, the other keeps sending data to prevent network down time.The two ports can also be trunked to increase bandwidth in server type applications.
Key Features
Allied Telesis AT-2972SX/2. Connectivity technology: Wired, Host interface: PCI Express. Maximum data transfer rate: 1000 Mbit/s
