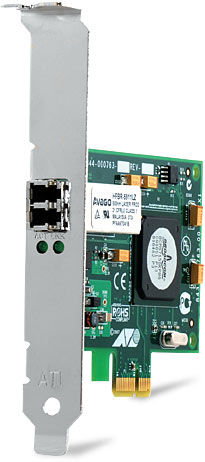

Allied Telesis AT-2972SX-901 Internal Ethernet 1000 Mbit/s
Brand: Allied Telesis · SKU: 990-002306-901 · MPN: 990-002306-901 · Category: Components
Allied Telesis AT-2972SX-901, Internal, Wired, PCI, Ethernet, 1000 Mbit/s
Specifications
| Width | 95 mm |
|---|---|
| Height | 68 mm |
| Weight | 700 g |
| Chipset | Broadcom BCM 5715S |
| Internal | Yes |
| Interface | Ethernet |
| Link/Act LED | Yes |
| Power supply | 9.2 W |
| Certification | RoHS, UL, FCC/EN55022 Class B, TUV, EN55024, CE, C-TICK, VCCI |
| Host interface | PCI |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Compatible operating systems | Vista, Vista 64-bit, Windows XP, Windows XP 64-bit, Windows 2003, Windows 2003 64-bit, Windows 2000, NDIS2, NetWare 6.x, Linux 2.4, Linux 2.6 |
| Operating relative humidity (H-H) | 5 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 700 g |
| Dimensions | 95 mm x 68 mm |
Product Description
- Virtual LANs with 802.1Q VLAN tagging, load balancing and priority queuing for network optimization - CPU Task Offload reduces CPU utilization level - Network administrator support with remote boot (PXE 2.0) - Redundant switch failover helps maintain network connections - Bring a sleeping computer to full power remotely with ACPI/Wake On LAN (WOL) support - Virtual Cable Tester (VCT) for cable fault diagnostics - Jumbo Frames support up to 9KB - TCP, UDP & IP checksum generation and check packet filtering based on checksum errors - Support for all popular operating systems, including Sun Solaris, makes integration easy - Link aggregation offers higher capacity and availability
Key Features
Allied Telesis AT-2972SX-901. Internal. Connectivity technology: Wired, Host interface: PCI, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis AT-2972SX-901 Internal Ethernet 1000 Mbit/s (990-002306-901) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis AT-2972SX-901 Internal Ethernet 1000 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis AT-2972SX-901 Internal Ethernet 1000 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 990-002306-901.
