Allied Telesis AT-2916SX/LC Internal 1000, 100
Brand: Allied Telesis · SKU: AT-2916SX/LC-901 · MPN: AT-2916SX/LC-901 · Category: Components
Allied Telesis AT-2916SX/LC, Internal, Wired, PCI, 1000, 100
Specifications
| Depth | 64 mm |
|---|---|
| Width | 120 mm |
| Internal | Yes |
| Connector(s) | LC |
| Ethernet LAN | Yes |
| Certification | RoHS, UL, FCC/EN55022 B, TUV, EN55024, CE, C-TICK, VCCI |
| Plug and Play | Yes |
| Host interface | PCI |
| Jumbo frames support | Yes |
| Management protocols | WMI, ACPI 1.1, PXE 2.1, SNMP |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 1000, 100 |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 3.78 W |
| Compatible operating systems | Windows XP/Vista/Vista 64-bit/XP 64-bit/2003/2003 64-bit/2000, NDIS2, NetWare 6.x, Linux 2.4/2.6 |
| Compliance industry standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Operating relative humidity (H-H) | 5 - 90% |
| Warranty | 3-Year Warranty |
| Dimensions | 120 mm x 64 mm |
Product Description

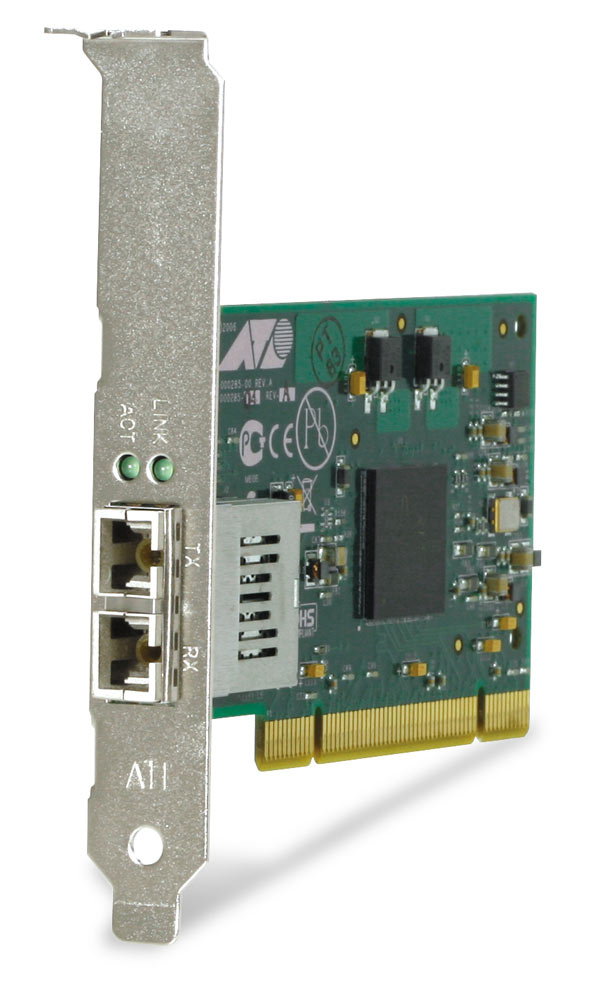

The AT-2916SX, 32-bit, Gigabit Ethernet NIC provides a 1000Mbps fiber port to deliver desktop connectivity in fiber rich LAN environments. It's an ideal fit for the security needed in government applications. With both standard and low profile brackets included (standard bracket pre-assembled), driver support for most popular operating systems and PCI 2.2 capability, installation couldn't be easier. Available in SC or LC connector types. -Jumbo frames support up to 9KB. -TCP, UDP & IP checksum generation and check packet filtering based on checksum errors. -Support for all popular operating systems, including Sun Solaris. -Link Aggregation gives higher capacity and availability. -Virtual LAN (VLAN) support for complete network optimization. -Virtual Cable Tester (VCT) for cable fault diagnostics. -Advanced Power Management (ACPI). -Bring a remote sleeping computer to full power with Wake-on-LAN (WOL). -Network Administration Support with remote boot (PXE 2.0).
Key Features
Allied Telesis AT-2916SX/LC. Internal. Connectivity technology: Wired, Host interface: PCI. Maximum data transfer rate: 1000, 100
