Allied Telesis AT-2916SX/LC-001 Internal Ethernet 1000 Mbit/s
Brand: Allied Telesis · SKU: 990-000755-001 · MPN: 990-000755-001 · Category: Components
Allied Telesis AT-2916SX/LC-001, Internal, Wired, PCI, Ethernet, 1000 Mbit/s
Specifications
| Width | 120 mm |
|---|---|
| Height | 64 mm |
| Chipset | Broadcom BCM5703S |
| Internal | Yes |
| Interface | Ethernet |
| Full duplex | Yes |
| Link/Act LED | Yes |
| Power supply | 3.78 W |
| Certification | RoHS, UL, FCC/EN55022 Class B, TUV, EN55024, CE, C-TICK, VCCI |
| Host interface | PCI |
| Performance management | WMI, ACPI 1.1, PXE 2.1 Boot ROM, SNMP |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Compatible operating systems | Windows 7, Windows Vista, Windows Vista 64-bit, Windows XP, Windows XP 64-bit, Windows 2003, Windows 2003 64-bit, Windows 2000, NDIS2, NetWare 6.x, Linux 2.4, Linux 2.6, SNMP |
| Compliance industry standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Operating relative humidity (H-H) | 5 - 90% |
| Warranty | 3-Year Warranty |
| Dimensions | 120 mm x 64 mm |
Product Description

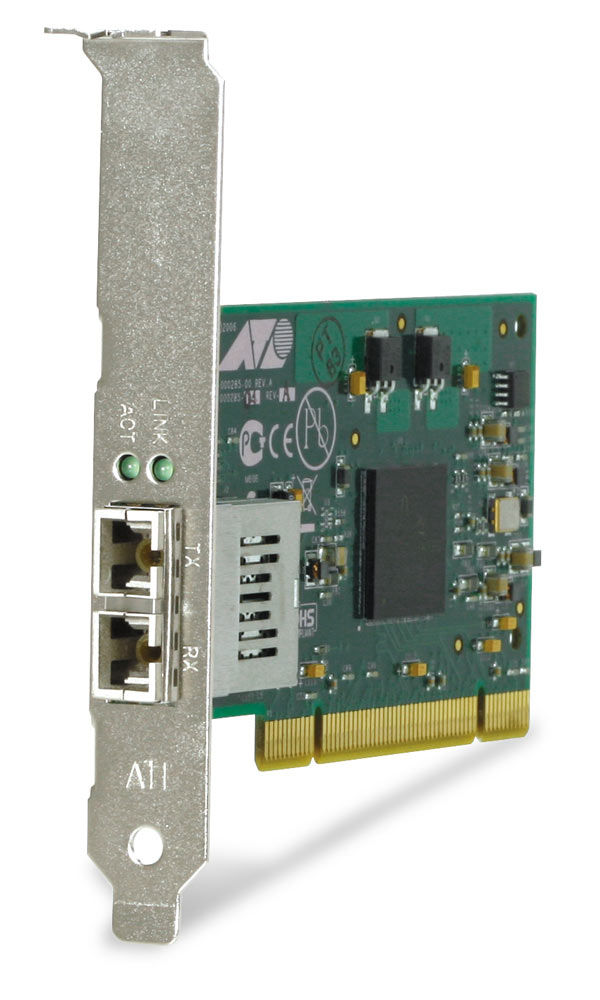

Performance Allied Telesis’ AT-2916SX is a highly reliable 32-bit PCI Gigabit fiber interface card with 9KB jumbo frames support for network upgrade needs.The AT-2916SX helps to boost your Gigabit Ethernet throughput ten times to 1000Mbps. With the 1000SX fiber-optic connection, data transmission is both secure and faster. In order to reduce CPU use, Allied Telesis’ AT-2916SX uses the adaptive interrupts and ultra-deep 96KB packet buffer. Coupled with link aggregation and load balancing,AT-2916SX achieves the best performance of its class for server connectivity. High Reliability AT-2916SX Gigabit Ethernet fiber interface card comes with a variety of reliability features that are designed to maintain a connection as long as possible, including: link aggregation and failover. Advanced Manageability The priority queuing and Virtual LAN features offered by AT-2916SX can help users set-up the network based on their own needs.The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a powerful tool to analyze the interface card and check specific data. AT-2916SX Gigabit Ethernet fiber interface card can also support up to 64 VLANs and four priority queues.
Key Features
Allied Telesis AT-2916SX/LC-001. Internal. Connectivity technology: Wired, Host interface: PCI, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
