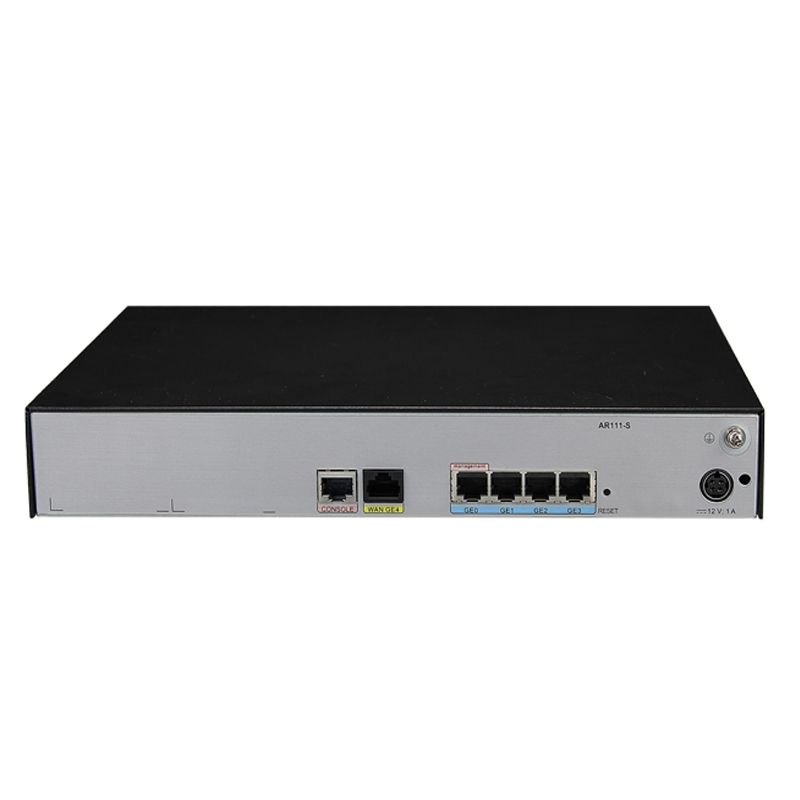

AR111-S, Huawei AR Series Enterprise SOHO Router, 8xFE LAN, No Wi-Fi, Compact Size
SKU: AR111-S · MPN: AR111-S · Category: Networking
AR111-S-Huawei Enterprise SOHO router, 8 FE LAN
Specifications
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc. |
|---|---|
| QoS | MQC, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCPWRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), and MQC (traffic classification, traffic behavior, and traffic policy) |
| VPN | IPSec VPN, GRE VPN, DSVPN, L2TP VPN, Smart VPN |
| Wi-Fi | None |
| Security | ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, blacklist, IP source tracing, PKI, and HTTPS |
| Frequency | 50 Hz/60 Hz |
| Multicast | IGMP, MLD |
| PoE Power | None |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management) |
| Memory Size | 256 MB |
| Flash Memory | 256 MB |
| IPv4 Routing | Static route, RIP, and BGP |
| IPv6 Routing | Static route, RIPng, and BGP4+ |
| Console Ports | 1 |
| Maximum Power | 24W |
| USB 2.0 Ports | 1 |
| Basic Features | ARP, PBR, DNS, DHCP, and NAT |
| Fixed WAN Ports | 1 x GE |
| Power Supply (AC) | 100V to 240V |
| Relative Humidity | 5% to 95% (non-condensing) |
| Operating Temperature | 0°C to 45°C |
| Dimensions (H x W x D) | 44.5mm x 300mm x 220mm |
| Management and Maintenance | Upgrade management, device management, web-based GUI, SNMP v1/v2c/v3 (AR129CGVW-L only), RMON, NTP, CWMP, Auto-Config, site deployment using USB disk, CLI |
| Fixed Ethernet Switching Ports | 4 x GE (can be configured as WAN interfaces) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AR111-S, Huawei AR Series Enterprise SOHO Router, 8xFE LAN, No Wi-Fi, Compact Size (AR111-S) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AR111-S, Huawei AR Series Enterprise SOHO Router, 8xFE LAN, No Wi-Fi, Compact Size includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AR111-S, Huawei AR Series Enterprise SOHO Router, 8xFE LAN, No Wi-Fi, Compact Size compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AR111-S.
