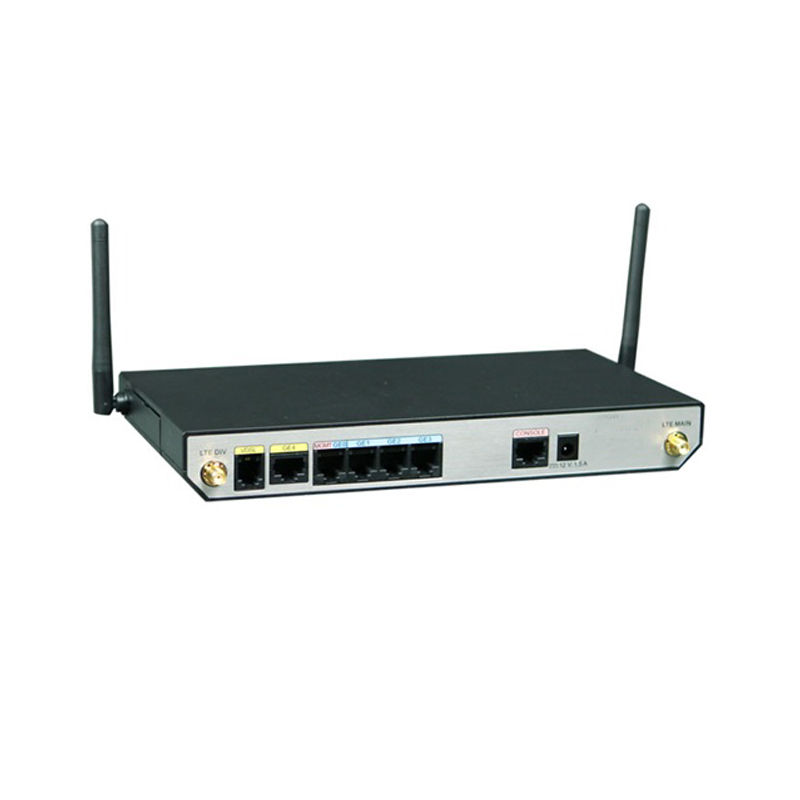

AR109, Huawei AR Series Router, 1GE WAN/1VDSL WAN/4GE LAN
SKU: AR109 · MPN: AR109 · Category: Networking
AR109,1 GE WAN,1 VDSL WAN,4 GE LAN,1 USB2.0
Specifications
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc. |
|---|---|
| QoS | Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), and congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ) |
| VPN | IPSec VPN, GRE VPN, and L2TP Client |
| Wi-Fi | none |
| Security | ACL, firewall, AAA authentication, ICMP attack defense, URPF, and HTTPS |
| Frequency | 50 Hz/60 Hz |
| Multicast | IGMP v1/v2/v3 |
| Memory Size | 256 MB |
| Flash Memory | 256 MB |
| IPv4 Routing | Static route, RIP |
| IPv6 Routing | Static route, RIPng |
| Console Ports | 1 |
| Maximum Power | 24W |
| USB 2.0 Ports | 1 |
| Basic Features | ARP, PBR, DNS, DHCP, and NAT |
| Integrated LTE | none |
| Fixed WAN Ports | 1 x VDSL2 (compatible with ADSL2+ Annex A/M, Annex B/J), and 1 x GE |
| Power Supply (AC) | 100V to 240V |
| Relative Humidity | 5% to 95% (non-condensing) |
| Operating Temperature | 0°C to 40°C |
| Dimensions (H x W x D) | 30 mm x 230 mm x 130 mm (1.18 in. x 9.1 in. x 5.1 in.) |
| Management and Maintenance | Upgrade management, device management, web-based GUI, RMON, CWMP, Auto-Config, site deployment using USB disk, and CLI |
| Number of Recommended Users | 20 |
| Fixed Ethernet Switching Ports | 4 x GE |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AR109, Huawei AR Series Router, 1GE WAN/1VDSL WAN/4GE LAN (AR109) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AR109, Huawei AR Series Router, 1GE WAN/1VDSL WAN/4GE LAN includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AR109, Huawei AR Series Router, 1GE WAN/1VDSL WAN/4GE LAN compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AR109.
