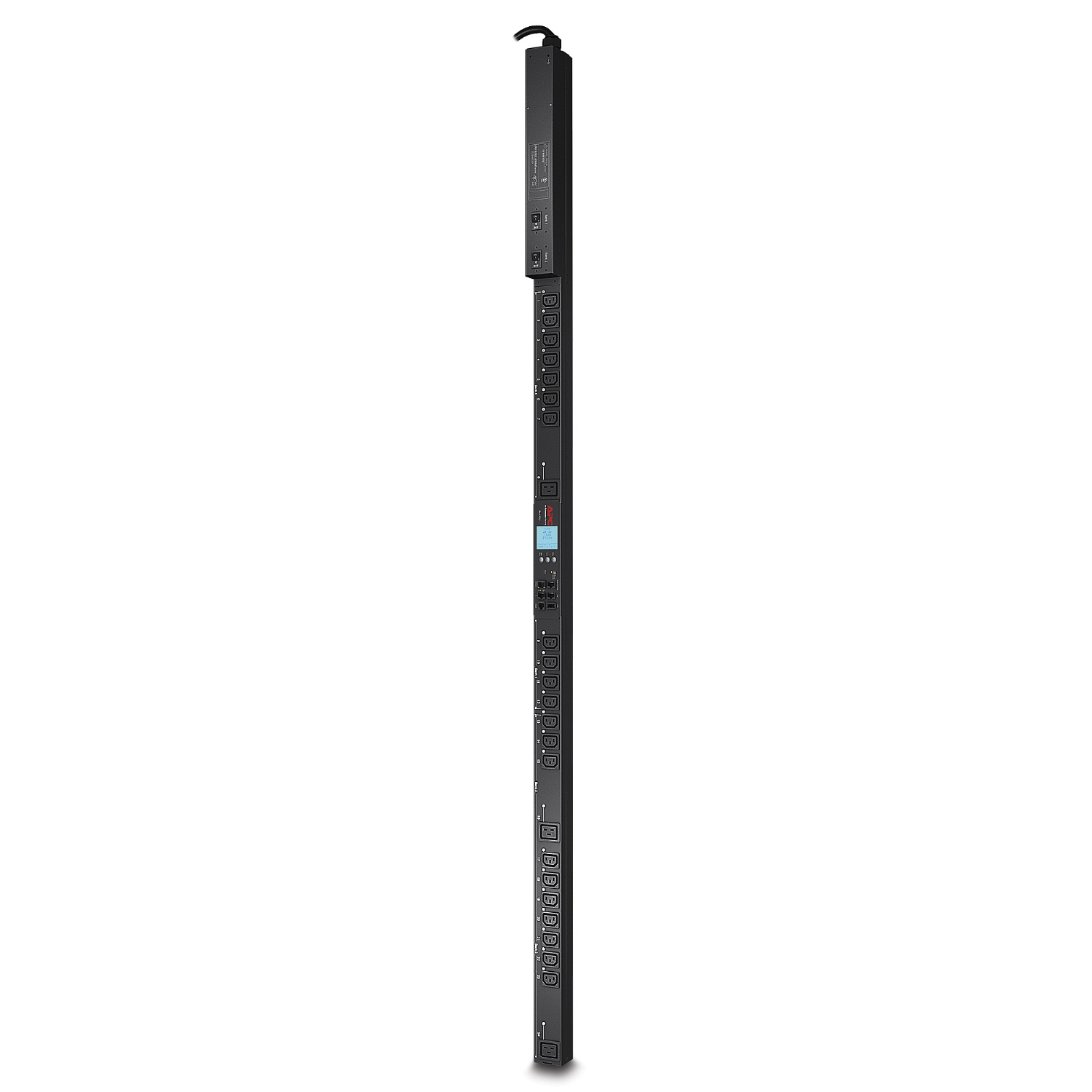

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets
Brand: APC · SKU: APC-AP8641 · MPN: Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets · Category: Data Center
APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets, Switched, 0U, Black, 24 AC outlet(s), NEMA L6-30P, 3 m
Specifications
| Depth | 51 mm |
|---|---|
| Width | 56 mm |
| Height | 1829 mm |
| Weight | 8.23 kg |
| PDU types | Switched |
| Power plug | NEMA L6-30P |
| Cable length | 3 m |
| Certification | cUL,FCC 15 A,ICES-003,UL,VCCI A |
| Package depth | 118 mm |
| Package width | 162 mm |
| Rack capacity | 0U |
| Package height | 2038 mm |
| Package weight | 10.5 kg |
| Product colour | Black |
| Maximum current | 30 A |
| AC input frequency | 50 - 60 Hz |
| Operating altitude | 0 - 3000 m |
| AC outlets quantity | 24 AC outlet(s) |
| Nominal input voltage | 200-230 V |
| Nominal output voltage | 208 V |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
| Power protection features | Overload |
| Storage temperature (T-T) | -25 - 65 °C |
| Warranty | 3-Year Warranty |
| Weight | 8.23 kg |
| Dimensions | 56 mm x 51 mm x 1829 mm |
Product Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Key Features
APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets. PDU types: Switched, Rack capacity: 0U, Product colour: Black. AC outlets quantity: 24 AC outlet(s), Power plug: NEMA L6-30P. Cable length: 3 m. Nominal input voltage: 200-230 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: cUL,FCC 15 A,ICES-003,UL,VCCI A
Technical Deployment Advisory
Target Personnel
Network Security Admins
Infrastructure Fit
Leaf-Spine Data Center Fabrics
"The APC-AP8641 is built for the professional requirements of Leaf-Spine Data Center Fabrics. It supports management features essential for Network Security Admins overseeing enterprise fabrics."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets (APC-AP8641) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the APC-AP8641.
