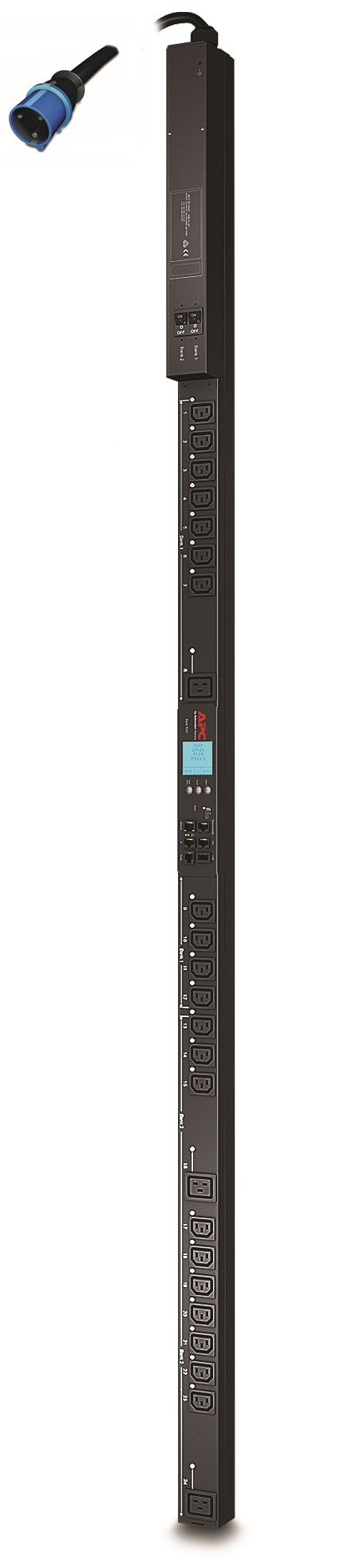

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
Brand: APC · SKU: AP8653 · MPN: Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19 · Category: Data Center
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19, Metered, Metered-by-outlet, Switched, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
Specifications
| Type | Single-phase |
|---|---|
| Depth | 51 mm |
| Width | 56 mm |
| Height | 1829 mm |
| Weight | 8.23 kg |
| Mounting | Vertical |
| PDU types | Metered, Metered-by-outlet, Switched |
| Monitoring | Current, Power, Voltage |
| Power plug | IEC309 |
| Cable length | 3 m |
| Certification | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
| Load capacity | 7680 VA |
| Maximum power | 7680 W |
| Package depth | 118 mm |
| Package width | 162 mm |
| Rack capacity | 0U |
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Package height | 2038 mm |
| Package weight | 10.5 kg |
| Product colour | Black |
| AC outlet types | C13 coupler, C19 coupler |
| Maximum current | 32 A |
| AC input frequency | 50 - 60 Hz |
| Operating altitude | 0 - 3000 m |
| Warranty | 3-Year Warranty |
| Weight | 8.23 kg |
| Dimensions | 56 mm x 51 mm x 1829 mm |
Product Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Key Features
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3 m. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz
Technical Deployment Advisory
Target Personnel
NOC Managers
Infrastructure Fit
Edge Compute Deployments
"NOC Managers should consider the AP8653 for Edge Compute Deployments where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19 (AP8653) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP8653.
