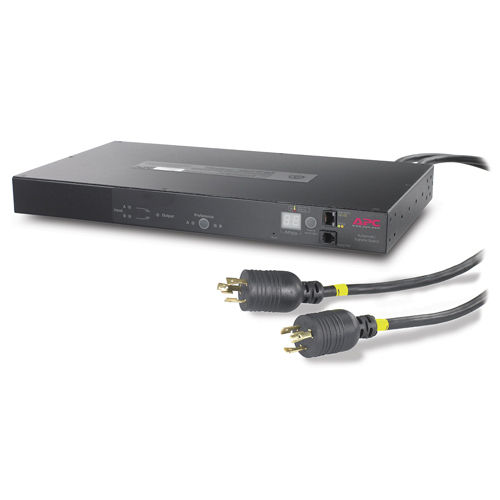

APC Rack ATS, 120V power distribution unit (PDU)
Brand: APC · SKU: AP7752 · MPN: Rack ATS, 120V · Category: Data Center
APC Rack ATS, 120V, NEMA L5-20P, 10x NEMA 5-20R, 2.44 m, 47/63 Hz, 120 V, 20 A
Specifications
| Depth | 229 mm |
|---|---|
| Width | 432 mm |
| Height | 44 mm |
| Weight | 4.98 kg |
| Cable length | 2.44 m |
| Certification | EN 55022 Class A,FCC Part 15 Class A RoHS 7b Exemption |
| Package depth | 349 mm |
| Package width | 600 mm |
| Package height | 114 mm |
| Package weight | 6.75 kg |
| AC input frequency | 47/63 Hz |
| Output connections | 10x NEMA 5-20R |
| Input connection type | NEMA L5-20P |
| Nominal output voltage | 120 V |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Maximum input current per phase | 20 A |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Maximum total current draw per phase | 20 A |
| Warranty | 3-Year Warranty |
| Weight | 4.98 kg |
| Dimensions | 432 mm x 229 mm x 44 mm |
Product Description
Agility Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Availability Remote Management Capabilities Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. Dual Input Power Sources Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source. Information Displays Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.
Key Features
APC Rack ATS, 120V. Input connection type: NEMA L5-20P, Output connections: 10x NEMA 5-20R. Cable length: 2.44 m. AC input frequency: 47/63 Hz, Nominal output voltage: 120 V, Maximum input current per phase: 20 A. Certification: EN 55022 Class A,FCC Part 15 Class A RoHS 7b Exemption. Width: 432 mm, Depth: 229 mm, Height: 44 mm
Technical Deployment Advisory
Target Personnel
IT Infrastructure Managers
Infrastructure Fit
Mission-Critical Infrastructure
"The APC AP7752 is a professional-grade solution for Mission-Critical Infrastructure. It meets the technical standards required by IT Infrastructure Managers in modern enterprise environments."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Rack ATS, 120V power distribution unit (PDU) (AP7752) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Rack ATS, 120V power distribution unit (PDU) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Rack ATS, 120V power distribution unit (PDU) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP7752.
