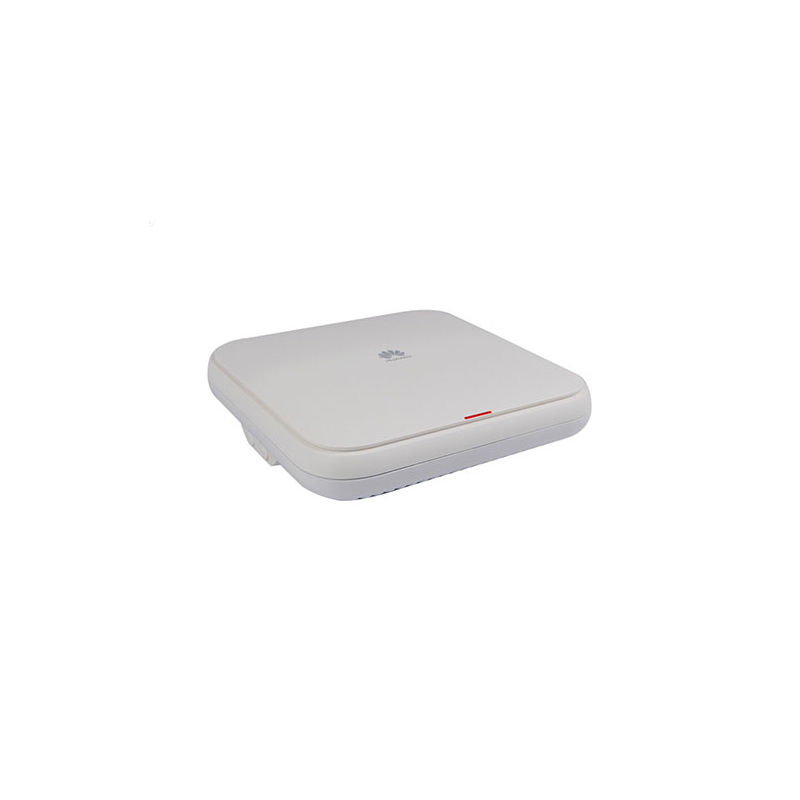

Huawei AP7152DN, Huawei AP7152DN Access Point, 4x4 MIMO/4 spatial streams/2.4G-5G switch
SKU: AP7152DN · MPN: AP7152DN · Category: Networking
Huawei AP7152DN 802.11ac Wave 2 Access Points, 4 x 4 MIMO, four spatial streams, 2.4G-to-5G switchover, External dual-band omnidirectional antennas
Specifications
| EMF | CENELEC EN 62311 CENELEC EN 50385 OET65 RSS-102 FCC Part1&2 FCC KDB series |
|---|---|
| RoHS | Directive 2002/95/EC & 2011/65/EU |
| WEEE | Directive 2002/96/EC & 2012/19/EU |
| REACH | Regulation 1907/2006/EC |
| Weight | 1.7 kg |
| Altitude | – 60 m to +5000 m |
| IoT slot | One slot, supporting extension using ZigBee and RFID modules |
| Power input | DC: 42.5 V to 57 V PoE power supply: in compliance with IEEE 802.3at/bt; dual PoE power supply. |
| Antenna gain | 2.4G / 5G (switchable): 3.5 dBi/ 4 dBi 5G (non-switchable): 4 dBi |
| Antenna type | external dual-band omnidirectional antennas |
| EMC standards | EN 301 489 – 1 EN 301 489 – 17 ETSI EN 60601-1-2 FCC Part 15 ICES-300 YD/T 1312.2-2004 ITU k.20 GB 9254 GB 17625.1 AS/NZS CISPR2 EN 55022 EN 55024 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2 |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
| IEEE standards | IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11r |
| Interface type | 1 x 10/100/1000M self-adaptive Ethernet interface (RJ45) 1 x 100/1000M/2.5G/5G self-adaptive Ethernet interface (RJ45) 1 x Management console port (RJ45) 1 x USB interface |
| Power increment | 1 dBm |
| Radio standards | ETSI EN 300 328 ETSI EN 301 893 RSS-210 AS/NZS 4268 |
| Safety standards | UL 60950-1 CAN/CSA 22.2 No.60950-1 IEC 60950-1 EN 60950-1 GB 4943 |
| Built-in Bluetooth | BLE4.1 |
| Operating humidity | 5% to 95% (non-condensing) |
| Security standards | 802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s) |
| Storage temperature | – 40 ° C to +70 ° C |
| Atmospheric pressure | 53 kPa to 106 kPa |
| Receiver sensitivity | 2.4 GHz 802.11b: – 104 dBm @ 1 Mbit/s; – 95 dBm@ 11 Mbit/s 2.4 GHz 802.11g: -96 dBm @ 6 Mbit/s; -77 dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20): -95 dBm @ MCS0; -75 dBm @ MCS31 2.4 GHz 802.11n(HT40): -92 dBm @ MCS0; -73 dBm @ MCS31 5 GHz 802.11a: -95 dBm @ 6 Mbit/s; -79 dBm @ 54 Mbit/s 5 GHz 802.11n (HT20): -94 dBm @ MCS0; -74 dBm @ MCS31 5 GHz 802.11n (HT40): -93 dBm @ MCS0; -71 dBm @ MCS31 5 GHz 802.11ac (VHT20): -94 dBm @ MCS0NSS1; -70 dBm @ MCS8NSS4 5 GHz 802.11ac (VHT40): -91 dBm @ MCS0NSS1; -67 dBm @ MCS9NSS4 5 GHz 802.11ac (VHT80): -88 dBm @ MCS0NSS1; -62 dBm @ MCS9NSS4 5 GHz 802.11ac (VHT160): -85 dBm @ MCS0NSS1; -62 dBm @ MCS9NSS2 |
| Operating temperature | – 10 ° C to +50 ° C |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Huawei AP7152DN, Huawei AP7152DN Access Point, 4x4 MIMO/4 spatial streams/2.4G-5G switch (AP7152DN) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Huawei AP7152DN, Huawei AP7152DN Access Point, 4x4 MIMO/4 spatial streams/2.4G-5G switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Huawei AP7152DN, Huawei AP7152DN Access Point, 4x4 MIMO/4 spatial streams/2.4G-5G switch compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP7152DN.
