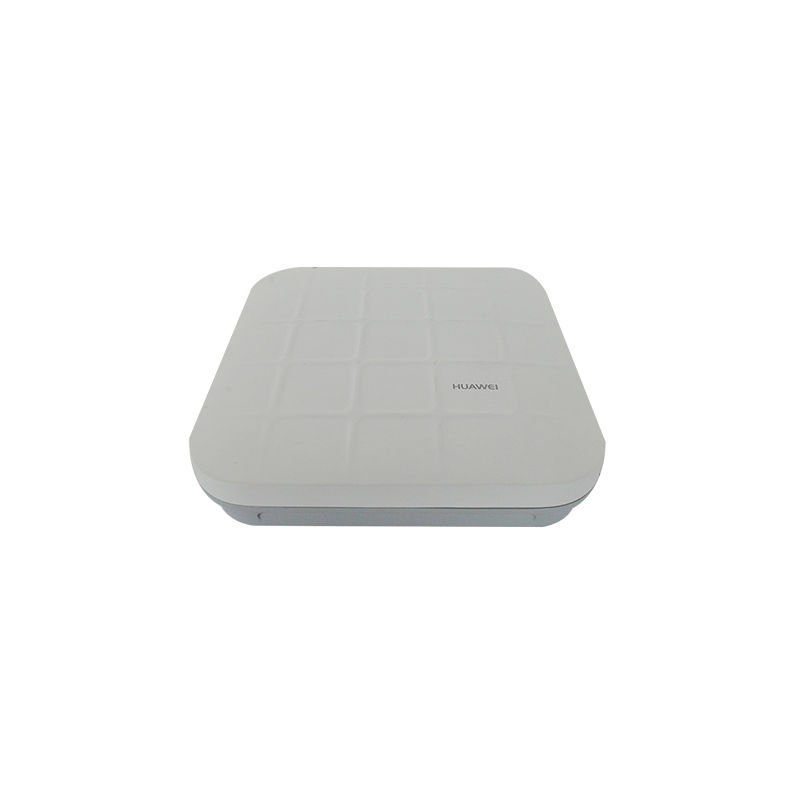

Huawei AP6150DN, Huawei AP Series Access Point, 4x4 MIMO/4 spatial streams/External dual-band antenna

SKU: AP6150DN · MPN: AP6150DN · Category: Networking

Huawei AP6150DN, Huawei AP Series Access Point, 4x4 MIMO/4 spatial streams/External dual-band antenna
$363.40
In Stock • 10 units

Huawei AP6150DN 802.11ac Wave 2 AP, 4 x 4 MIMO, four spatial streams, External omni-directional dual-band antenna

View Networking Products

Specifications

EMFCENELEC EN 62311 CENELEC EN 50385 OET65 RSS-102 FCC Part1&2 FCC KDB Series
LEDIndicates the power-on, startup, running, alarm, and fault status of the system.
RoHSDirective 2002/95/EC & 2011/65/EU
WEEEDirective 2002/96/EC & 2012/19/EU
REACHRegulation 1907/2006/EC
Weight1.30 kg
Altitude– 60 m to +5000 m
Power input12 V DC ± 10% PoE power supply: in compliance with IEEE 802.3at
Antenna gain2.4GHz: 3.5dBi 5GHz: 4dBi
Antenna typeexternal dual-band antennas
EMC standardsEN 301 489-1 EN 301 489-17 ETSI EN 60601-1-2 FCC Part 15 ICES-003 YD/T 1312.2-2004 ITU k.20 GB 9254 GB 17625.1 AS/NZS CISPR22 EN 55022 EN 55024 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2
IEEE standardsIEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11r
Interface type2 x 10/100/1000M self-adaptive Ethernet interface (RJ45) 1 x Management console port (RJ45) 1 x USB interface
Power increment1 dBm
Radio standardsETSI EN 300 328 ETSI EN 301 893 RSS-210 AS/NZS 4268
Safety standardsUL 60950-1 CAN/CSA 22.2 No.60950-1 IEC 60950-1 EN 60950-1 GB 4943 IEC 62368-1 EN 62368-1
Operating humidity5% to 95% (non-condensing)
Security standards802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s)
Storage temperature– 40 ° C to +70 ° C
Atmospheric pressure53 kPa to 106 kPa
Receiver sensitivity2.4 GHz 802.11b ：– 102 dBm @ 1 Mbit/s ；– 95dBm@ 11 Mbit/s 2.4 GHz 802.11g ： -96dBm @ 6 Mbit/s ； -76dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20) ： -96 dBm @ MCS0 ； -71dBm @ MCS31 2.4 GHz 802.11n(HT40) ： -93 dBm @ MCS0 ； -69 dBm @ MCS31 5 GHz 802.11a ： -94 dBm @ 6 Mbit/s ； -74dBm @ 54 Mbit/s 5 GHz 802.11n (HT20) ： -94 dBm @ MCS0 ； -69 dBm @ MCS31 5 GHz 802.11n (HT40) ： -91 dBm @ MCS0 ； -68dBm @ MCS31 5 GHz 802.11ac (VHT20) ： -94 dBm @ MCS0NSS1 ； -66 dBm @ MCS8NSS4 5 GHz 802.11ac (VHT40) ： -91 dBm @ MCS0NSS1 ； -62 dBm @ MCS9NSS4 5 GHz 802.11ac (VHT80) ： -87 dBm @ MCS0NSS1 ； -58 dBm @ MCS9NSS4 5 GHz 802.11ac (VHT160) ： -85 dBm @ MCS0NSS1 ； -58 dBm @ MCS9NSS2
Operating temperature– 10 ° C to +50 ° C
Dimensions (H x W x D)56 mm x 220 mm x 220 mm
Maximum transmit power2.4G: 26 dBm (combined power) 5G: 26 dBm (combined power) NOTE The actual transmit power depends on local laws and regulations.
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this Huawei AP6150DN, Huawei AP Series Access Point, 4x4 MIMO/4 spatial streams/External dual-band antenna (AP6150DN) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This Huawei AP6150DN, Huawei AP Series Access Point, 4x4 MIMO/4 spatial streams/External dual-band antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the Huawei AP6150DN, Huawei AP Series Access Point, 4x4 MIMO/4 spatial streams/External dual-band antenna compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP6150DN.
