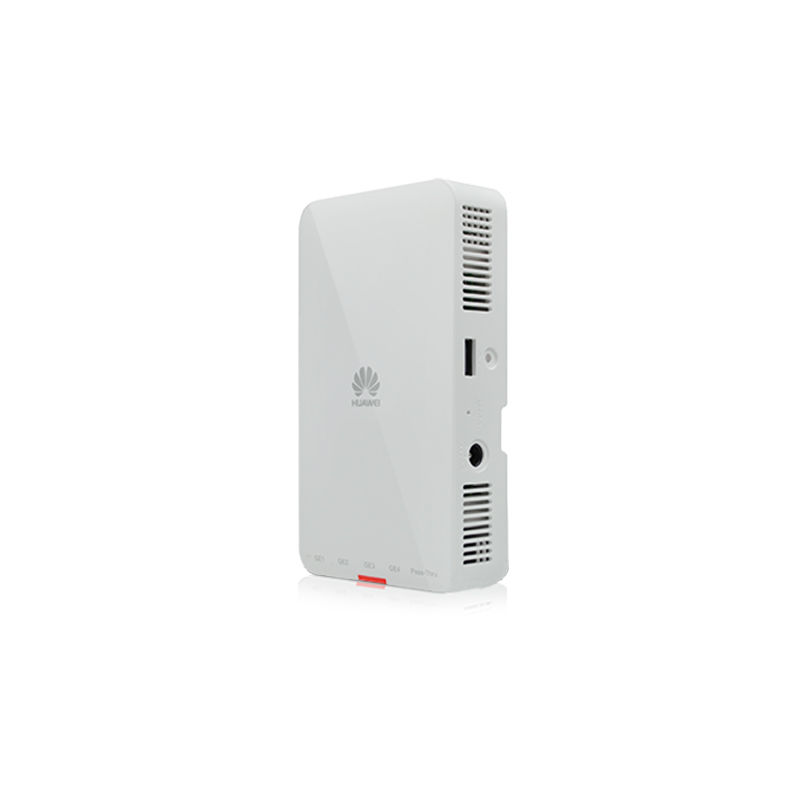

AP2051DN-E, Huawei AP2051DN-E Access Point, 2x2 MIMO/802.11ac Wave 2/13.6W PoE OUT
SKU: AP2051DN-E · MPN: AP2051DN-E · Category: Networking
Huawei AP2051DN-E 802.11ac Wave 2 AP, built-in smart antennas, 2 x 2 MIMO and two spatial streams, 13.6W PoE OUT
Specifications
| EMF | CENELEC EN 62311 CENELEC EN 50385 RSS-102 |
|---|---|
| Gain | 2.4G: 3 dB 5G: 4 dB NOTE Gain involves the physical gain and SINR enhancement of smart antennas. |
| RoHS | Directive 2002/95/EC & 2011/65/EU |
| WEEE | Directive 2002/96/EC & 2012/19/EU |
| REACH | Regulation 1907/2006/EC |
| Weight | 0.25 kg |
| PoE OUT | MAX 13.6W (802.3at-compliant, 48 V DC, supported only by GE4) l NOTE • A 40-meter Cat5e Ethernet cable can be used to supply power to an 802.3af-compliant device. • The PoE out and USB functions cannot be used simultaneously. |
| Altitude | – 60 m to +5000 m |
| Power input | Power adapter: 45.6 V to 57 V PoE power supply: in compliance with IEEE 802.3af/at |
| Antenna type | Built-in dual-band smart antennas |
| EMC standards | EN 301 489-1 EN 301 489-17 ETSI EN 60601-1-2 ICES-003 YD/T 1312.2-2004 GB 9254 GB 17625.1 EN 55022 EN 55024 IEC6ITU k.21 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2 |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
| IEEE standards | IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11r |
| Interface type | Uplink: 1 x GE Downlink: 4 x GE 2 x Pass-through RJ45 port 1 x USB port |
| Power increment | 1 dBm |
| Radio standards | ETSI EN 300 328 ETSI EN 301 893 RSS-210 AS/NZS 4268 |
| Safety standards | UL 60950-1 IEC 60950-1 EN 60950-1 GB 4943 IEC 62368-1 EN 62368-1 |
| Built-in Bluetooth | BLE4.1 |
| Operating humidity | 5% to 95% (non-condensing) |
| Security standards | 802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s) |
| Storage temperature | – 40 ° C to +70 ° C |
| Atmospheric pressure | 53 kPa to 106 kPa |
| Receiver sensitivity | 2.4 GHz 802.11b: -99 dBm @ 1 Mbit/s -91 dBm @ 11 Mbit/s 2.4 GHz 802.11g: -93 dBm @ 6 Mbit/s -78 dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20): -93 dBm @ MCS0 -72 dBm @ MCS15 5 GHz 802.11a: -93 dBm @ 6 Mbit/s -77 dBm @ 54 Mbit/s 5 GHz 802.11n (HT20): -92 dBm @ MCS0 -72 dBm @ MCS15 5 GHz 802.11n (HT40): -89 dBm @ MCS0 -70 dBm @ MCS15 5 GHz 802.11ac (VHT20): -92 dBm @ MCS0NSS1 -71 dBm @ MCS8NSS2 5 GHz 802.11ac (VHT40): -90 dBm @ MCS0NSS1 -63 dBm @ MCS9NSS2 5 GHz 802.11ac (VHT80): -86 dBm @ MCS0NSS1 -60 dBm @ MCS9NSS2 |
| Operating temperature | 0 ° C to 40 ° C |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AP2051DN-E, Huawei AP2051DN-E Access Point, 2x2 MIMO/802.11ac Wave 2/13.6W PoE OUT (AP2051DN-E) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AP2051DN-E, Huawei AP2051DN-E Access Point, 2x2 MIMO/802.11ac Wave 2/13.6W PoE OUT includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AP2051DN-E, Huawei AP2051DN-E Access Point, 2x2 MIMO/802.11ac Wave 2/13.6W PoE OUT compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP2051DN-E.
