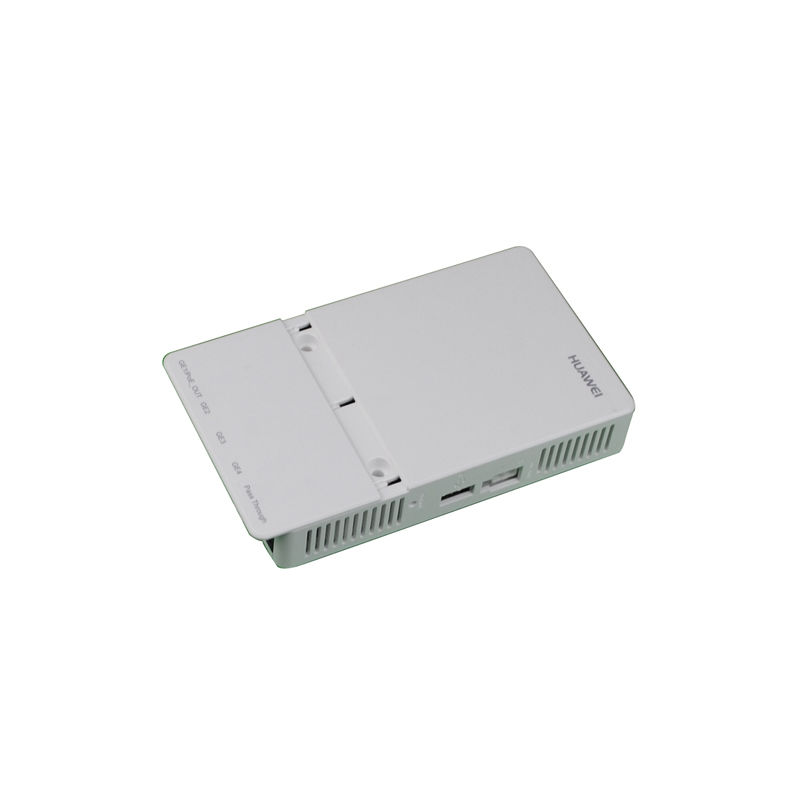

AP2050DN-E, Huawei AP2050DN-E Access Point, 802.11ac Wave 2/2x2 MIMO/2 spatial streams

SKU: AP2050DN-E · MPN: AP2050DN-E · Category: Networking

AP2050DN-E, Huawei AP2050DN-E Access Point, 802.11ac Wave 2/2x2 MIMO/2 spatial streams
$605.36
In Stock • 10 units

Huawei AP2050DN-E wall plate Access Point, 802.11ac Wave 2, 2 x 2 MIMO and two spatial streams

View Wireless APs Products

Specifications

EMFCENELEC EN 62311 CENELEC EN 50385 RSS-102
RoHSDirective 2002/95/EC & 2011/65/EU
WEEEDirective 2002/96/EC & 2012/19/EU
REACHRegulation 1907/2006/EC
Weight0.26 kg
PoE out10 W
Altitude– 60 m to +5000 m
Power inputPower adapter: 48 V ± 5% PoE power supply: in compliance with IEEE 802.3af/at
Antenna gain2.4G: 4 dBi 5G: 5 dBi
Antenna typeBuilt-in dual-band omnidirectional antennas
EMC standardsEN 301 489-1 EN 301 489-17 ETSI EN 60601-1-2 ICES-003 YD/T 1312.2-2004 GB 9254 GB 17625.1 EN 55022 EN 55024 IEC6ITU k.21 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2
LED indicatorIndicates the power-on, startup, running, alarm, and fault status of the system.
IEEE standardsIEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11r
Interface typeUplink: 1 x GE Downlink: 4 x GE 2 x Pass-through RJ45 port 1 x USB port
Power increment1 dBm
Radio standardsETSI EN 300 328 ETSI EN 301 893 RSS-210 AS/NZS 4268
Safety standardsUL 60950-1 IEC 60950-1 EN 60950-1 GB 4943
Built-in BluetoothBLE4.1
Operating humidity5% to 95% (non-condensing)
Security standards802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s)
Storage temperature– 40 ° C to +70 ° C
Atmospheric pressure53 kPa to 106 kPa
Receiver sensitivity2.4 GHz 802.11b ：– 97dBm @ 1 Mbit/s ；– 91dBm@ 11 Mbit/s 2.4 GHz 802.11g ： -93dBm @ 6 Mbit/s ； -78dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20) ： -93 dBm @ MCS0 ； -72dBm @ MCS15 2.4 GHz 802.11n(HT40) ： -90 dBm @ MCS0 ； -71 dBm @ MCS15 5 GHz 802.11a ： -93 dBm @ 6 Mbit/s ； -77dBm @ 54 Mbit/s 5 GHz 802.11n (HT20) ： -92 dBm @ MCS0 ； -72 dBm @ MCS15 5 GHz 802.11n (HT40) ： -89 dBm @ MCS0 ； -70dBm @ MCS15 5 GHz 802.11ac (VHT20) ： -92 dBm @ MCS0NSS1 ； -71 dBm @ MCS8NSS2 5 GHz 802.11ac (VHT40) ： -90 dBm @ MCS0NSS1 ； -63 dBm @ MCS9NSS2 5 GHz 802.11ac (VHT80) ： -86 dBm @ MCS0NSS1 ； -60 dBm @ MCS9NSS2
Operating temperature0 ° C to +40 ° C
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AP2050DN-E, Huawei AP2050DN-E Access Point, 802.11ac Wave 2/2x2 MIMO/2 spatial streams (AP2050DN-E) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AP2050DN-E, Huawei AP2050DN-E Access Point, 802.11ac Wave 2/2x2 MIMO/2 spatial streams includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AP2050DN-E, Huawei AP2050DN-E Access Point, 802.11ac Wave 2/2x2 MIMO/2 spatial streams compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP2050DN-E.
