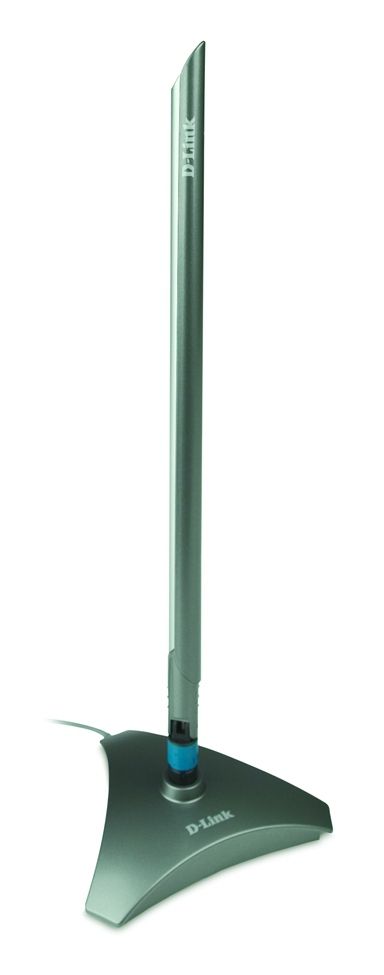

D-Link ANT24-0700 network antenna Omni-directional antenna RP-SMA 7 dBi
Brand: D-Link · SKU: ANT24-0700/FR · MPN: ANT24-0700/FR · Category: Components
D-Link ANT24-0700, 7 dBi, 2.4 - 2.5 GHz, 50 Ω, Omni-directional antenna, RP-SMA, Grey, Silver. D-Link ANT24-0700 network antenna Omni-directional antenna RP-SMA 7 dBi (part number ANT24-0700/FR) is an enterprise components product available from Server Tech Central. Key specifications include depth 120 mm, width 120 mm, height 326 mm, weight 226 g, purpose Indoor, diameter 9 mm, impedance 50 Ω, antenna type Omni-directional antenna. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 120 mm |
|---|---|
| Width | 120 mm |
| Height | 326 mm |
| Weight | 226 g |
| Purpose | Indoor |
| Diameter | 9 mm |
| Impedance | 50 Ω |
| Antenna type | Omni-directional antenna |
| Frequency band | 2.4 - 2.5 GHz |
| Product colour | Grey, Silver |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 7 dBi |
| Storage temperature (T-T) | -30 - 75 °C |
| Operating temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Voltage Standing Wave Ratio (VSWR) | 1.92 |
| Warranty | 3-Year Warranty |
| Weight | 226 g |
| Dimensions | 120 mm x 120 mm x 326 mm |
Product Description
The D-Link ANT24-0700 is a high-Gain omni-directional antenna designed for 2.4GHz ISM band indoor use. This antenna provides high transmission/reception rates for wireless LAN devices operating on the 2.4GHz public industrial, scientific and medical (ISM) frequency band. It can be used with 802.11b and 802.11g wireless LAN devices such as access points and remote routers. This antenna can be used to replace the default antenna of your wireless device to expand its operation range. It can be connected to your wireless device through an extension cable (provided with the antenna), or directly attached to your wireless device.
Key Features
D-Link ANT24-0700. Antenna gain level (max): 7 dBi, Frequency band: 2.4 - 2.5 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Product colour: Grey, Silver. Width: 120 mm, Depth: 120 mm, Height: 326 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this D-Link ANT24-0700 network antenna Omni-directional antenna RP-SMA 7 dBi (ANT24-0700/FR) is 100% genuine D-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This D-Link ANT24-0700 network antenna Omni-directional antenna RP-SMA 7 dBi includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the D-Link ANT24-0700 network antenna Omni-directional antenna RP-SMA 7 dBi compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ANT24-0700/FR.
