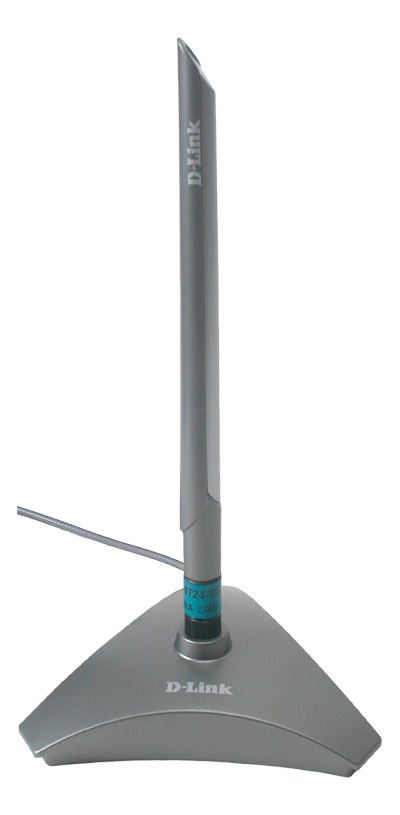

D-Link ANT24-0501 network antenna Omni-directional antenna RP-SMA 5 dBi

Brand: D-Link · SKU: ANT24-0501 · MPN: ANT24-0501 · Category: Components

D-Link ANT24-0501 network antenna Omni-directional antenna RP-SMA 5 dBi
Request for Quote
Backorder

D-Link ANT24-0501, 5 dBi, 2.4 GHz, IEEE 802.11b, IEEE 802.11g, 5 dBi, 50 Ω, Omni-directional antenna. D-Link ANT24-0501 network antenna Omni-directional antenna RP-SMA 5 dBi (part number ANT24-0501) is an enterprise components product available from Server Tech Central. Key specifications include depth 120 mm, width 120 mm, height 230 mm, weight 217 g, purpose Indoor, mounting Wall, impedance 50 Ω, antenna type Omni-directional antenna. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Depth120 mm
Width120 mm
Height230 mm
Weight217 g
PurposeIndoor
MountingWall
Impedance50 Ω
Antenna typeOmni-directional antenna
Cable length1.5 m
Frequency band2.4 GHz
Power handling1 W
Product colourGrey
Networking standardsIEEE 802.11b, IEEE 802.11g
Antenna connector typeRP-SMA
Antenna gain (2.4 GHz)5 dBi
Antenna gain level (max)5 dBi
Storage temperature (T-T)-30 - 75 °C
Operating temperature (T-T)-20 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Voltage Standing Wave Ratio (VSWR)1.92
Warranty3-Year Warranty
Weight217 g
Dimensions120 mm x 120 mm x 230 mm

Product Description

The D-Link ANT24-0501 is a high-Gain omni-directional antenna designed for 2.4GHz ISM band indoor use. This antenna provides high transmission/reception rates for wireless LAN devices operating on the 2.4GHz public industrial, scientific and medical (ISM) frequency band. It can be used with 802.11b, 802.11g and 802.11n wireless LAN devices such as access points and routers. This antenna can be used to replace the default antenna of your wireless device to expand its operation range. It can be connected to your wireless device through an extension cable (provided with the antenna), or directly attached to your wireless device. - 2.4GHz Frequency Range. - Omni-Directional, 360° Horizontal Spread. - Extends Wireless Coverage. - SMA-Female Connector. - Flexible Installation: Desktop, Magnetic Attach, Wall Mount or Direct Product Attach.

Key Features

D-Link ANT24-0501. Antenna gain level (max): 5 dBi, Frequency band: 2.4 GHz, Networking standards: IEEE 802.11b, IEEE 802.11g. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Product colour: Grey. Width: 120 mm, Depth: 120 mm, Height: 230 mm
