Motorola AN710 network antenna Directional antenna N-type 3 dBi
Brand: Zebra · SKU: AN710-L61NF00WUS · MPN: AN710-L61NF00WUS · Category: Components
Motorola AN710, 3 dBi, 0.902 - 0.928 GHz, 50 Ω, Directional antenna, N-type, Male. Zebra Motorola AN710 network antenna Directional antenna N-type 3 dBi (part number AN710-L61NF00WUS) is an enterprise components product available from Server Tech Central. Key specifications include depth 17.5 mm, width 146.1 mm, height 146.1 mm, weight 500 g, purpose Indoor, impedance 50 Ω, antenna type Directional antenna, polarization Circular polarization. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 17.5 mm |
|---|---|
| Width | 146.1 mm |
| Height | 146.1 mm |
| Weight | 500 g |
| Purpose | Indoor |
| Impedance | 50 Ω |
| Antenna type | Directional antenna |
| Polarization | Circular polarization |
| Certification | TAA, IEC, EN |
| Frequency band | 0.902 - 0.928 GHz |
| Power handling | 10 W |
| Product colour | White |
| Connector gender | Male |
| Dimensions (WxDxH) | 146.05 x 17.53 x 146.05 mm |
| Antenna connector type | N-type |
| Antenna gain level (max) | 3 dBi |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -22 - 176 °F |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Warranty | 3-Year Warranty |
| Weight | 500 g |
| Dimensions | 146.1 mm x 17.5 mm x 146.1 mm |
Product Description

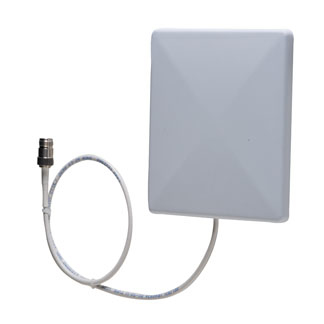

Motorola RFID antenna family The AN710 RFID antennas offer all the features required for carpeted and customer-facing environments. A perfect complement to Motorola’s FX7400 RFID Reader, the AN710 antennas are extremely compact, offering the aesthetics required for the most discreet installation in the most space constrained areas — for example, under the point of sale (POS) counter. The integrated mounting bracket enables easy installation in minutes.
Key Features
Motorola AN710. Antenna gain level (max): 3 dBi, Frequency band: 0.902 - 0.928 GHz, Impedance: 50 Ω. Antenna type: Directional antenna, Antenna connector type: N-type, Connector gender: Male. Certification: TAA, IEC, EN. Width: 146.1 mm, Depth: 17.5 mm, Height: 146.1 mm. Dimensions (WxDxH): 146.05 x 17.53 x 146.05 mm, Operating temperature (T-T): -22 - 176 °F
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Motorola AN710 network antenna Directional antenna N-type 3 dBi (AN710-L61NF00WUS) is 100% genuine Zebra hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Motorola AN710 network antenna Directional antenna N-type 3 dBi includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Motorola AN710 network antenna Directional antenna N-type 3 dBi compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AN710-L61NF00WUS.
