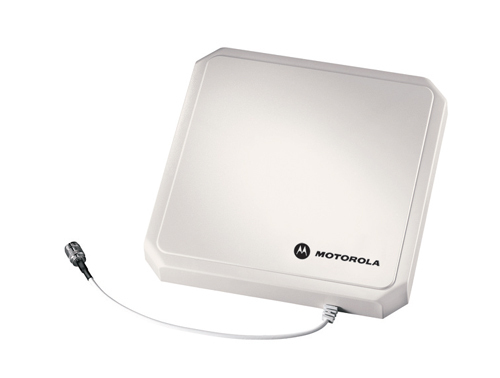

Motorola AN480 RFID Antenna network antenna Directional antenna N-type 6 dBi
Brand: Zebra · SKU: AN480-CR66100WR · MPN: AN480-CR66100WR · Category: Components
Motorola AN480 RFID Antenna, 6 dBi, 50 Ω, 65°, 65°, Directional antenna, N-type. Zebra Motorola AN480 RFID Antenna network antenna Directional antenna N-type 6 dBi (part number AN480-CR66100WR) is an enterprise components product available from Server Tech Central. Key specifications include depth 259.1 mm, width 259.1 mm, height 50.3 mm, weight 1.13 kg, purpose Outdoor, impedance 50 Ω, antenna type Directional antenna, certification RoHS, UL. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 259.1 mm |
|---|---|
| Width | 259.1 mm |
| Height | 50.3 mm |
| Weight | 1.13 kg |
| Purpose | Outdoor |
| Impedance | 50 Ω |
| Antenna type | Directional antenna |
| Certification | RoHS, UL |
| Power handling | 2 W |
| Product colour | White |
| Frequency range | 865 - 868 MHz |
| Vertical beam width | 65° |
| Horizontal beam width | 65° |
| Antenna connector type | N-type |
| Antenna gain level (max) | 6 dBi |
| Harmonized System (HS) code | 85177100 |
| Voltage Standing Wave Ratio (VSWR) | 1.22:1 |
| Warranty | 3-Year Warranty |
| Weight | 1.13 kg |
| Dimensions | 259.1 mm x 259.1 mm x 50.3 mm |
Product Description
This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise from the manufacturing and warehouse floors to the dock doors and outside in the yard. The AN480 antenna offers the environmental sealing required for indoor and outdoor use. Its extremely low axial ratio delivers a more uniform gain for superior performance.
Key Features
Motorola AN480 RFID Antenna. Antenna gain level (max): 6 dBi, Impedance: 50 Ω, Horizontal beam width: 65°. Antenna type: Directional antenna, Antenna connector type: N-type, Voltage Standing Wave Ratio (VSWR): 1.22:1. Certification: RoHS, UL. Width: 259.1 mm, Depth: 259.1 mm, Height: 50.3 mm. Frequency range: 865 - 868 MHz
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Motorola AN480 RFID Antenna network antenna Directional antenna N-type 6 dBi (AN480-CR66100WR) is 100% genuine Zebra hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Motorola AN480 RFID Antenna network antenna Directional antenna N-type 6 dBi includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Motorola AN480 RFID Antenna network antenna Directional antenna N-type 6 dBi compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AN480-CR66100WR.
