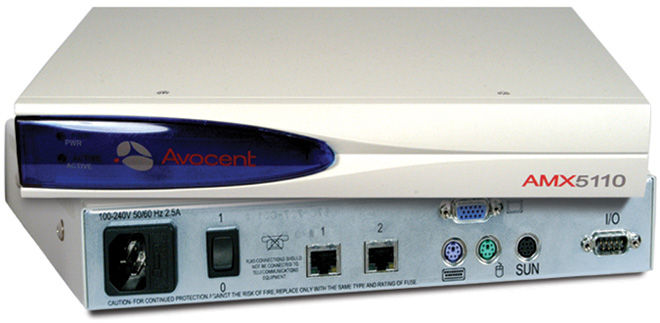

Vertiv AMX5110 User Station KVM switch
Brand: Vertiv · SKU: AMX5110-202 · MPN: AMX5110-202 · Category: Data Center
Vertiv AMX5110 User Station, 1024 x 768 pixels. Vertiv AMX5110 User Station KVM switch (part number AMX5110-202) is an enterprise kvm switches product available from Server Tech Central. Key specifications include weight 2 kg, compatibility PS/2 & Sun, ports quantity 1, mouse port type PS/2, video port type VGA, power supply type 100 - 240 VAC, dimensions (wxdxh) 292 x 279 x 44 mm, keyboard port type PS/2. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 2 kg |
|---|---|
| I/O ports | 2 x KVM RJ-45 1 x VGA - 15 pin HD D-Sub 1 x keyboard (PS/2) 1 x mouse (PS/2) 1 x keyboard / mouse - 8 PIN mini-DIN 1 x 9 pin D-Sub (DB-9) |
| Compatibility | PS/2 & Sun |
| Ports quantity | 1 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| Power supply type | 100 - 240 VAC |
| Dimensions (WxDxH) | 292 x 279 x 44 mm |
| Keyboard port type | PS/2 |
| Maximum resolution | 1024 x 768 pixels |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Compliance industry standards | UL,CUL,FCC,VCCi,CE |
| Number of computers controlled | 1 |
| Warranty | 3-Year Warranty |
| Weight | 2 kg |
Product Description
The Avocent® AMX5110 desktop user station adds an additional RJ45 port to connect a local computer using an AMIQ server interface module. The user station provides access from your desk to an Avocent AMX™ KVM switch. The AMX5110 user station connects to the user’s multi-platform peripherals and sends the KVM signals over an industry standard CAT 5 cable to the AMX matrix switch.The AutoTuning® technology automatically compensates for varying cable types and lengths and adjusts for signal losses each time a switch is made to the server.The AMX5110 user station works with the OSCAR® GUI which uses multi-lingual, intuitive menus for click and connect system configuration and server selection. -Allows a desktop user to access a local computer, using an AMIQ server interface module, and matrix computers – all from one user interface -Supports multi-platform peripherals: PS/2 and Sun -Video Display - Optimal video resolutions up to 1280 x 1024 at 300 metres -Connectivity - End-to-end UTP cable, including CAT 5, CAT 5e, CAT 6 -Automatically compensates for varying cable types (CAT 5, CAT 5e and CAT 6 including GigaFlex) and lengths: -Offers video resolutions up to 1024 x 768 at 300 metres -Works with OSCAR GUI to assist with configuration and server selection -Enables switching of stereo speakers and mono microphone -Provides serial switching up to 38.4Kbps -Flash Upgrade - simultaneously applies flash updates for all connected devices -Local PC Access - user stations allow a local computer to be used for the same AMX user interface SUPPORTED HARDWARE - Computer: PS/2, Sun and USB - Monitor: VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75Hz resolution - Peripherals: PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 5
Key Features
Vertiv AMX5110 User Station. Keyboard port type: PS/2, Mouse port type: PS/2, Video port type: VGA. Maximum resolution: 1024 x 768 pixels. Weight: 2 kg. Connectivity technology: Wired, Power supply type: 100 - 240 VAC, Dimensions (WxDxH): 292 x 279 x 44 mm
