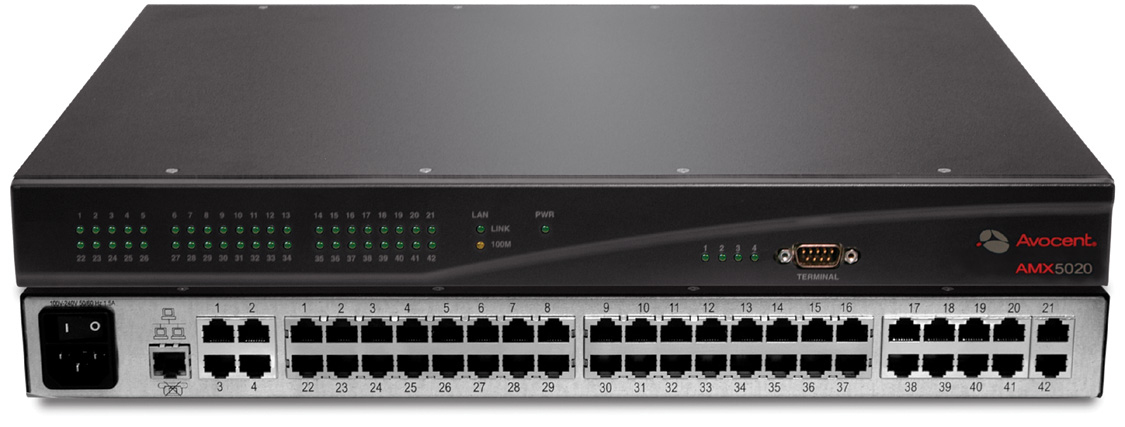

Vertiv AMX5020 KVM switch Rack mounting
Brand: Vertiv · SKU: AMX5020-001 · MPN: AMX5020-001 · Category: Data Center
Vertiv AMX5020, 1600 x 1200 pixels, Rack mounting, 1U. Vertiv AMX5020 KVM switch Rack mounting (part number AMX5020-001) is an enterprise kvm switches product available from Server Tech Central. Key specifications include safety CE, UL, VCCI, C-Tick, cUL, FCC, weight 4.2 kg, rack capacity 1U, rack mounting Yes, led indicators Power, ports quantity 42, mouse port type No, dimensions (wxdxh) 432 x 352 x 43 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Safety | CE, UL, VCCI, C-Tick, cUL, FCC |
|---|---|
| Weight | 4.2 kg |
| I/O ports | 42 x KVM RJ-45 1 xRS-232 9 pin D-Sub (DB-9) 1 x Ethernet 10Base-T/100Base-TX RJ-45 |
| Rack capacity | 1U |
| Rack mounting | Yes |
| LED indicators | Power |
| Ports quantity | 42 |
| Mouse port type | No |
| Dimensions (WxDxH) | 432 x 352 x 43 mm |
| Keyboard port type | No |
| Maximum resolution | 1600 x 1200 pixels |
| Power requirements | 100 - 240 VAC |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Number of computers controlled | 42 |
| Warranty | 3-Year Warranty |
| Weight | 4.2 kg |
Product Description
The AMX5020 KVM switch provides access to all major server platforms and serial devices. It’s designed for growing IT infrastructures with multi-rack, multi-device, multi-platform deployments. The switch provides full, non-blocked access to servers and delivers real-time, high bandwidth video up to 1,000 feet from the server. It operates over end-to-end UTP cabling with automatic compensation for any video losses induced by cabling. An easy to use OSCAR® graphical user interface is included. The Avocent AMWorks Java-based system administration tool provides centralized management software. - Provides comprehensive system administration. - Allows administrators to set multi-level access to servers with password protection for each user. - Creates server and user group lists. - Provides a log of system activity. - Database is stored locally and can be downloaded to the AMX switch via TCP/IP.
Key Features
Vertiv AMX5020. Maximum resolution: 1600 x 1200 pixels. Rack capacity: 1U, LED indicators: Power. Weight: 4.2 kg. Connectivity technology: Wired, Dimensions (WxDxH): 432 x 352 x 43 mm, Power requirements: 100 - 240 VAC
