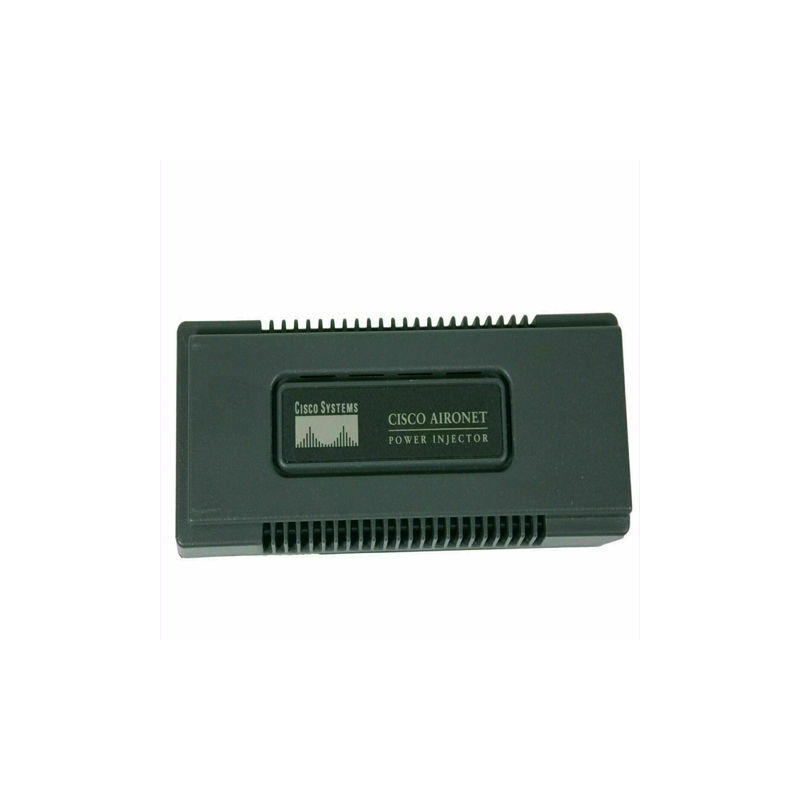

Cisco Aironet AIR-PWRINJ3 Power Injector
Brand: Cisco · SKU: AIR-PWRINJ3 · MPN: AIR-PWRINJ3 · Category: Networking
The Cisco AIR-PWRINJ3 is a 15W Aironet Power Injector designed to increase wireless LAN deployment flexibility for Cisco Aironet Access Points and Bridges by providing an alternative powering option to local power or inline power-capable switches. It combines 48-VDC power (supplied by an external power supply or alternative source) with the data signal, sending both to the connected device over Ethernet. It is compatible with Cisco AP models 1100, 1130AG, 1200, 1230AG, 1240AG, and 521. It uses the unused wires in the Category 5 cable (pins 4/5 and 7/8) to supply inline 48-VDC power. Note: Some sources indicate this model supports older 10/100BASE-TX, while others suggest newer PoE standards like 802.3af/at/bt supporting up to 60W, which may refer to a similarly named, but technically different, newer model (AIR-PWRINJ3=). Based on the primary results for AIR-PWRINJ3, the output power is 15W and interfaces are 10/100BASE-TX.
Specifications
| Device Type | PoE injector - external |
|---|---|
| Input Ports | 1 x RJ-45 10/100BASE-TX (Data In) |
| Output Ports | 1 x RJ-45 10/100BASE-TX (Data + Power Out) |
| Output Power | 15W |
| Input Voltage | 48V DC (From external supply) or 100-240V AC (Input for AC adapter) |
| Interlockable | Yes |
| Output Voltage | 48V DC |
| Power Injection Method | Injects power into unused pairs (pins 4/5 and 7/8) |
| Max Operating Temperature | 104 °F (40 °C) |
| Min Operating Temperature | 32 °F (0 °C) |
| Warranty | Lifetime Warranty (for refurbished unit at one source) or 1 Year (for new unit at another source). |
| Weight | 2.00 LBS (Refurbished listing) or 0.9 lbs (for AIR-PWRINJ3=) |
| Dimensions | 5.4 in. x 2.1 in. x 1.3 in. (or 5.5" x 2.1" x 1.4") |
Key Features
The Cisco Aironet AIR-PWRINJ3 is an external Power over Ethernet (PoE) injector that provides 48V DC power and data over a single Ethernet cable to compatible Cisco Aironet Access Points and Bridges, eliminating the need for local AC power outlets near the AP. It is rated for up to 15W output and features 10/100BASE-TX ports.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco Aironet AIR-PWRINJ3 Power Injector (AIR-PWRINJ3) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco Aironet AIR-PWRINJ3 Power Injector includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco Aironet AIR-PWRINJ3 Power Injector compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-PWRINJ3.
