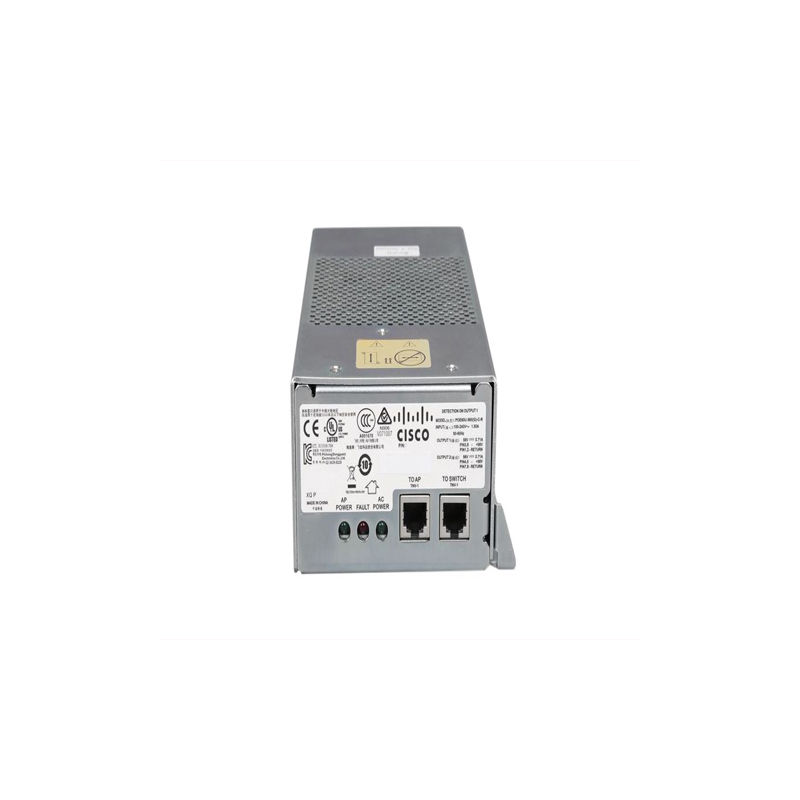

Cisco Aironet Series Power Injector AIR-PWRINJ1500-2
Brand: Cisco · SKU: AIR-PWRINJ1500-2 · MPN: AIR-PWRINJ1500-2 · Category: Networking
The Cisco Aironet AIR-PWRINJ1500-2 Power over Ethernet (PoE) Injector increases wireless LAN deployment flexibility of an access point by combining 56V DC power with the data signal and sending both to the connected access point. It is designed to deliver power and data to Cisco Aironet 1520 Series outdoor wireless access points over a single Ethernet cable. It is a dual-port PoE injector built to support IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt standards by delivering a regulated 48V output within a robust input range of 100–240V AC. It features integrated surge protection and compatibility with both unmanaged and managed switches. The AIR-PWRINJ1500-2 is officially EOL (End-of-Life) with service support ending on 2027-01-31.
Specifications
| Ports | 2 RJ-45 Ports (Dual-port) |
|---|---|
| Data Rate | 10/100/1000 Mbps |
| Input Voltage | 100 to 240 VAC |
| Output Voltage | 56.0 VDC or 48V |
| Maximum Current | 1.43 A |
| Surge Protection | Yes |
| Compatible AP Series | Cisco Aironet 1520 Series |
| Operating Temperature | -40 to 131 degrees F (-40 to 55 degrees C) or 0–40°C (varies by source) |
| PoE Standard Supported | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Warranty | 365 days (New) or 90-Day Limited Hardware Warranty (varies by seller) |
| Weight | 5.25 LBS (Approximate) or 2.631 kg |
| Dimensions | Length: 8 in.(20.3 cm); Width: 4.25 in.(10.8 cm); Height: 2.5 in. (6.3 cm) |
Key Features
The Cisco AIR-PWRINJ1500-2 is a power injector designed to increase wireless LAN deployment flexibility by combining 56-VDC power with the data signal and sending both over a single Ethernet cable to connected access points, specifically the Cisco Aironet 1520 Series outdoor wireless access points. It supports multiple PoE standards and features integrated surge protection.
Technical Deployment Advisory
Target Personnel
Spine-Leaf Architects
Infrastructure Fit
Core Aggregation Layer
"Spine-Leaf Architects should consider the AIR-PWRINJ1500-2 for Core Aggregation Layer where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco Aironet Series Power Injector AIR-PWRINJ1500-2 (AIR-PWRINJ1500-2) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco Aironet Series Power Injector AIR-PWRINJ1500-2 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco Aironet Series Power Injector AIR-PWRINJ1500-2 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-PWRINJ1500-2.
