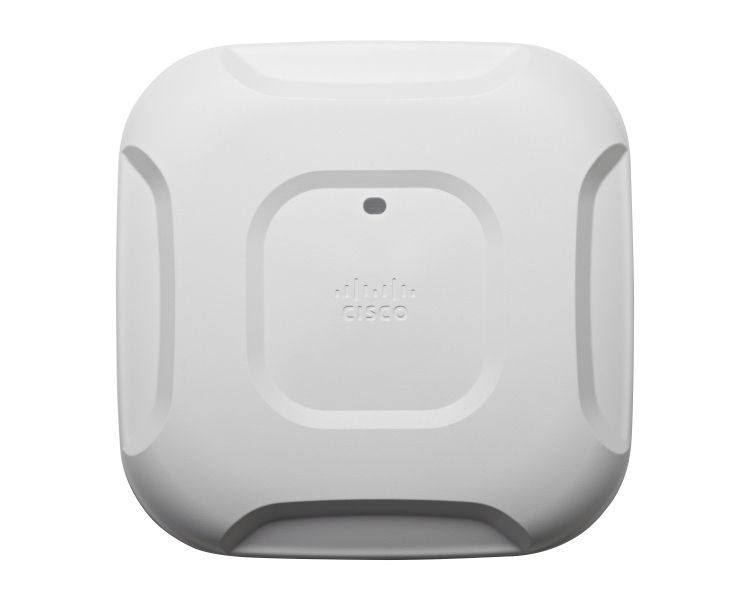

AIR-CAP3702I-H-K9, Cisco Aironet 3700 Access Point, 802.11ac/4x4 MIMO/Internal Antenna
Brand: Cisco · SKU: AIR-CAP3702I-H-K9 · MPN: AIR-CAP3702I-H-K9 · Category: Networking
Cisco Aironet 3700 Series Access Point - 802.11 a/g/n/ac - 2.4GHz - 5GHz - 4*4 MIMO - Control base - Internal antennas - modular architecture
Specifications
| Model | AIR-CAP3702I-H-K9 |
|---|---|
| Weight | 2.2 kg |
| Antenna | 2.4GHz, gain 4 dBi, internal omni, horizontal beamwidth 360° 5GHz, gain 4 dBi, internal omni, horizontal beamwidth 360° |
| Security | 鈼?802.11i, Wi-Fi Protected Access 2 (WPA2), WPA 鈼?nbsp;802.1X 鈼?IEEE 802.11ac Draft 5 鈼?Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) |
| Software | Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers: 鈼?nbsp; 7.6 or later for the Cisco Aironet 3700 Series Access Point 鈼?nbsp; 7.6 or later for support of the Wireless Security Module for the 3700 Series Access Point Cisco IOS XE Software Release: 鈼?nbsp; 3.3.1SE or later for the Cisco Aironet 3700 Series Access Point 鈼?nbsp; Wireless Security Module for the 3700 Series Access Point support – (T arget 1HCY15) |
| Interfaces | 鈼?10/100/1000BASE-T autosensing (RJ-45) 鈼?nbsp; Management console port (RJ-45) |
| Devide Type | Wireless Access point |
| Environmental | 鈼? Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) 鈼?nbsp; Nonoperating (storage) altitude test: 25藲C, 15,000 ft. 鈼?nbsp; Operating temperature: 32° to 104°F (0° to 40°C) 鈼? Operating humidity: 10% to 90% percent (noncondensing) 鈼?nbsp; Operating altitude test: 40藲C, 9843 ft. |
| System memory | 鈼?512MB DRAM 鈼?nbsp; 64MB flash |
| IEEE standards | IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d |
| Module options | Cisco Aironet Wireless Security Module Cisco Universal Small Cell 5310 |
| Power consumption | No external module installed, 4x4:3 on 2.4/5GHz: 16.1 Watts with wireless Security module, 4x4:3 on 2.4/5GHz +WSM: 19.6 Watts No external module installed, 3x3:3 on 2.4/5GHz: 15.4 Watts with wireless Security module, 2x2:2 on 2.4/5GHz +WSM: 15.4 Watts |
| Regulatory domain | H regulatory domain |
| Product Description | Cisco Aironet 3700 Series Access Points with internal antennas |
| Data rates supported | 鈼?802.11a: up to 54Mbps 鈼?nbsp;802.11g: up to 54Mbps |
| Supported wireless LAN controllers | 鈼?Cisco 2500 Series Wireless Controllers, 鈼?Cisco Wireless Controller Module for ISR G2 鈼?nbsp;Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches 鈼?nbsp;Cisco 5500 Series Wireless Controllers 鈼?nbsp;Cisco Flex 7500 Series Wireless Controllers 鈼?nbsp;Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller 鈼?nbsp;Cisco 5760 Wireless LAN Controller 鈼?nbsp;Cisco Catalyst 3850 Series Switches 鈼?nbsp;Cisco Catalyst 3650 Series Switches |
| Maximum number of nonoverlapping channels | 5GHz 鈼?nbsp; 802.11a: 鈼?nbsp; 20MHz: 21 鈼?nbsp; 802.11n: 鈼?nbsp; 20MHz: 21 鈼?nbsp; 40MHz: 9 鈼?nbsp; 802.11ac: 鈼?nbsp; 20MHz: 21 鈼?nbsp; 40MHz: 9 鈼?nbsp; 80MHz: 4 鈼?802.11n on 2.4GHz: up to 216.7Mbps 鈼?nbsp;802.11ac on 5GHz: up to 1.3Gbps 2.4GHz 鈼?nbsp; 802.11b/g: 鈼?nbsp; 20MHz: 3 鈼?nbsp; 802.11n: 鈼?nbsp; 20MHz: 3 |
| Frequency band and 20-MHz operating channels | H (H regulatory domain): 鈼?nbsp;2.412 to 2.472GHz; 13 channels 鈼?5.150 to 5.350GHz; 8 channels 鈼?5.745 to 5.825GHz; 5 channels |
| Extensible Authentication Protocol (EAP) types | 鈼?EAP-Transport Layer Security (TLS) 鈼?nbsp;EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) 鈼?nbsp;Protected EAP (PEAP) v0 or EAP-MSCHAPv2 鈼?EAP-Flexible Authentication via Secure Tunneling (FAST) 鈼?nbsp;PEAP v1 or EAP-Generic Token Card (GTC) 鈼?nbsp;EAP-Subscriber Identity Module (SIM) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-CAP3702I-H-K9, Cisco Aironet 3700 Access Point, 802.11ac/4x4 MIMO/Internal Antenna (AIR-CAP3702I-H-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-CAP3702I-H-K9, Cisco Aironet 3700 Access Point, 802.11ac/4x4 MIMO/Internal Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-CAP3702I-H-K9, Cisco Aironet 3700 Access Point, 802.11ac/4x4 MIMO/Internal Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-CAP3702I-H-K9.
