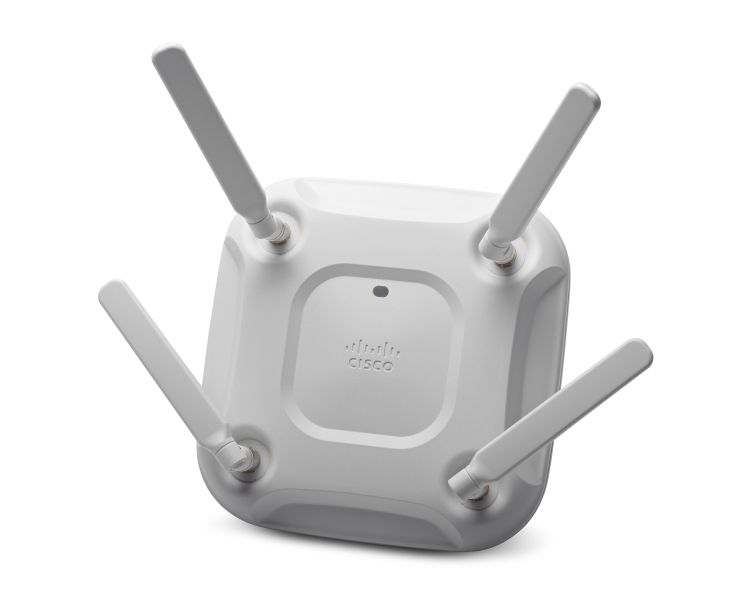

AIR-CAP3702E-H-K9, Cisco Aironet 3700 Series Access Point, 802.11a/g/n/ac/4x4 MIMO/External antennas
Brand: Cisco · SKU: AIR-CAP3702E-H-K9 · MPN: AIR-CAP3702E-H-K9 · Category: Networking
Cisco Aironet 3700 Series Access Point - 802.11 a/g/n/ac - 2.4GHz / 5GHz - 4*4 MIMO - External antennas - Control base - Modular architecture
Specifications
| Model | AIR-CAP3702E-H-K9 |
|---|---|
| Weight | 1.72 kg |
| Antenna | 2.4GHz: 4 dBi gain, internal omni, horizontal beamwidth 360°; 5GHz: 4 dBi gain, internal omni, horizontal beamwidth 360° |
| Security | IEEE 802.11i; WPA2; WPA; IEEE 802.1X; Advanced Encryption Standard (AES); Temporal Key Integrity Protocol (TKIP) |
| EAP Types | EAP-TLS; EAP-Tunneled TLS (EAP-TTLS) / MSCHAPv2; Protected EAP (PEAP) v0 / EAP-MSCHAPv2; EAP-FAST; PEAP v1 / EAP-GTC; EAP-SIM |
| Interfaces | 10/100/1000BASE-T autosensing (RJ-45); Management console port (RJ-45) |
| Device Type | Wireless Access Point |
| Environmental | Nonoperating (storage) temperature: -30°C to 70°C (-22°F to 158°F); Nonoperating (storage) altitude test: 25°C, 15,000 ft; Operating temperature: 0°C to 40°C (32°F to 104°F); Operating humidity: 10% to 90% noncondensing; Operating altitude test: 40°C, 9843 ft |
| System Memory | 512MB DRAM; 64MB flash |
| IEEE Standards | IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d; IEEE 802.11ac Draft 5 |
| Module Options | Cisco Aironet Wireless Security Module; Cisco Universal Small Cell 5310 |
| Power Consumption | No external module installed, 4x4:3 on 2.4/5GHz: 16.1W; With Wireless Security Module, 4x4:3 on 2.4/5GHz + WSM: 19.6W; No external module installed, 3x3:3 on 2.4/5GHz: 15.4W; With Wireless Security Module, 2x2:2 on 2.4/5GHz + WSM: 15.4W |
| Regulatory Domain | H regulatory domain |
| Software (AireOS) | Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers: 7.6 or later for the Cisco Aironet 3700 Series Access Point; 7.6 or later for support of the Wireless Security Module for the 3700 Series Access Point |
| Product Description | Cisco Aironet 3700 Series Access Points with External antennas |
| Data Rates Supported | IEEE 802.11a: up to 54Mbps; IEEE 802.11g: up to 54Mbps; IEEE 802.11n on 2.4GHz: up to 216.7Mbps; IEEE 802.11ac on 5GHz: up to 1.3Gbps |
| Software (Cisco IOS XE) | Cisco IOS XE Software Release: 3.3.1SE or later for the Cisco Aironet 3700 Series Access Point; Wireless Security Module for the 3700 Series Access Point support – (Target 1HCY15) |
| Supported Wireless LAN Controllers | Cisco 2500 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches; Cisco 5500 Series Wireless Controllers; Cisco Flex 7500 Series Wireless Controllers; Cisco 8500 Series Wireless Controllers; Cisco Virtual Wireless Controller; Cisco 5760 Wireless LAN Controller; Cisco Catalyst 3850 Series Switches; Cisco Catalyst 3650 Series Switches |
| Maximum Nonoverlapping Channels (5 GHz) | 802.11a 20MHz: 21; 802.11n 20MHz: 21, 40MHz: 9; 802.11ac 20MHz: 21, 40MHz: 9, 80MHz: 4 |
| Maximum Nonoverlapping Channels (2.4 GHz) | 802.11b/g 20MHz: 3; 802.11n 20MHz: 3 |
| Frequency Band and 20 MHz Channels (H Domain) | 2.412–2.472GHz: 13 channels; 5.150–5.350GHz: 8 channels; 5.745–5.825GHz: 5 channels |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-CAP3702E-H-K9, Cisco Aironet 3700 Series Access Point, 802.11a/g/n/ac/4x4 MIMO/External antennas (AIR-CAP3702E-H-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-CAP3702E-H-K9, Cisco Aironet 3700 Series Access Point, 802.11a/g/n/ac/4x4 MIMO/External antennas includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-CAP3702E-H-K9, Cisco Aironet 3700 Series Access Point, 802.11a/g/n/ac/4x4 MIMO/External antennas compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-CAP3702E-H-K9.
