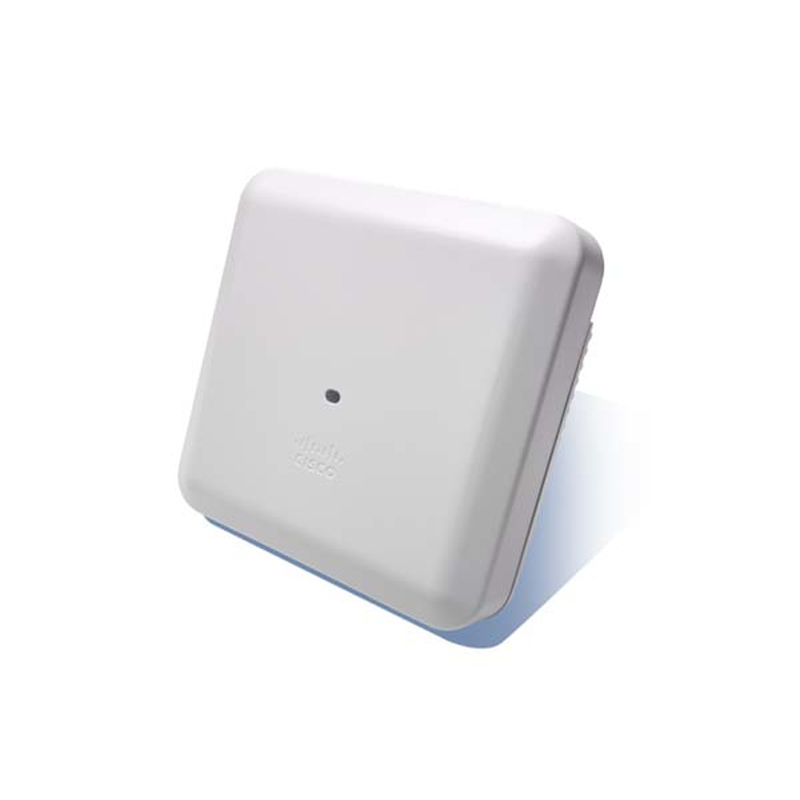

AIR-AP3802I-C-K9C, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO, CleanAir, mGig
Brand: Cisco · SKU: AIR-AP3802I-C-K9C · MPN: AIR-AP3802I-C-K9C · Category: Networking
802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, C Regulatory Domain, Configurable
Specifications
| Model | AIR-AP3802I-C-K9C |
|---|---|
| Indicators | Status LED for boot loader, association, operation, warnings, errors |
| Interfaces | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45, IEEE 802.3bz); CAT 5e cabling; 10GBASE-T (CAT 6/6a); 100/1000BASE-T autosensing (RJ-45 AUX); management console port (RJ-45) |
| Power Draw | 30W at PSE (all features except USB 2.0 enabled); 34W at PSE (USB 2.0 enabled) |
| Environmental | 3800i: Storage Temp -30°C to 70°C, Operating Temp 0°C to 40°C, Non-operating Altitude 15,000 ft (25°C), Operating Altitude 9,843 ft (40°C), Humidity 10%–90% (non-condensing) 3800e/3800p: Storage Temp -30°C to 70°C, Operating Temp -20°C to 50°C, Non-operating Altitude 15,000 ft (25°C), Operating Altitude 9,843 ft (40°C), Humidity 10%–90% (non-condensing) |
| System Memory | 1024 MB DRAM, 256 MB flash |
| Integrated Antenna | Flexible radio: 2.4 GHz, gain 4 dBi, omnidirectional (azimuth); 5 GHz, gain 6 dBi, directional, 90° elevation beamwidth. Dedicated 5-GHz radio: 5 GHz, gain 5 dBi, omnidirectional (azimuth). |
| 802.11n Capabilities | 4x4 MIMO, three spatial streams, maximal ratio combining (MRC), 802.11n and 802.11a/g beamforming, 20-/40-MHz channels, PHY rates up to 450 Mbps (40 MHz, 5 GHz), A-MPDU/A-MSDU (Tx/Rx), dynamic frequency selection (DFS), cyclic shift diversity (CSD) |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm) |
| Smart Antenna Connector | Available on 3802e/3802p only. Requires AIR-CAB002-DART-R= cable to connect RP-TNC antennas. Needed for flexible radio as second 5-GHz serving radio or for wireless security monitoring radio. |
| External Antenna Support | 3802e Series: up to 6 dBi (2.4/5 GHz); 3802p Series: up to 13 dBi (2.4/5 GHz) with AIR-ANT2513-P4M-N=. Cisco offers a broad selection for different scenarios. |
| Input Power Requirements | 802.3at PoE+, Cisco Universal Power over Ethernet (UPOE), 802.3at power injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO, three spatial streams, MRC, 802.11ac beamforming, 20-/40-/80-MHz channels, PHY rates up to 1.3 Gbps (80 MHz, 5 GHz), A-MPDU/A-MSDU (Tx/Rx), DFS, CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO, three spatial streams, MRC, 802.11ac beamforming, 20-/40-/80-/160-MHz channels, PHY rates up to 5.2 Gbps, A-MPDU/A-MSDU (Tx/Rx), DFS, CSD support |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later; Cisco 2500 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches; Cisco 5500 Series Wireless Controllers; Cisco Flex 7500 Series Wireless Controllers; Cisco 8500 Series Wireless Controllers; Cisco Virtual Wireless Controller; Cisco IOS XE Software Release 16.3 (Target Q3 CY2016); Cisco Catalyst 3850/3650 Series Switches |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP3802I-C-K9C, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO, CleanAir, mGig (AIR-AP3802I-C-K9C) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP3802I-C-K9C, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO, CleanAir, mGig includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP3802I-C-K9C, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO, CleanAir, mGig compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP3802I-C-K9C.
