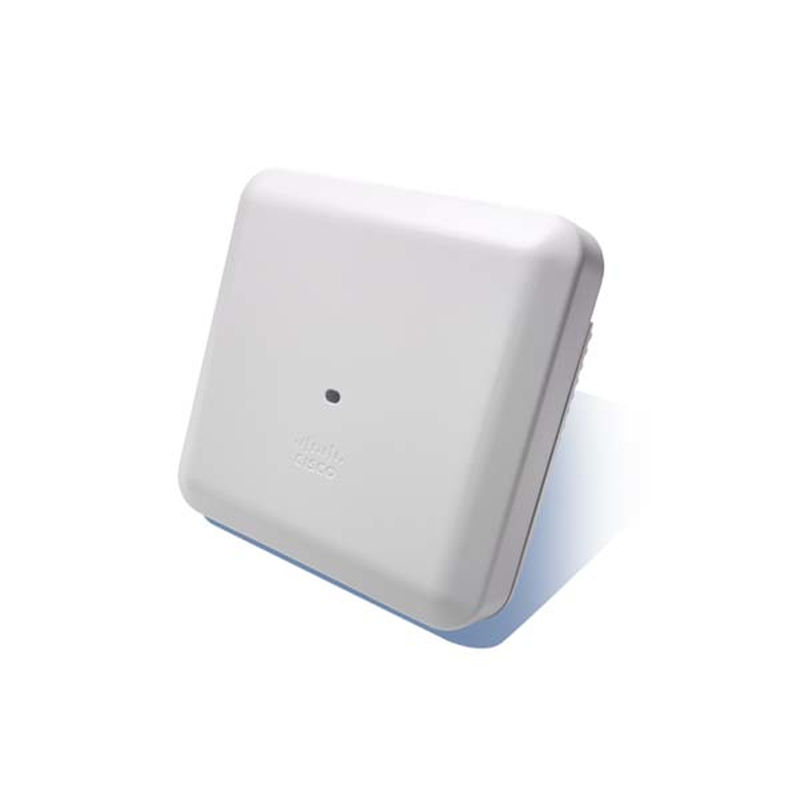

AIR-AP3802I-AK910C, Cisco AIR-AP3800 Series Access Point, 802.11ac Wave 2/4x4:3 MU-MIMO/Multigigabit/Int. Antenna
Brand: Cisco · SKU: AIR-AP3802I-AK910C · MPN: AIR-AP3802I-AK910C · Category: Networking
802.11ac Wave 2 10 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, A Regulatory Domain, Configurable
Specifications
| Model | AIR-AP3802I-AK910C |
|---|---|
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and errors |
| Interfaces | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45), IEEE 802.3bz; CAT 5e cabling; 10GBASE-T (CAT 6/6a) cabling; 100/1000BASE-T autosensing (RJ-45 AUX port); Management console port (RJ-45) |
| Power Draw | 30W at PSE with all features enabled except USB 2.0 port; 34W at PSE with USB 2.0 port enabled |
| Environmental | Cisco Aironet 3800i: Storage temp -30°C to 70°C (-22°F to 158°F), operating temp 0°C to 40°C (32°F to 104°F), humidity 10% to 90% (noncondensing), operating altitude 40°C, 9843 ft (3000 m). Cisco Aironet 3800e/3800p: Storage temp -30°C to 70°C (-22°F to 158°F), operating temp -20°C to 50°C (-4°F to 122°F), humidity 10% to 90% (noncondensing), operating altitude 40°C, 9843 ft (3000 m) |
| System Memory | 1024 MB DRAM; 256 MB flash |
| Integrated Antenna | Flexible radio (2.4 GHz or 5 GHz): 2.4 GHz, gain 4 dBi, internal omnidirectional antenna; 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°. Dedicated 5-GHz radio: 5 GHz, gain 5 dBi, internal omnidirectional antenna |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm) |
| Smart Antenna Connector | Available on 3802e and 3802p Series only; requires AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC; needed when flexible radio functions as second 5-GHz serving radio or wireless security monitoring radio |
| Input Power Requirements | 802.3at PoE+; Cisco Universal Power over Ethernet (UPOE®); 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO with three spatial streams; MRC; 802.11ac beamforming; 20-, 40-, and 80-MHz channels; PHY data rates up to 1.3 Gbps (80 MHz, 5 GHz); Packet aggregation A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO with three spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, 160-MHz channels; PHY data rates up to 5.2 Gbps; Packet aggregation A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support |
| 802.11n Version 2.0 Capabilities | 4x4 MIMO with three spatial streams; Maximal ratio combining (MRC); 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; PHY data rates up to 450 Mbps (40 MHz, 5 GHz); Packet aggregation A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; Cyclic shift diversity (CSD) support |
| External Antenna (Sold Separately) | 3802e Series certified for antenna gains up to 6 dBi (2.4 GHz and 5 GHz); 3802p Series certified for antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with AIR-ANT2513-P4M-N=; Cisco offers a broad antenna selection for optimal coverage |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later; Cisco 2500 Series Wireless Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series, 5500 Series Wireless Controllers, Flex® 7500 Series Wireless Controllers, 8500 Series Wireless Controllers, Virtual Wireless Controller; Cisco IOS® XE Software Release 16.3 – Target Q3 CY2016; Cisco Catalyst 3850 Series and 3650 Series Switches |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP3802I-AK910C, Cisco AIR-AP3800 Series Access Point, 802.11ac Wave 2/4x4:3 MU-MIMO/Multigigabit/Int. Antenna (AIR-AP3802I-AK910C) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP3802I-AK910C, Cisco AIR-AP3800 Series Access Point, 802.11ac Wave 2/4x4:3 MU-MIMO/Multigigabit/Int. Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP3802I-AK910C, Cisco AIR-AP3800 Series Access Point, 802.11ac Wave 2/4x4:3 MU-MIMO/Multigigabit/Int. Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP3802I-AK910C.
