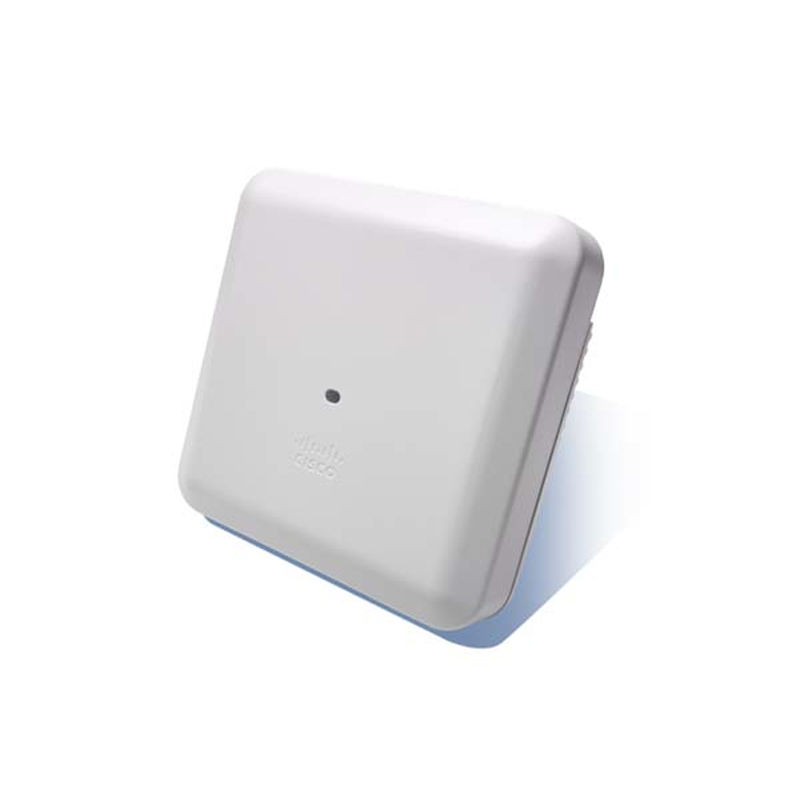

AIR-AP3802I-AK910, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO, 802.11ac Wave 2, Internal Antenna

Brand: Cisco · SKU: AIR-AP3802I-AK910 · MPN: AIR-AP3802I-AK910 · Category: Networking

AIR-AP3802I-AK910, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO, 802.11ac Wave 2, Internal Antenna
$24,098.48
In Stock • 10 units

802.11ac Wave 2 10 AP w/CleanAir, 4x4:3, Internal Antenna, mGig, A Regulatory Domain

View Wireless APs Products

Specifications

ModelAIR-AP3802I-AK910
IndicatorsStatus LED: Boot loader status, association status, operating status, boot loader warnings, boot loader errors
Interfaces2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz; CAT 5e cabling; 10GBASE-T (CAT 6/6a) cabling supported; 100/1000BASE-T autosensing (RJ-45 - AUX port); Management console port (RJ-45)
Power Draw30W at the PSE with all features enabled except USB 2.0 port; 34W at the PSE with USB 2.0 port enabled
System Memory1024 MB DRAM; 256 MB flash
Integrated AntennaFlexible radio (2.4 GHz or 5 GHz): 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°. Dedicated 5-GHz radio: 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
802.11n Capabilities4x4 MIMO with three spatial streams; Maximal ratio combining (MRC); 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; PHY data rates up to 450 Mbps (40 MHz with 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); Dynamic Frequency Selection (DFS); Cyclic shift diversity (CSD)
Environmental (3800i)Storage temperature: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 4572 m (15,000 ft); Operating temperature: 0°C to 40°C (32°F to 104°F); Operating humidity: 10% to 90% (noncondensing); Operating altitude: 40°C, 3000 m (9843 ft)
Dimensions (W x L x H)3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E & 3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm)
Smart Antenna ConnectorAvailable on 3802e and 3802p only; Requires AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC for second antenna; Needed for flexible radio as second 5-GHz serving radio or Wireless Security Monitoring radio
Input Power Requirements802.3at PoE+; Cisco Universal Power over Ethernet (UPOE®); 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=)
802.11ac Wave 1 Capabilities4x4 MIMO with three spatial streams; MRC; 802.11ac beamforming; 20-, 40-, and 80-MHz channels; PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support
802.11ac Wave 2 Capabilities4x4 MU-MIMO with three spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, 160-MHz channels; PHY data rates up to 5.2 Gbps; Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support
Environmental (3800e, 3800p)Storage temperature: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 4572 m (15,000 ft); Operating temperature: -20°C to 50°C (-4°F to 122°F); Operating humidity: 10% to 90% (noncondensing); Operating altitude: 40°C, 3000 m (9843 ft)
External Antenna (Sold Separately)3802e Series: certified up to 6 dBi (2.4 GHz & 5 GHz); 3802p Series: certified up to 13 dBi (2.4 GHz & 5 GHz) with AIR-ANT2513-P4M-N= antenna; Wide range of Cisco antennas for varied deployment scenarios
Software and Supported Wireless LAN ControllersCisco Unified Wireless Network Software Release 8.2.MR1 or later; Cisco 2500 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches; Cisco 5500 Series Wireless Controllers; Cisco Flex® 7500 Series Wireless Controllers; Cisco 8500 Series Wireless Controllers; Cisco Virtual Wireless Controller; Cisco IOS® XE Software Release 16.3 – Target Q3 CY2016; Cisco Catalyst 3850 and 3650 Series Switches
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP3802I-AK910, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO, 802.11ac Wave 2, Internal Antenna (AIR-AP3802I-AK910) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP3802I-AK910, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO, 802.11ac Wave 2, Internal Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP3802I-AK910, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO, 802.11ac Wave 2, Internal Antenna compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP3802I-AK910.
