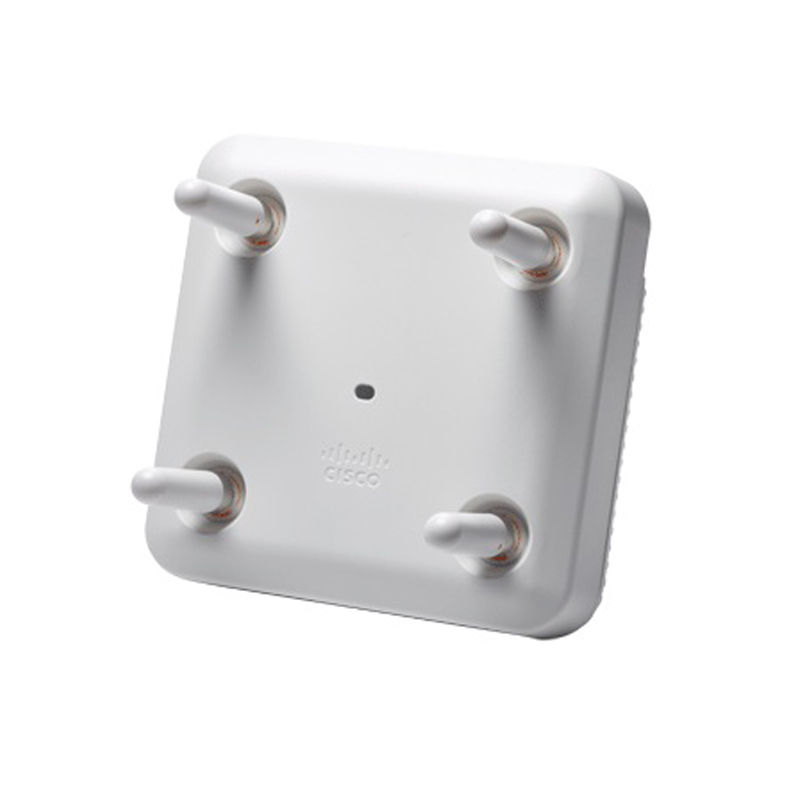

AIR-AP2802E-E-K9C, Cisco AIR-AP2802E, Access Point, 802.11ac Wave 2/4x4:3 MIMO/External Antenna

Brand: Cisco · SKU: AIR-AP2802E-E-K9C · MPN: AIR-AP2802E-E-K9C · Category: Networking

AIR-AP2802E-E-K9C, Cisco AIR-AP2802E, Access Point, 802.11ac Wave 2/4x4:3 MIMO/External Antenna
$587.88
In Stock • 10 units

802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, E Regulatory Domain, Configurable

View Wireless APs Products

Specifications

ModelAIR-AP2802E-E-K9C
SoftwareCisco Unified Wireless Network Software Release 8.2.111.0 or later Cisco IOS XE Software Release 16.3
IndicatorsStatus LED for boot loader, association, and operating status, warnings, and errors
Interfaces2 x 100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45) USB 2.0 (enabled by future software)
Power Draw26 W at the PSE, all features enabled except USB 2.0 port 30 W at the PSE with USB 2.0 port enabled
Description802.11ac Wave 2 AP with CleanAir, 4x4:3, external antenna, E regulatory domain, configurable
EnvironmentalCisco Aironet 2802i: Storage temp: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft Operating temp: 0°C to 40°C (32°F to 104°F); Humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9843 ft Cisco Aironet 2802e: Storage temp: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft Operating temp: -20°C to 50°C (-4°F to 122°F); Humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9843 ft
System Memory1024 MB DRAM 256 MB flash
External Antenna2802e Series certified for antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco offers a broad selection of antennas for various deployment scenarios
Integrated AntennaFlexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz: gain 4 dBi, internal, omnidirectional in azimuth 5 GHz: gain 6 dBi, internal, directional, elevation plane beamwidth 90° Dedicated 5 GHz radio: gain 5 dBi, internal, omnidirectional in azimuth
Dimensions (W x L x H)Access point (without mounting brackets): 2802I: 8.66 in x 8.68 in x 2.17 in 2802E: 8.66 in x 8.77 in x 2.50 in
Smart Antenna ConnectorAvailable only on 2802e Series Requires AIR-CAB002-DART-R= 2 ft connector to RP-TNC to connect second antenna Needed when using flexible radio as a second 5 GHz serving radio or for Wireless Security Monitoring
802.11ac Wave 1 Features4x4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
802.11ac Wave 2 Features4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80-, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Input Power Requirements802.3at PoE+ Cisco Universal PoE (UPOE®) 802.3at power injector (AIR-PWRINJ6=)
802.11n Version 2.0 Features4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS Cyclic shift diversity (CSD) support
Supported Wireless LAN ControllersCisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches, Cisco Mobility Express
Frequency Band and 20-MHz Operating ChannelsE (E regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP2802E-E-K9C, Cisco AIR-AP2802E, Access Point, 802.11ac Wave 2/4x4:3 MIMO/External Antenna (AIR-AP2802E-E-K9C) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP2802E-E-K9C, Cisco AIR-AP2802E, Access Point, 802.11ac Wave 2/4x4:3 MIMO/External Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP2802E-E-K9C, Cisco AIR-AP2802E, Access Point, 802.11ac Wave 2/4x4:3 MIMO/External Antenna compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP2802E-E-K9C.
