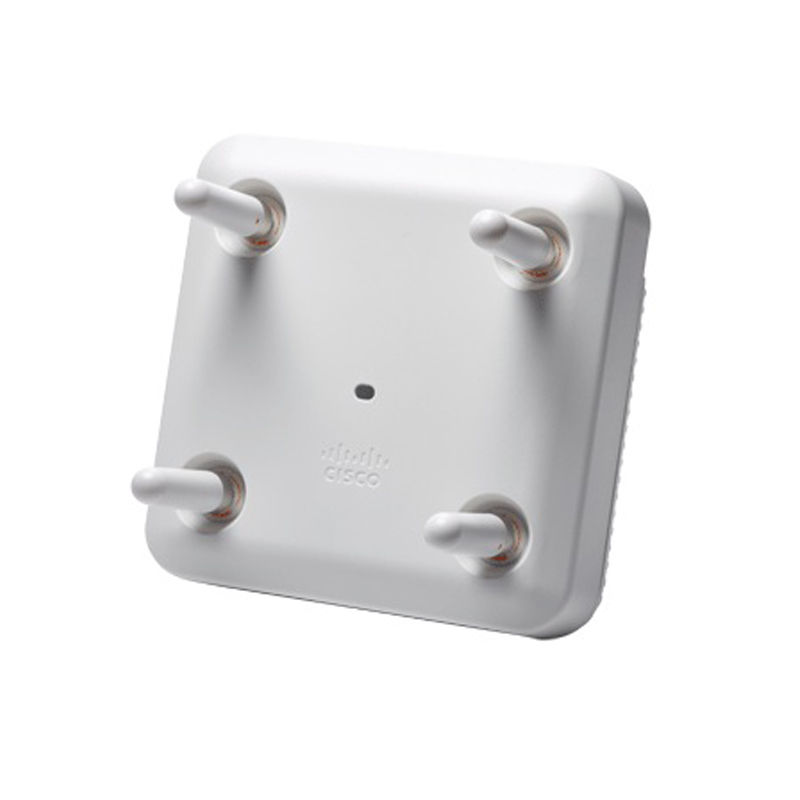

AIR-AP2802E-D-K9, Cisco AIR-AP2800 Series Access Point, 4x4:3 MU-MIMO, External Antenna, 2xGbE
Brand: Cisco · SKU: AIR-AP2802E-D-K9 · MPN: AIR-AP2802E-D-K9 · Category: Networking
802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, 2xGbE, D Regulatory Domain
Specifications
| Model | AIR-AP2802E-D-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later; Cisco IOS ® XE Software Release 16.3 |
| Indicators | Status LED: boot loader status, association, operation, warnings, errors |
| Interfaces | 2 x 100/1000BASE-T autosensing (RJ-45), management console port (RJ-45), USB 2.0 (future software enable) |
| Power Draw | 26W at the PSE (all features except USB enabled), 30W with USB 2.0 port enabled |
| System Memory | 1024 MB DRAM, 256 MB flash |
| Integrated Antenna | Flexible radio (2.4 GHz or 5 GHz): 2.4 GHz gain 4 dBi omnidirectional, 5 GHz gain 6 dBi directional (90° elevation beamwidth). Dedicated 5 GHz radio: gain 5 dBi omnidirectional |
| Environmental (2802e) | Storage temperature: -30°C to 70°C; storage altitude: 15,000 ft at 25°C; operating temperature: -20°C to 50°C; operating humidity: 10% to 90% noncondensing; operating altitude: 9,843 ft at 40°C |
| Environmental (2802i) | Storage temperature: -30°C to 70°C; storage altitude: 15,000 ft at 25°C; operating temperature: 0°C to 40°C; operating humidity: 10% to 90% noncondensing; operating altitude: 9,843 ft at 40°C |
| Dimensions (W x L x H) | 2802I: 8.66 x 8.68 x 2.17 in; 2802E: 8.66 x 8.77 x 2.50 in (without mounting brackets) |
| Smart Antenna Connector | Available only on 2802e. Requires AIR-CAB002-DART-R= (2 ft) smart antenna cable to RP-TNC. Needed for second 5 GHz radio operation or wireless security monitoring radio |
| External Antenna Support | Certified for use with antennas up to 6 dBi gain (2.4 GHz and 5 GHz). Wide selection of Cisco antennas available for various deployment scenarios (antennas sold separately) |
| Input Power Requirements | 802.3at PoE+, Cisco Universal PoE (UPOE®), 802.3at power injector (AIR-PWRINJ6=) |
| 802.11n v2.0 Capabilities | 4x4 MIMO with 3 spatial streams, maximal ratio combining (MRC), 802.11n and 802.11a/g beamforming, 20/40 MHz channels, PHY rate up to 450 Mbps (40 MHz at 5 GHz), packet aggregation (A-MPDU/A-MSDU Tx/Rx), 802.11 DFS, cyclic shift diversity (CSD) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO with 3 spatial streams, MRC, 802.11ac beamforming, 20/40/80 MHz channels, PHY rate up to 1.3 Gbps (80 MHz at 5 GHz), packet aggregation (A-MPDU/A-MSDU Tx/Rx), 802.11 DFS, CSD |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO with 3 spatial streams, MRC, 802.11ac beamforming, 20/40/80/160 MHz channels, PHY rate up to 5.2 Gbps, packet aggregation (A-MPDU/A-MSDU Tx/Rx), 802.11 DFS, CSD |
| Supported Wireless LAN Controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches, Cisco Mobility Express |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP2802E-D-K9, Cisco AIR-AP2800 Series Access Point, 4x4:3 MU-MIMO, External Antenna, 2xGbE (AIR-AP2802E-D-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP2802E-D-K9, Cisco AIR-AP2800 Series Access Point, 4x4:3 MU-MIMO, External Antenna, 2xGbE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP2802E-D-K9, Cisco AIR-AP2800 Series Access Point, 4x4:3 MU-MIMO, External Antenna, 2xGbE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP2802E-D-K9.
