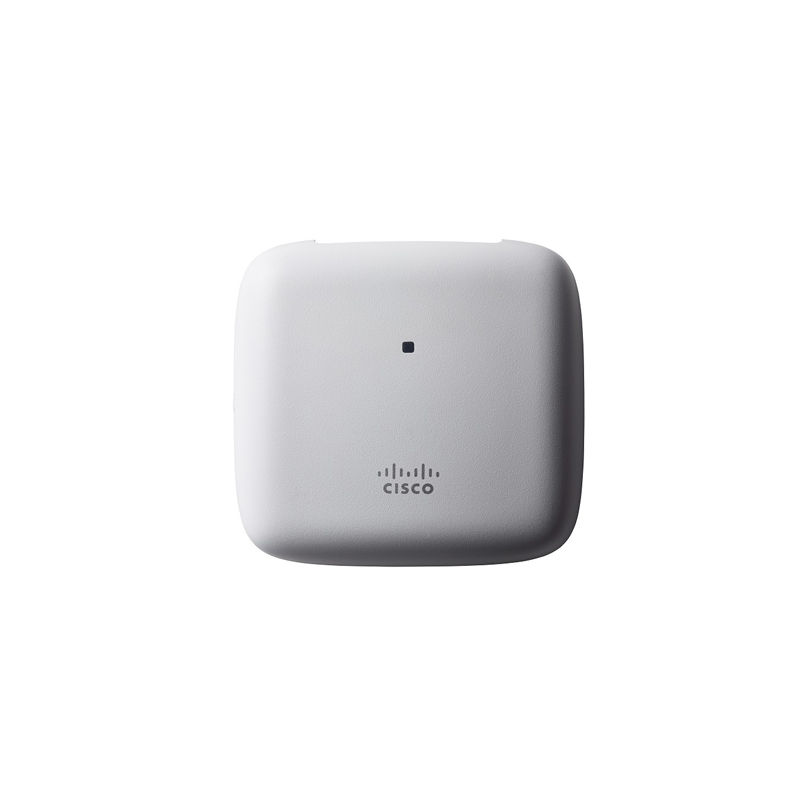

AIR-AP1815I-E-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2/2x2 MIMO/Gigabit Ethernet

Brand: Cisco · SKU: AIR-AP1815I-E-K9 · MPN: AIR-AP1815I-E-K9 · Category: Networking

AIR-AP1815I-E-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2/2x2 MIMO/Gigabit Ethernet
Request for Quote
In Stock • 10 units

Cisco Aironet 1815i Series, Reg Domain E

View Wireless APs Products

Specifications

NoteRegulatory domain/channel availability and maximum power setting will vary. Refer to product documentation for details.
ModelAIR-AP1815I-E-K9
System1 GB DRAM, 256 MB flash, 710 MHz quad core processor
MountingMounting bracket AIR-AP-BRACKET8 included
SoftwareCisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later, Cisco Mobility Express
BluetoothIntegrated Bluetooth 4.1 (BLE), max transmit power 4 dBm, antenna gain 2 dBi
ComplianceSafety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1; Radio: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66/ T71 (Japan), EMI Class B, FCC Part 15.107/15.109, ICES-003, VCCI, EN 301.489-1/-17, EN 50385; IEEE 802.11a/b/g/n/h/d/ac; Security: 802.11i, WPA2, WPA, 802.1X, AES; EAP Types: TLS, TTLS, MSCHAPv2, PEAP v0/v1, GTC, FAST, SIM; Multimedia: Wi-Fi Multimedia (WMM); Other: FCC Bulletin OET-65C, RSS-102
IndicatorsStatus LED indicates boot loader status, association, operating status, warnings, errors
Interfaces1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE); Management console port (RJ-45)
Power Draw8.3 W (maximum, on PoE)
AccessoriesMounting bracket: AIR-AP-BRACKET8= (spare); Physical security kit: AIR-SEC-50= (sold separately), including security screws, RJ-45 caps, unlock keys
EnvironmentalOperating: 0°C to 40°C (32°F to 104°F), humidity 10%-90% non-condensing, max altitude 3000 m @ 40°C; Storage: -30°C to 70°C (-22°F to 158°F), humidity 10%-90% non-condensing, max altitude 4500 m @ 25°C
Ethernet PortsAuthentication with 802.1X or MAC filtered, dynamic VLAN or per port, traffic locally switched or tunneled back to controller
Maximum Clients200 per Wi-Fi radio, total 400 clients per access point
Powering Options802.3af/at Ethernet switch; Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
802.11ac Features2x2 MIMO with two spatial streams, maximal ratio combining (MRC), 20/40/80 MHz channels, PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz), A-MPDU (Tx/Rx), A-MSDU (Rx), 802.11 DFS, cyclic shift diversity (CSD)
Physical SecurityTorx security screw (included)
Integrated Antennas2.4 GHz, gain 2 dBi; 5 GHz, gain 4 dBi
Data Rates Supported802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps; 802.11n (2.4 GHz): up to 144.4 Mbps; 802.11ac (5 GHz): up to 866.7 Mbps (see documentation for detailed MCS values)
Dimensions (W x L x H)6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm) – without mounting bracket
Input Power RequirementsPower injector: AIR-PWRINJ5= or AIR-PWRINJ6=
Supported WLAN ControllersCisco 2500, 3500, 5500, 8500, 9800 Series Wireless Controllers, Cisco Flex 7500, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series, Cisco Mobility Express
Authentication and SecurityAdvanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication, authorization, and accounting (AAA), 802.11r, 802.11i
Available Transmit Power Settings2.4 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.78 mW); 5 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.78 mW). Maximum varies by channel and country regulations.
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP1815I-E-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2/2x2 MIMO/Gigabit Ethernet (AIR-AP1815I-E-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP1815I-E-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2/2x2 MIMO/Gigabit Ethernet includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP1815I-E-K9, Cisco Aironet 1815i Access Point, 802.11ac Wave 2/2x2 MIMO/Gigabit Ethernet compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815I-E-K9.
