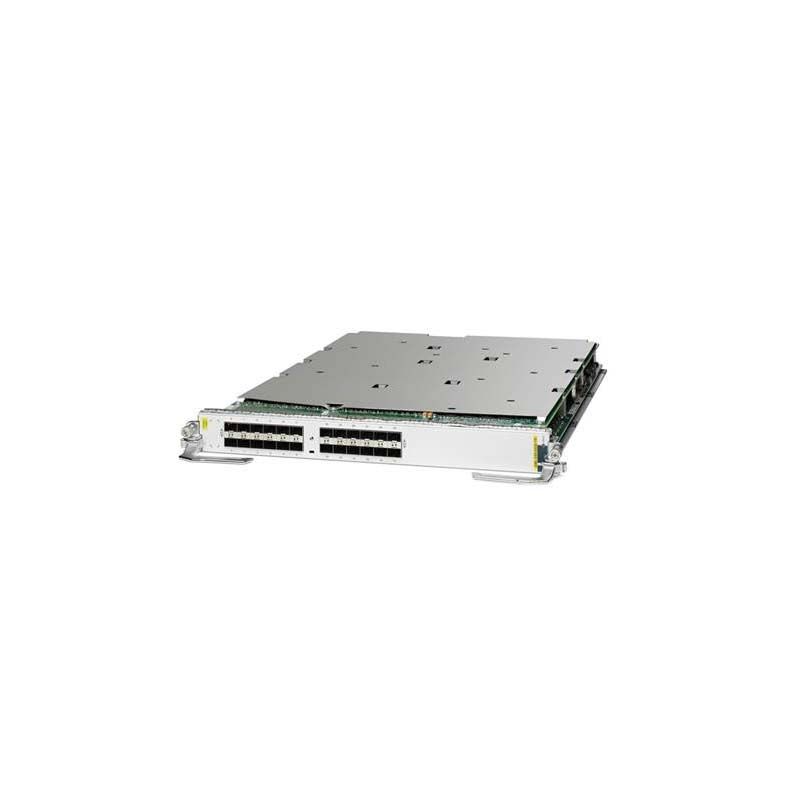

A9K-24X10GE-SE, Cisco ASR 9000 Router Linecard, 24x10GE ports/Service Edge/Spare
Brand: Cisco · SKU: A9K-24X10GE-SE · MPN: A9K-24X10GE-SE · Category: Networking
Cisco ASR 9000 Series Router Ethernet Linecard A9K-24X10GE-SE ASR 9000 24-port 10GE, Service Edge Optimized LC (spare)
Specifications
| Model | A9K-24X10GE-SE |
|---|---|
| Weight | kg |
| Options | Available as Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card |
| Performance | 10 Gbps line-rate throughput per port |
| Port Density | 24 ports of 10 Gigabit Ethernet per line card |
| EMC Standards | FCC Class A; ICES 003 Class A; AS/NZS 3548 Class A; CISPR 22 (EN 55022) Class A; VCCI Class A; BSMI Class A; IEC/EN 61000-3-2 Power Line Harmonics; IEC/EN 61000-3-3 Voltage Fluctuations and Flicker |
| ETSI Standards | EN 300 386 Telecommunications Network Equipment (EMC); ETSI 300 019 Storage Class 1.1; ETSI 300 019 Transportation Class 2.3; ETSI 300 019 Stationary Use Class 3.1; EN 55022 Information Technology Equipment (Emissions); EN 55024 Information Technology Equipment (Immunity); EN 50082-1 / EN 61000-6-1 Generic Immunity Standard |
| NEBS Compliance | SR-3580 NEBS Criteria Levels (Level 3); GR-1089-CORE NEBS EMC and Safety; GR-63-CORE NEBS Physical Protection |
| Installed Weight | 14 lb (6.35 kg) |
| Safety Standards | UL/CSA/IEC/EN 60950-1; IEC/EN 60825 Laser Safety; ACA TS001; AS/NZS 60950; FDA Code of Federal Regulations Laser Safety |
| Storage Humidity | 5 to 95% relative humidity, not to exceed 0.024 kg of water per kg of dry air |
| Ethernet Features | 10 Gbps IEEE 802.3 compliant; 10 Gigabit Ethernet PHY monitoring; IEEE 802.x flow control; full-duplex operation; per-port byte and packet counters for policy drops, oversubscription drops, CRC error drops, packet sizes, and unicast, multicast, and broadcast packets |
| Immunity Standards | IEC/EN 61000-4-2 Electrostatic Discharge Immunity (8 kV contact, 15 kV air); IEC/EN 61000-4-3 Radiated Immunity (10 V/m); IEC/EN 61000-4-4 Electrical Fast Transient Immunity (2 kV power, 1 kV signal); IEC/EN 61000-4-5 Surge AC Port (4 kV CM, 2 kV DM); IEC/EN 61000-4-5 Signal Ports (1 kV); IEC/EN 61000-4-5 Surge DC Port (1 kV); IEC/EN 61000-4-6 Immunity to Conducted Disturbances (10 Vrms); IEC/EN 61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m); IEC/EN 61000-4-11 Voltage dips, short interruptions, and voltage variations |
| Operating Altitude | −60 to 4000 m (up to 2000 m conforms to IEC, EN, UL, and CSA 60950 requirements) |
| Product Description | Cisco ASR 9000 24-Port 10GE Service Edge Optimized Line Card, requires SFP+ optics |
| Storage Temperature | −40 to 158 °F (−40 to 70 °C) |
| Chassis Compatibility | Compatible with the Cisco ASR 9000 Series 22-slot, 10-slot, and 6-slot chassis |
| Operating Humidity (Nominal) | 10 to 85% relative humidity |
| Reliability and Availability | Line card online insertion and removal (OIR) support without system impact |
| Operating Temperature (Nominal) | 41 to 104 °F (5 to 40 °C) |
| Physical Dimensions (H x W x D) | 14 x 1.72 x 20.5 in. (35.56 x 4.37 x 52.07 cm) |
| Operating Temperature (Short-Term) | 23 to 131 °F (−5 to 55 °C). Short-term is not more than 96 consecutive hours and not more than 15 days per year (total 360 hours and no more than 15 occurrences in 1 year). |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this A9K-24X10GE-SE, Cisco ASR 9000 Router Linecard, 24x10GE ports/Service Edge/Spare (A9K-24X10GE-SE) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This A9K-24X10GE-SE, Cisco ASR 9000 Router Linecard, 24x10GE ports/Service Edge/Spare includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the A9K-24X10GE-SE, Cisco ASR 9000 Router Linecard, 24x10GE ports/Service Edge/Spare compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the A9K-24X10GE-SE.
