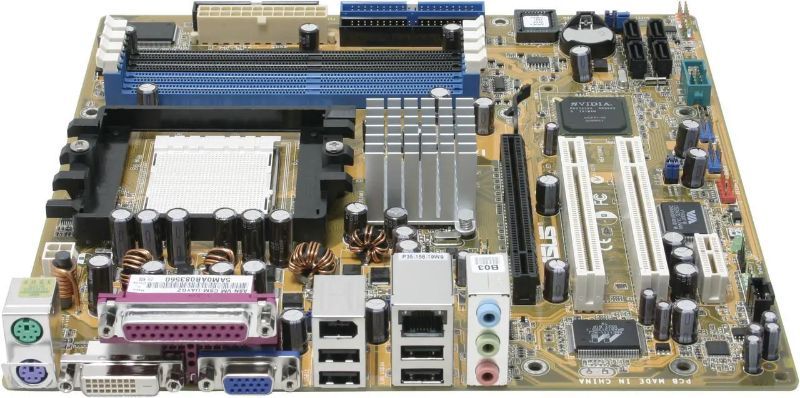

ASUS A8N-VM-CSM Motherboard
Brand: ASUS · SKU: A8N-VM-CSM · MPN: A8N-VM-CSM · Category: Components
The ASUS A8N-VM-CSM is a micro-ATX motherboard designed for AMD Athlon 64/Athlon 64 FX/Athlon 64 X2 processors using the Socket 939 interface. It features the integrated NVIDIA GeForce 6150 + nForce 430 chipset, providing onboard graphics capability and robust system bus support via HyperTransport technology. This board supports dual-channel DDR400/DDR333/DDR266 memory up to 4GB. Expansion is provided by one PCI Express x16 slot, one PCI Express x1 slot, and two PCI slots. Storage options include four Serial ATA I/II 3Gb/s connectors supporting RAID 0, RAID 1, RAID 0+1, and RAID 5 configurations, along with IDE support. Integrated features include NVIDIA Gigabit LAN, ADI AD1986A 6-channel HD Audio, and an IEEE 1394a controller. It supports dual VGA output (DVI-D and RGB) from the integrated GPU. ASUS features like Q-Fan, C.P.R., EZ Flash, and CrashFreeBIOS2 are included for manageability and recovery.
Specifications
| LAN | Gigabit LAN (Marvell 88E1111 PHY) |
|---|---|
| Audio | ADI AD1986A 5.1-channel CODEC (High Definition Audio) |
| Chipset | NVIDIA GeForce 6150 + nForce 430 |
| IEEE 1394 | 1 x IEEE 1394a port |
| USB Ports | 8 x USB 2.0 ports (4 rear, 4 internal) |
| Max Memory | 4GB |
| SATA Ports | 4 x SATA II (3Gb/s) |
| Form Factor | Micro ATX |
| Memory Type | DDR400/DDR333/DDR266 (Non-ECC/ECC, Un-buffered) |
| Memory Slots | 4 x 184-pin DIMM |
| RAID Support | 0, 1, 0+1, 5 |
| Onboard Video | Integrated GeForce 6 GPU |
| Supported CPU | AMD Athlon 64 FX / Athlon 64 X2 / Athlon 64 |
| CPU Socket Type | Socket 939 |
| Expansion Slots | 1 x PCI Express x16, 1 x PCI Express x1, 2 x PCI |
| Warranty | Data Not Found |
| Weight | Data Not Found |
| Dimensions | 9.6" x 9.6" (24.5cm x 24.5cm) |
Key Features
The ASUS A8N-VM-CSM is a business-focused, micro-ATX motherboard built around the Socket 939 platform for AMD Athlon 64 processors. Its key feature is the integrated NVIDIA GeForce 6150 graphics, supporting dual display output via DVI-D and RGB. It is designed for reliable performance in office or budget desktop builds, offering modern I/O like Gigabit LAN and SATA II with RAID support for its time.
