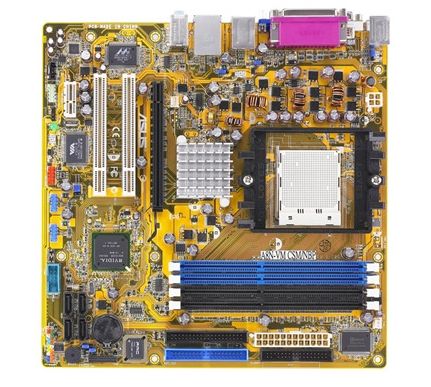

ASUS A8N-VM CSM/NBP Socket 939 micro ATX
Brand: ASUS · SKU: 90-M9B1CK-G0UAYZ · MPN: 90-M9B1CK-G0UAYZ · Category: Components
ASUS A8N-VM CSM/NBP, AMD, Socket 939, 4 GB, ECC & Non-ECC, 0, 1, micro ATX
Specifications
| Depth | 245 mm |
|---|---|
| Width | 245 mm |
| Audio chip | ADI AD1986A |
| RAID levels | 0, 1 |
| TPM connector | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCI Express x16 1 x PCI Express x1 2 x PCI |
| BIOS memory size | 32 Mbit |
| Processor socket | Socket 939 |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 4 |
| Graphics controller | GeForce 6 GPU |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Manageability features | WfM 2.0, DMI 2.0, WOL - PME, WOR - PME |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | micro ATX |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 245 mm |
Product Description
AMD Socket 939 Athlon 64FX/Athlon 64 This motherboard supports AMD 939-pin Athlon 64 FX/ /Athlon 64 X2/Athlon 64 processors which is based on 64-bit architecture. It features 2000 MT/s HyperTransport Bus, dual-channel un-buffered DDR400 memory support and AMD Cool 'n' Quiet! Technology. AMD Cool 'n' Quiet! Technology A8N-VM CSM/NBP supports AMD Cool 'n' Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. Dual-Channel DDR400 Dual-channel DDR technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market. System bottlenecks are eliminated with balanced architecture and peak bandwidths up to 6.4GB/s. NVIDIA GeForce™ 6150B/nForce™ 430 The NVIDIA® GeForce™ 6150B GPU Northbridge supports Microsoft® DirectX 9.0 Shader Model 3.0, dual VGA out (DVI-D and RGB), NVIDIA® PureVideo Technology with unprecedented integrated video quality, and PCI Express interface. The NVIDIA® nForce™ 430 MCP Southbridge delivers NVIDIA® Gigabit LAN with ActiveArmor Firewall for secure networking, and NVIDIA® MediaShield storage management technology allowing easy RAID configuration (RAID 0 and RAID 1) for Serial ATA II. AMD CSIP & NVIDIA Bussiness Platform A8N-VM CSM/NBP has joined AMD CSIP(Commercial Stable Image Platform) program and been certified by NBP(Nvidia Business Platform) program which ensure solid quality and stable drivers for serious business users. Dual VGA output A8N-VM CSMNBP is the first motherboard supporting DVI-D and RGB VGA output together. Users has the flexibility to choose to use either the traditional CRT montior or the latest LCD monitor with DVI interface, or even to use 2 displays to enjoy the benefit of dual display. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming. Gigbit LAN NVIDIA Gb LAN controller delivers transfer speeds up to ten times faster than conventional 10/100 Ethernet connections. Gigabit LAN is the networking standard for the early future and is ideal for handling large amounts of data such as video, audio, and voice. SATA 3Gb/s The A8N-VM CSM/NBP supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. The onboard NVIDIA nForce 430 MCP southbridge allows RAID 0 and RAID 1 configurations for four SATA connectors. 1394a IEEE 1394a interface provides high speed digital interface for audio / video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices. SoundMAX High Definition Audio SoundMAX is the highest performing, most reliable and user-friendly PC audio solution for business professionals, audiophiles, musicians, and gamers. Hear crystal-clear quality from all your audio - MP3 playback, home theatre, advanced gaming, VOIP and more, and never worry - SoundMAX high-definition audio is there to enhance your experience! ASUS Q-Fan Technology Q-Fan intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation. ASUS MyLogo2 Turn your favorite photos into a 256-color boot logo to personalize your system.
Key Features
ASUS A8N-VM CSM/NBP. Processor manufacturer: AMD, Processor socket: Socket 939. Maximum internal memory: 4 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1. Motherboard form factor: micro ATX, Audio output channels: 5.1 channels, Audio chip: ADI AD1986A. BIOS memory size: 32 Mbit
