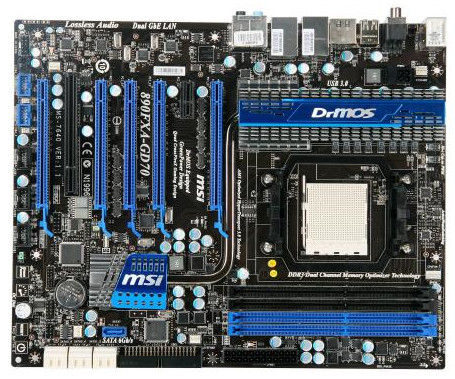

MSI 890FXA-GD70 Socket AM3 ATX
Brand: MSI · SKU: 911-7640-001 · MPN: 911-7640-001 · Category: Components
MSI 890FXA-GD70, AMD, Socket AM3, AMD Sempron, 16 GB, 1.5 V, 0, 1, 10. MSI 890FXA-GD70 Socket AM3 ATX (part number 911-7640-001) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 305 mm, bios type AMI, i/o ports 1 x CMOS button 1 x Coaxial S/PDIF-out 1 x Optical S/PDIF-out 6 x flexible audio, audio chip Realtek ALC889, raid levels 0, 1, 10, tpm connector Yes, lan controller Realtek RTL8111D(L). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| I/O ports | 1 x CMOS button 1 x Coaxial S/PDIF-out 1 x Optical S/PDIF-out 6 x flexible audio |
| Audio chip | Realtek ALC889 |
| RAID levels | 0, 1, 10 |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111D(L) |
| Memory voltage | 1.5 V |
| S/PDIF out port | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| Networking features | Fast Ethernet MAC/PHY |
| PS/2 ports quantity | 2 |
| S/PDIF in connector | Yes |
| PCI Express x1 slots | 1 |
| RAID controller type | AMD SB850 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 5 |
| Number of memory slots | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 245 mm |
Product Description
Features Military Class series products feature top components that offers users the best experience for its unparalleled quality, ultimate efficiency, and the cool & noiseless and safety for its unbeatable stability. Auto OC Genie - Best overclocking capability - Auto-BIOS detection offers the best overclocking configuration - OC Genie enabled, CPU performance 26% up - Increase 148% CPU performance by OC Genie + Unlock CPU Core DrMOS - Excellent energy-saving capability and offers high-computing performance. - Provide superior energy-saving function and maintain an ultimate low temperature operation. - Comes with three incredible features. Unlock CPU Core - Help user to unlock hidden CPU Core quickly - Freely choose lock or unlock CPU Core(s) - Easy to upgrade system performance - Boost CPU performance 104% up APS (Active Phase Switching) - APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. - Saving Power under Variable Loading. - Power Usage More Efficiency. USB 3.0 - Revolutionary SuperSpeed USB 3.0, 10x faster than USB 2.0 - Up to 5Gbps bandwidth, boost data transfer rate between PC and USB device SATAIII - Support next-generation SATAIII, up to 6Gbps bandwidth - Double the data transfer rate of SATAII (3Gbps) Winki 2.0 - Instant Messaging - Web Browser & Photo View - Free Phone Call - Open Office & System Rescue Supported Flat-HeatPipe - Excellent Air Convection - Avoid Mechanical issue - Average temperature lower than “52℃” in high loading OC Dial - Real Time FSB tuning- FSB value change in the BIOS instant! - Unlimited Turning Segments - Easy Use – Just Rotate the knob!!! USB Safeguard - With the ESD dual-current protection chip, USB Safeguard can ideally protect your motherboard from the potential damage caused by static electricity when inserting USB devices. M-Flash - Faster and Flexible and instant - If BIOS crash, it still can boot from USB Drive - Update BIOS from USB Drive by M-Flash Fucntion All Solid Capacitors - Longer lifespan than electrolytic capacitors - Endurable to operation under higher frequency & temperature - Avoid exploding capacitors to cause mainboards failure HI-c CAP on PWM - Hi-c CAP (Highly-conductive polymerized Capacitor) - High voltage derating / heat resistance → higher over-voltage / overclocking possibility - Best stability & long lifespan → Average life 44800 Hrs @ 85℃ chamber Blu-Ray Audio Support - The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc - Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers - support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs M-Connectors - Easy connect to front panel & chassis cable - 2x USB, IEEE 1394, front panel (JFP1/2)& audio(JAUD1) M-connector in the package - Easy to tell the definition of each pin MSI Advanced Live Update Online The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. live_update_4 Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating. CrossFireX Support • Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready. • The ultimate multi-GPU performance gaming platform. • Provides 2.7x faster performance than single graphic card solution. Cool'n'quiet AMD Cool'n'Quiet™ technology that based on famous PowerNow™ technology just brings fresh air to hot-fighting desktop platform. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.
Key Features
MSI 890FXA-GD70. Processor manufacturer: AMD, Processor socket: Socket AM3, Compatible processor series: AMD Sempron. Maximum internal memory: 16 GB, Memory voltage: 1.5 V. RAID levels: 0, 1, 10. LAN controller: Realtek RTL8111D(L), Networking features: Fast Ethernet MAC/PHY. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC889
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI 890FXA-GD70 Socket AM3 ATX (911-7640-001) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI 890FXA-GD70 Socket AM3 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI 890FXA-GD70 Socket AM3 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 911-7640-001.
