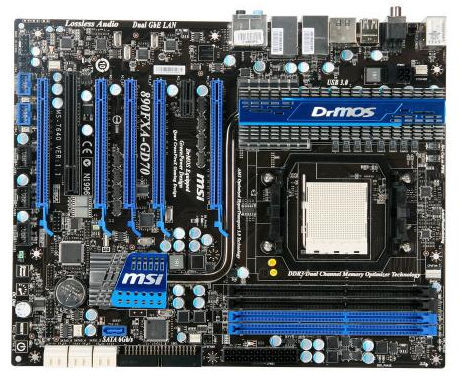

MSI 890FXA-GD70 Socket AM3 ATX
Brand: MSI · SKU: 7640-010R · MPN: 7640-010R · Category: Components
MSI 890FXA-GD70, AMD, Socket AM3, 16 GB, 800,1066,1333 MHz, 0, 1, 10, Realtek RTL8111D(L). MSI 890FXA-GD70 Socket AM3 ATX (part number 7640-010R) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 305 mm, bios type AMI, i/o ports 1 x CMOS 1 x Coaxial S/PDIF-out 1 x Optical S/PDIF-out, audio chip Realtek ALC889, raid levels 0, 1, 10, microphone in Yes, tpm connector Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| I/O ports | 1 x CMOS 1 x Coaxial S/PDIF-out 1 x Optical S/PDIF-out |
| Audio chip | Realtek ALC889 |
| RAID levels | 0, 1, 10 |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111D(L) |
| S/PDIF out port | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| Networking features | Fast Ethernet MAC / PHY |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| PCI Express x1 slots | 1 |
| RAID controller type | AMD SB850 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 5 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 245 mm |
Product Description
Best overclocking capability Auto-BIOS detection offers the best overclocking configuration Optimized for best system performance. Advantages: CPU performance 26% up Increase 148% CPU performance by OC Genie + Unlock CPU Core Unlock CPU Core Boost system performance Help user to unlock hidden CPU Core quickly Freely choose lock or unlock CPU Core(s) Easy to upgrade system performance DrMOS has integrated Driver IC, Top-MOSFET, Bottom-MOSFET GreenPower GreenPower Technology is the Best efficient power saving solution for end-users. XpressCool DrMOS offers lower temperature when it is working. No More Noise!! No More High Speed Fan!! RapidBoost DrMOS delivers the high quality power transfer to bring the “Stable Overclocking Environment”.
Key Features
MSI 890FXA-GD70. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, Supported memory clock speeds: 800,1066,1333 MHz. RAID levels: 0, 1, 10. LAN controller: Realtek RTL8111D(L), Networking features: Fast Ethernet MAC / PHY. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC889
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI 890FXA-GD70 Socket AM3 ATX (7640-010R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI 890FXA-GD70 Socket AM3 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI 890FXA-GD70 Socket AM3 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7640-010R.
