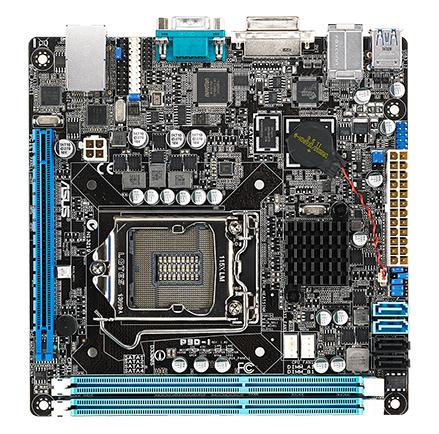

ASUS P9D-I Intel® C222 LGA 1150 (Socket H3) Mini-ITX
Brand: ASUS · SKU: 90SB03I0-M0UAY0 · MPN: 90SB03I0-M0UAY0 · Category: Components
ASUS P9D-I, Intel, LGA 1150 (Socket H3), E3-1200, 2, 4, DDR3-SDRAM, 16 GB. ASUS P9D-I Intel® C222 LGA 1150 (Socket H3) Mini-ITX (part number 90SB03I0-M0UAY0) is an enterprise components product available from Server Tech Central. Key specifications include depth 170 mm, wi-fi No, width 170 mm, user guide Yes, raid levels 0, 1, 5, 10, ethernet lan Yes, certification CE, FCC, component for Server. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 170 mm |
|---|---|
| Wi-Fi | No |
| Width | 170 mm |
| User guide | Yes |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Certification | CE, FCC |
| Component for | Server |
| LAN controller | Intel® I210-AT |
| Processor socket | LGA 1150 (Socket H3) |
| Intel Xeon series | E3-1200 |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 1 |
| Motherboard chipset | Intel® C222 |
| PS/2 ports quantity | 1 |
| Number of DIMM slots | 2 |
| Serial ports quantity | 1 |
| Processor manufacturer | Intel |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 2 |
| Maximum internal memory | 16 GB |
| Motherboard form factor | Mini-ITX |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 170 mm x 170 mm |
Product Description
Optimized Computing and Management Power in Mini-ITX ASUS P9D-I is the mini-ITX form factor serverboard. Despite its diminutive appearance, the P9D-I retains the advantages of other P9D series motherboards including supporting the latest Intel® Xeon® E3-1200 v3 Processor Family with digital power solution and ASMB7 onboard. With the spacing saving advantage, P9D-I is exclusive to meet the diverse applications in small form factor servers, data center, front-end web server (web hosting) and etc. Mini-ITX Compact Form Factor Increases Density As a slim size serverboard, the 6.7” x 6.7” Mini ITX form factor of P9D-I fits for various small form factor appliance servers. In addition, P9D-I can be easily integrated in short depth chassis, thus P9D-I no doubt increases the density in a rack cabinet to provide higher computing power per rack than before. Dual Intel® I210AT Gigabit Ethernet The ASUS P9D-I ships with dual server-class Intel® Ethernet ports with the I210AT controllers, which doubles queues compared to previous-generation Intel® 82574L controllers. This is better for virtualization applications. In addition, the dual LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions. This design greatly reduces data processing bottlenecks during network traffic. High power efficiency with digital power control Digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste and provides more stable voltage. P9D-I power efficiency reaches an impressive 92%. Comprehensive server management: ASMB7-iKVM and ASWM Enterprise The ASMB7-iKVM onboard enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB7 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, and power control, all through a colorful and informative graphical interface.
Key Features
ASUS P9D-I. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Intel Xeon series: E3-1200. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, ECC сompatibility: ECC. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2300, On-board graphics card memory: 32 MB. LAN controller: Intel® I210-AT
