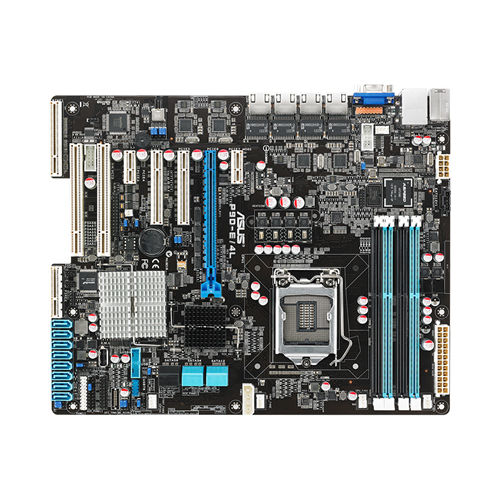

ASUS P9D-E/4L Intel® C224 LGA 1150 (Socket H3) ATX
Brand: ASUS · SKU: 90SB02Z0-M0UAY0 · MPN: 90SB02Z0-M0UAY0 · Category: Components
ASUS P9D-E/4L, Intel, LGA 1150 (Socket H3), E3-1200, 6 GT/s, DDR3-SDRAM, 32 GB. ASUS P9D-E/4L Intel® C224 LGA 1150 (Socket H3) ATX (part number 90SB02Z0-M0UAY0) is an enterprise components product available from Server Tech Central. Key specifications include depth 243.8 mm, wi-fi No, width 304.8 mm, pci slots 2, user guide Yes, raid levels 0, 1, 5, 10, ethernet lan Yes, certification CE C-Tick FCC (B). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 243.8 mm |
|---|---|
| Wi-Fi | No |
| Width | 304.8 mm |
| PCI slots | 2 |
| User guide | Yes |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Certification | CE C-Tick FCC (B) |
| Component for | Server |
| TPM connector | Yes |
| LAN controller | Intel® I210-AT |
| Cables included | SATA |
| Memory channels | Dual-channel |
| System bus rate | 6 GT/s |
| Bundled software | ASWM Enterprise |
| Processor socket | LGA 1150 (Socket H3) |
| Intel Xeon series | E3-1200 |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 1 |
| Motherboard chipset | Intel® C224 |
| PS/2 ports quantity | 1 |
| Serial port headers | 2 |
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 243.8 mm |
Product Description
The most scalable PCI-E expandability, advanced I/O technology The ASUS P9D-E/4L provides industrial leading 3 PCI Express 3.0 x8 slots and one ASUS PIKE support. Along with the ASUS technology, this board presents the most powerful PCI-E expandability ever in UP server boards. The P9D-E/4L server board is built to support up to 4 USB 3.0 ports. Built to connect easily with next generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0. Design to support legacy PCI device applications Besides the latest PCI-E technology, P9D-E/4L keeps the legacy PCI slots on board which can fulfill various customers’ requirements. Customers can move their existing legacy PCI add-on cards to P9D-E/4L, and still benefit from up-to-date Intel Xeon E3-1200 v3 Processor Family and DDR3 memory technology to their solutions. High power efficiency with premium components and digital power control ASUS-exclusive Beat Thermal Chokes and new Dr. MOS (MOSFETs) improve the voltage regulator (VR) power efficiency. The Beat Thermal Chokes handle the pressure with ease, as a unique fin design results in around 4°C lower choke temperatures for added stability, which is increased exponentially by use of highly conductive and efficient gold-treated coating. This translates into minimal-loss power delivery. Besides, with proven stable circuit integrated, Dr. MOS optimizes switching performance. Digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable voltage. The benefits from these components significantly increase P9D-E/4L VR power efficiency up to 94%. Quad Intel I210AT Gigabit Ethernet The ASUS P9D-E/4L ships with quad server-class Intel Ethernet ports with the I210AT controllers, which doubles queues compared to previous-generation Intel 82574L controllers. This is better for virtualization applications. In addition, the quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions. This design greatly reduces data processing bottlenecks during network traffic. Comprehensive server management: ASMB7-iKVM and ASWM Enterprise The ASMB7-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB7 function is based on BIOS-level access, so even if the server’s operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, and power control, all through a colorful and informative graphical interface. SATA DOM (Disk on Module) ready A SATA DOM is a flash drive simulating a hard disc which can be used without additional software or drivers. It is particularly helpful within embedded computing systems or thin clients. ASUS-exclusive design adds an onboard 4-pin power connector and USB header to make SATA DOM installation simple and easy. Friendly Design for front I/O, front VGA An accessible rear power button is reserved onboard for use as front panel ports when reversing the serverboard. An extra 15-pin VGA header features front-panel monitor connectivity, helping customers with greater flexibility. These designs provide flexible I/O integration for users to fit in various computing environments.
Key Features
ASUS P9D-E/4L. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Intel Xeon series: E3-1200. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2300, On-board graphics card memory: 32 MB. USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1, 2
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P9D-E/4L Intel® C224 LGA 1150 (Socket H3) ATX (90SB02Z0-M0UAY0) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P9D-E/4L Intel® C224 LGA 1150 (Socket H3) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P9D-E/4L Intel® C224 LGA 1150 (Socket H3) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90SB02Z0-M0UAY0.
